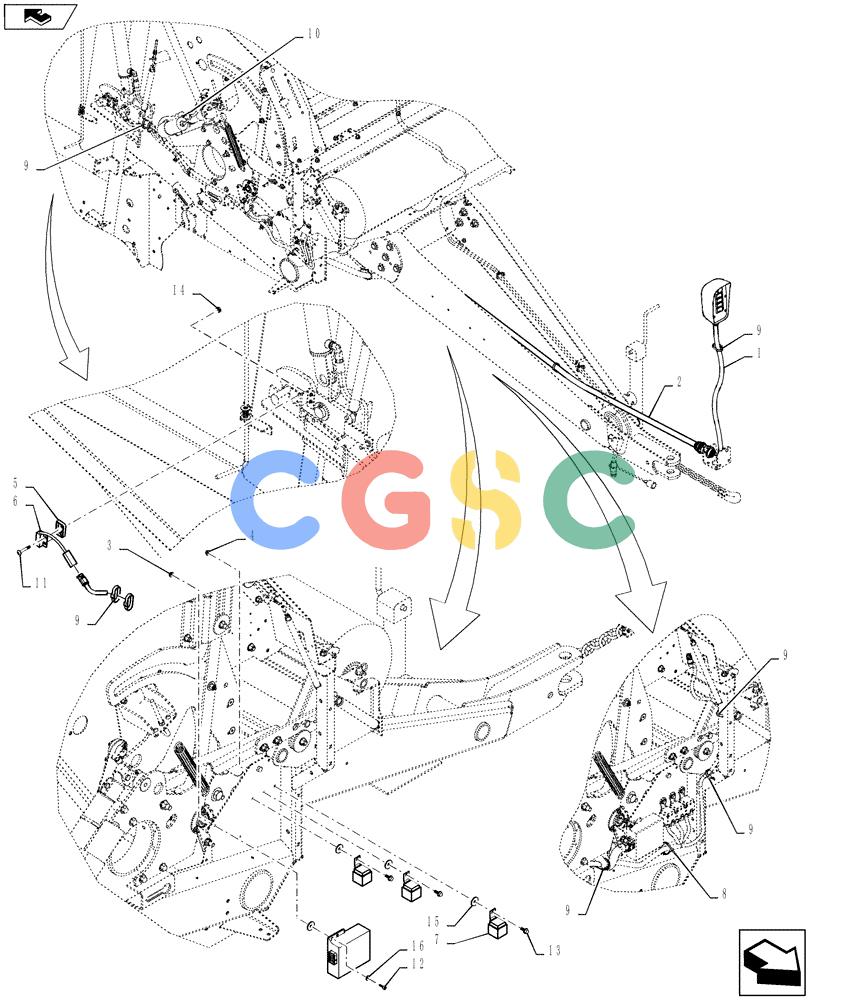

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (55.100.02) - ELECTRONICS, STANDARD NET-TWINE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84258585
|
[1] |
WIRE HARNESS
|
NH
Tractor, Standard Net / Twine
|
| 2. |
84258586
|
[1] |
WIRE HARNESS
|
NH
Baler, Standard Net / Twine
|
| 3. |
86507065
|
[2] |
NUT,M5 x .8, Cl 10
|
WIN
Superseded by part number: 80043416
|
| 4. |
86619800
|
[1] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 5. |
86624468
|
[1] |
SPACER,1.65" L x 5/16” Thk
|
NH
|
| 6. |
86594422
|
[1] |
SENSOR
|
NH
|
| 7. |
82017871
|
[3] |
RELAY,12V, 20A
|
BAS
Superseded by part number: 84411012
|
| 8. |
84292754
|
[1] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 9. |
263117
|
[12] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 10. |
529070
|
[1] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 11. |
86900322
|
[2] |
SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST
|
PA
|
| 12. |
14304221
|
[2] |
HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd
|
LEC
Superseded by part number: 14304220
|
| 13. |
9804255
|
[3] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 14. |
86900323
|
[2] |
NUT,#10 - 24
|
PA
|
| 15. |
319725A1
|
[1] |
RUBBER WASHER
|
CAS
|
| 16. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
