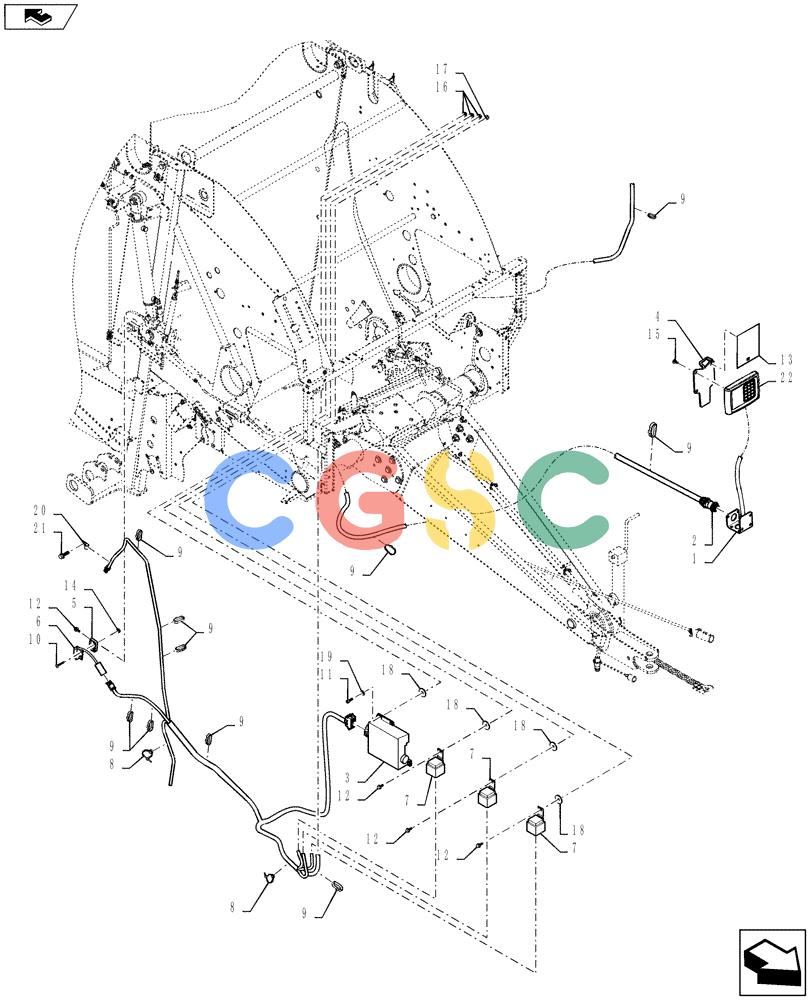

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (55.100.04) - ELECTRONICS, DELUXE TWINE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84261075
|
[1] |
WIRE HARNESS
|
NH
Tractor, Deluxe Twine
|
| 2. |
84261077
|
[1] |
WIRE HARNESS
|
NH
Baler, Deluxe Twine
|
| 3. |
84306560
|
[1] |
ECU
|
NH
|
| 4. |
84385021
|
[1] |
MOUNTING PLATE
|
NH
|
| 5. |
86624468
|
[1] |
SPACER,1.65" L x 5/16” Thk
|
NH
|
| 6. |
86594422
|
[1] |
SENSOR
|
NH
|
| 7. |
82017871
|
[3] |
RELAY,12V, 20A
|
BAS
Superseded by part number: 84411012
|
| 9. |
263117
|
[16] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 10. |
86900322
|
[2] |
SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST
|
PA
|
| 11. |
14304221
|
[2] |
HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd
|
LEC
Superseded by part number: 14304220
|
| 12. |
9804255
|
[3] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 13. |
84340978
|
[1] |
INSTRUCTION
|
NH
|
| 14. |
86900323
|
[2] |
NUT,#10 - 24
|
PA
|
| 15. |
87742364
|
[4] |
SCREW,Pan Torx, M6 x 16mm, Cl 8.8
|
BRR
|
| 16. |
86619800
|
[3] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 17. |
86507065
|
[2] |
NUT,M5 x .8, Cl 10
|
WIN
Superseded by part number: 80043416
|
| 18. |
319725A1
|
[5] |
RUBBER WASHER
|
CAS
|
| 19. |
9824326
|
[2] |
WASHER,5.3mm ID x 10mm OD x 1mm Thk
|
NH
|
| 20. |
858956
|
[1] |
CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 22. |
84185963
|
[1] |
CONSOLE
|
PA
Superseded by part number: 47439776
|
