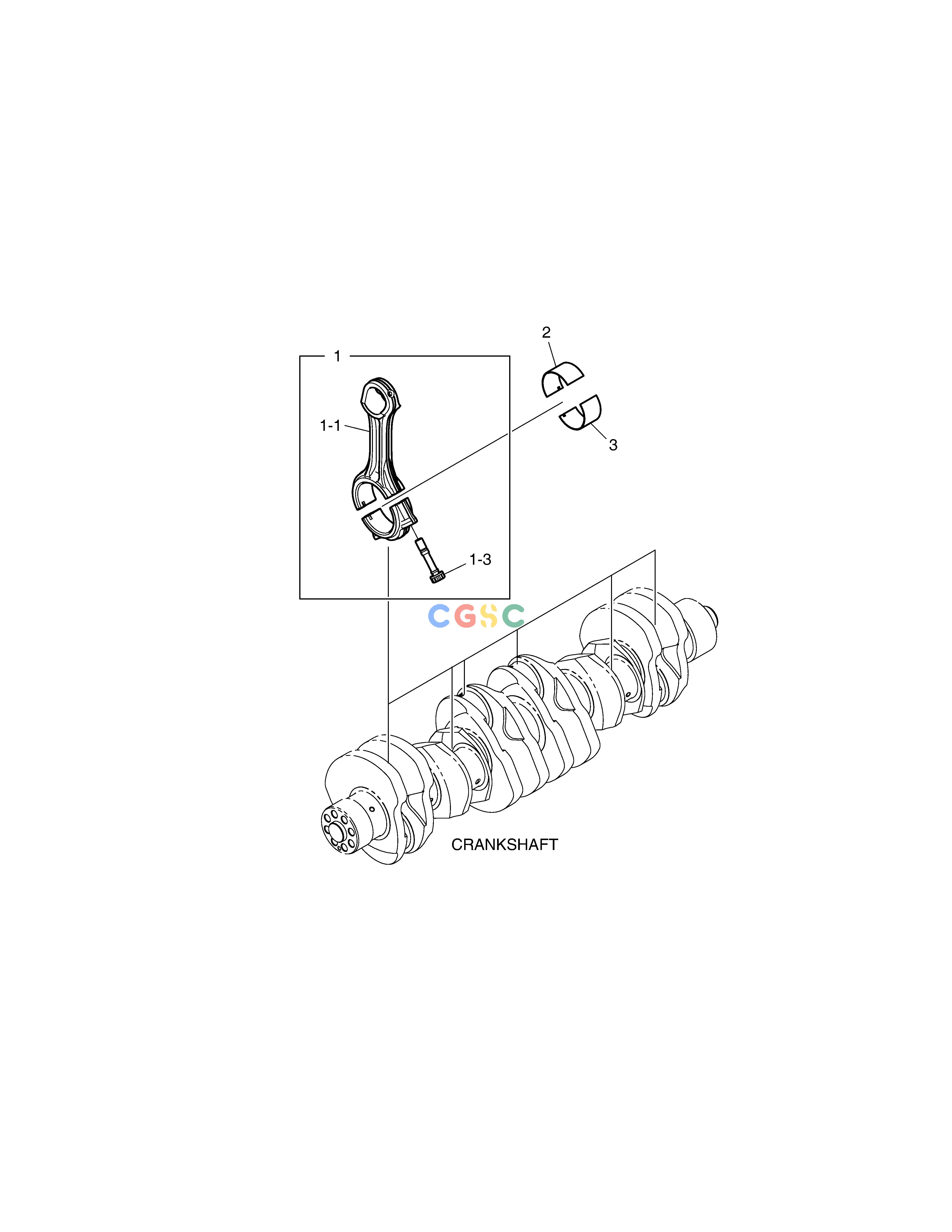

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02401-6035
|
[6] |
|
150121-00268
|
| 1. |
150121-00268
|
[6] |
|
150121-00268A
|
| 1. |
150121-00268A
|
[6] |
|
|
| 1-1. |
65.02401-0019B
|
[1] |
|
|
| 1-3. |
65.02411-0009
|
[2] |
. BOLT;CONNECTING ROD
|
|
| 2. |
65.02410-0040
|
[6] |
METAL;CON-ROD(STD)
|
|
| 2. |
65.02410-0041
|
[6] |
METAL;CON-ROD(0.25)
|
|
| 2. |
65.02410-0042
|
[6] |
METAL;CON-ROD(0.50)
|
|
| 3. |
65.02410-0050
|
[6] |
METAL;CON-ROD(STD)
|
|
| 3. |
65.02410-0051
|
[6] |
METAL;CON-ROD(0.25)
|
|
| 3. |
65.02410-0052
|
[6] |
METAL;CON-ROD(0.50)
|
|
