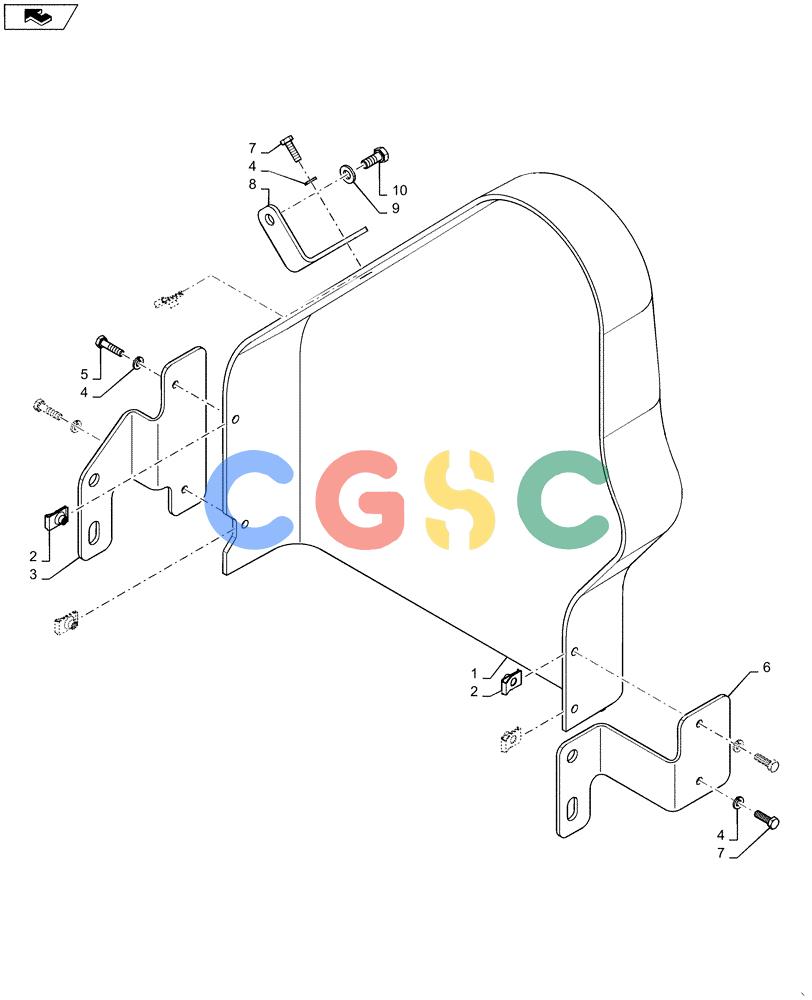

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.102.AN[01]) - GUARD - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84420179 | [1] | GUARD | BUREngine Accessory With Ac |
| 2. | 833-40306 | [5] | SPRING NUT,M6, U | CASSpring Superseded by part number: 87016585 |
| 3. | 84420175 | [1] | BRACKET | BUREngine Guard Lh |
| 4. | 892-11006 | [5] | LOCK WASHER,M6 | CASSpring Superseded by part number: 86517328 |
| 5. | 627-6025 | [2] | BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd | SUM Superseded by part number: 86639038, 87780636 |
| 6. | 84420173 | [1] | BRACKET | BUREngine Guard Rh |
| 7. | 627-6020 | [3] | BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86505530 |
| 8. | 47359783 | [1] | BRACKET | BUREngine Guard Top |
| 9. | 87713131 | [1] | SPECIAL WASHER | BURM8 X 8.80 X 17.5 X 2.2 HTS Boron |
| 10. | 16043421 | [1] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 16043424 |
