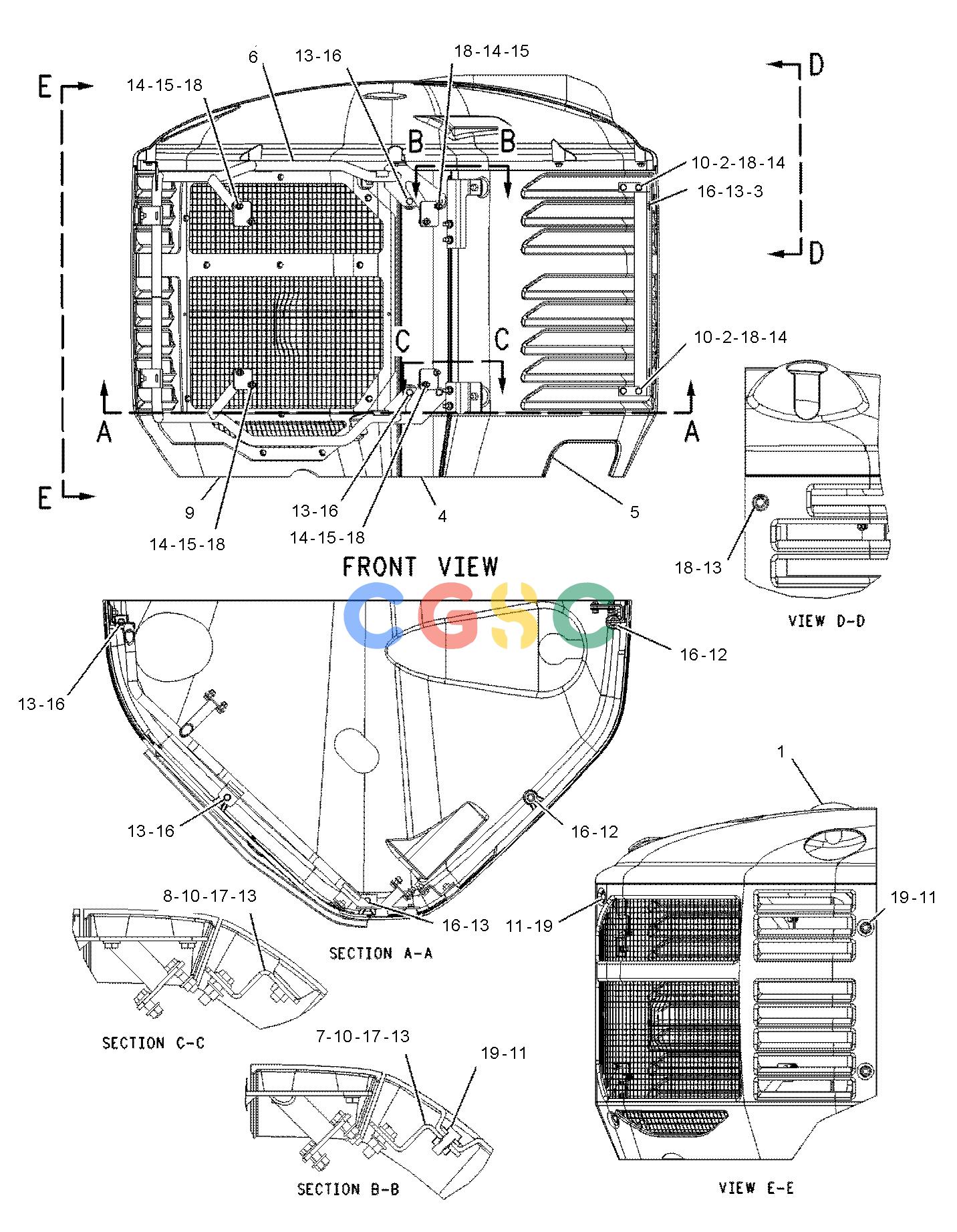

卡特零件查询（725） 150-8272: GUARD GP-RADIATOR
广数供应链运营团队, 14 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-6519 | [1] | COVER AS-TOP | |
| 2. | 187-6101 | [2] | BRACKET AS | |
| 3. | 187-6102 | [1] | ANGLE | |
| 4. | 211-6496 | [1] | PLATE AS(REAR) | |
| 5. | 193-4333 | [1] | COVER AS(LH) | |
| 6. | 193-4334 | [1] | SUPPORT AS | |
| 7. | 193-4342 | [1] | BRACKET AS | |
| 8. | 193-4344 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 9. | 196-3538Y | [1] | GUARD GP-RADIATOR(RH) | |
| 10. | 206-5538 | [4] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 11. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 7X-0578 | [2] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 13. | 7X-7729 | [15] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 16. | 8T-4136M | [11] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 18. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 19. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
