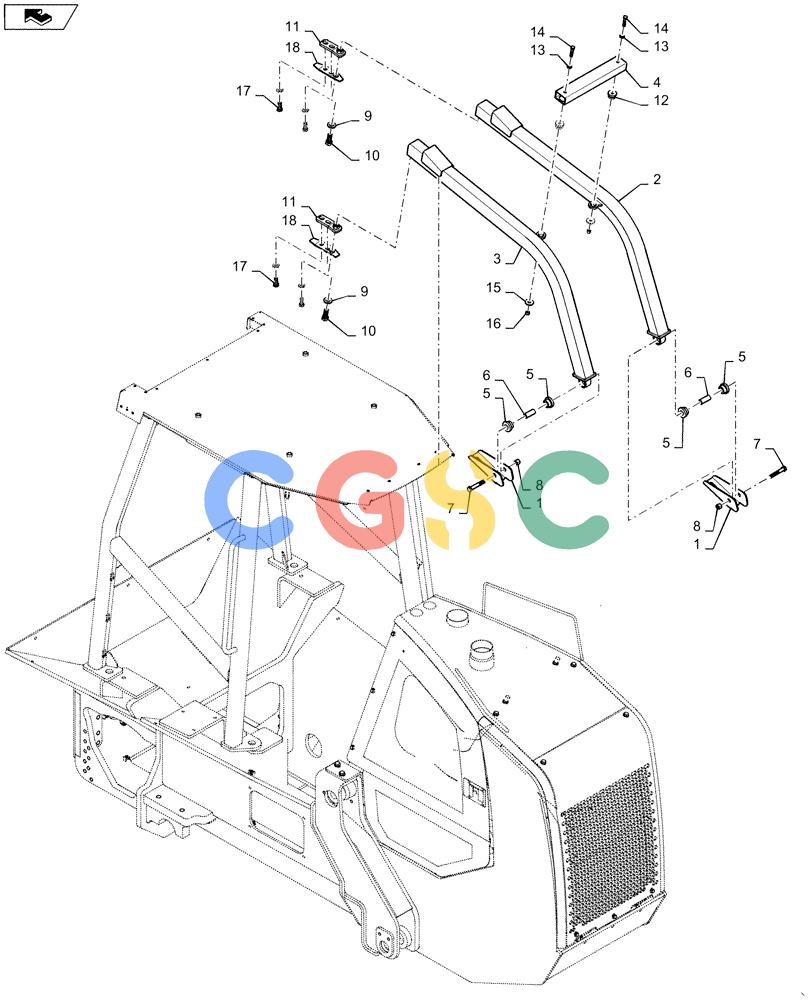

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.119.AA[01]) - CANOPY BRUSH GUARD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84549084 | [2] | CHANNEL | BURSweep Mount |
| 2. | 84565348 | [1] | GUARD | BURLh, Brush |
| 3. | 84565351 | [1] | GUARD | BURRh, Brush |
| 4. | 84390078 | [2] | MOUNT | BURWith Tab |
| 5. | 84390154 | [1] | GUARD | BURTube, Cross |
| 6. | R40721 | [4] | GROMMET | CASRubber |
| 7. | R40954 | [2] | BUSHING | CASGuard |
| 8. | 86541970 | [2] | BOLT,Hex, M16 x 100mm, Cl 10.9 | WIN |
| 9. | 412066 | [2] | NUT,M16 x 2.0, Cl 8 | ZED |
| 10. | 896-15020 | [2] | WASHER,22mm ID x 44mm OD x 5mm Thk | CAS Superseded by part number: 86639847 |
| 11. | 627-20055 | [2] | BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd | CAS Superseded by part number: 190003809441 |
| 12. | R29799 | [2] | SHOCK ABSORBER | CASRadiator Isolator |
| 13. | 87655043 | [2] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BURM12 X 13.65 X 24.9 X 3.2 Hts Boron |
| 14. | 9706693 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8 | NH |
| 15. | D25022 | [2] | WASHER | CAS |
| 16. | 87497916 | [2] | NUT | BRR Superseded by part number: 87497918 |
| 17. | 374835 | [4] | BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd | BHB |
| 18. | 47386675 | [2] | MOUNTING PLATE | BURSweep Mount |
