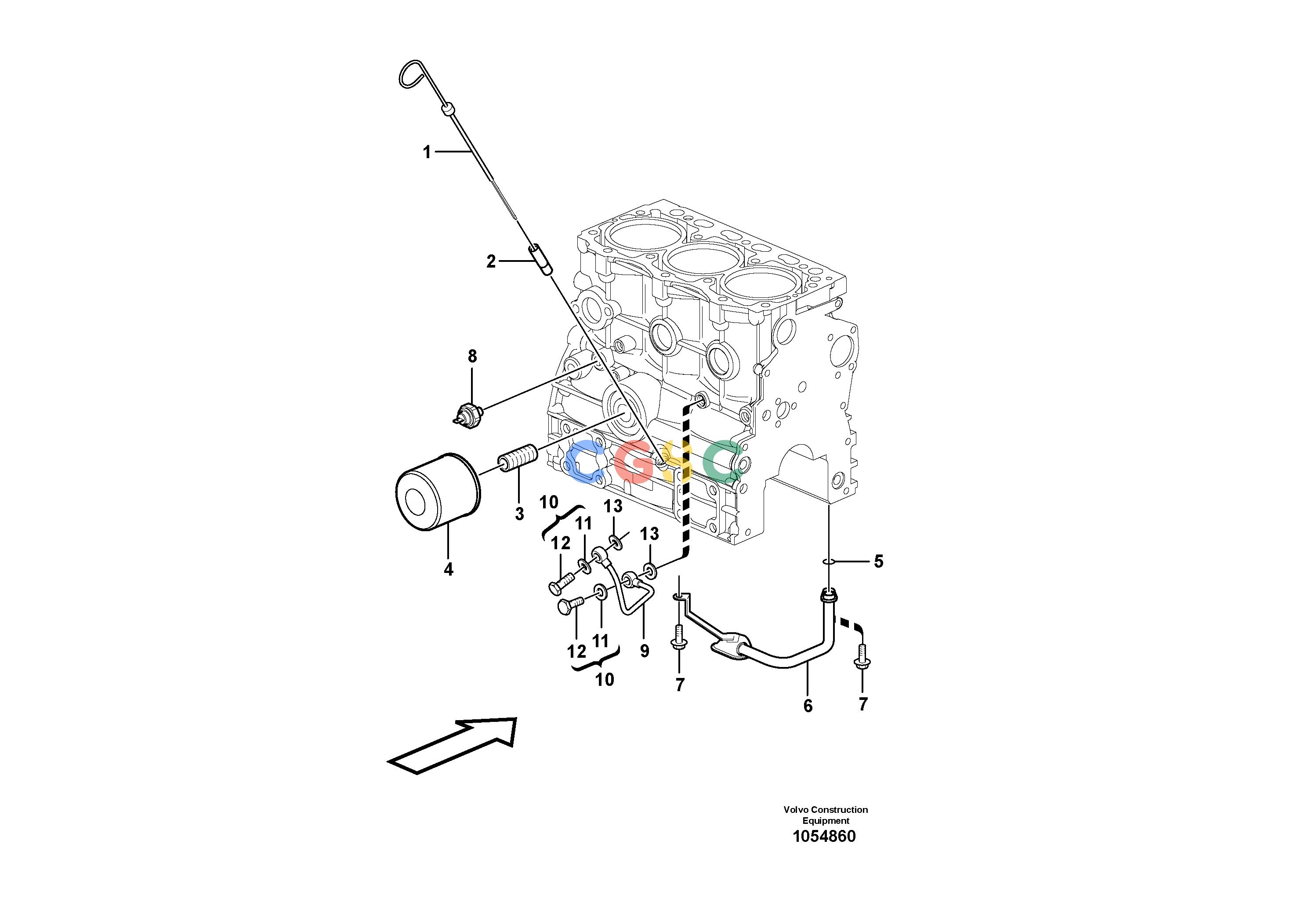

沃尔沃零件查询EC18C Lubricating oil systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
602 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15161653
|
[1] |
Dipstick
|
|
| 2. |
VOE11715318
|
[1] |
Dipstick tube
|
|
| 3. |
VOE11713441
|
[1] |
Stud
|
|
| 4. |
VOE11713228
|
[1] |
Filter cartridge
|
|
| 5. |
VOE11713304
|
[1] |
O-ring
|
|
| 6. |
VOE11713436
|
[1] |
Oil strainer
|
|
| 7. |
VOE11713437
|
[2] |
Bolt
|
|
| 8. |
VOE15066081
|
[1] |
Oil pressure sensor
|
|
| 9. |
VOE11713439
|
[1] |
Oil return pipe
|
|
| 10. |
VOE14521571
|
[2] |
Bolt
|
|
| 11. |
VOE11714476
|
[2] |
Sealing washer
|
|
| 12. |
SA8210-05600
|
[2] |
Bolt
|
|
| 13. |
VOE11714476
|
[2] |
Sealing washer
|
|
