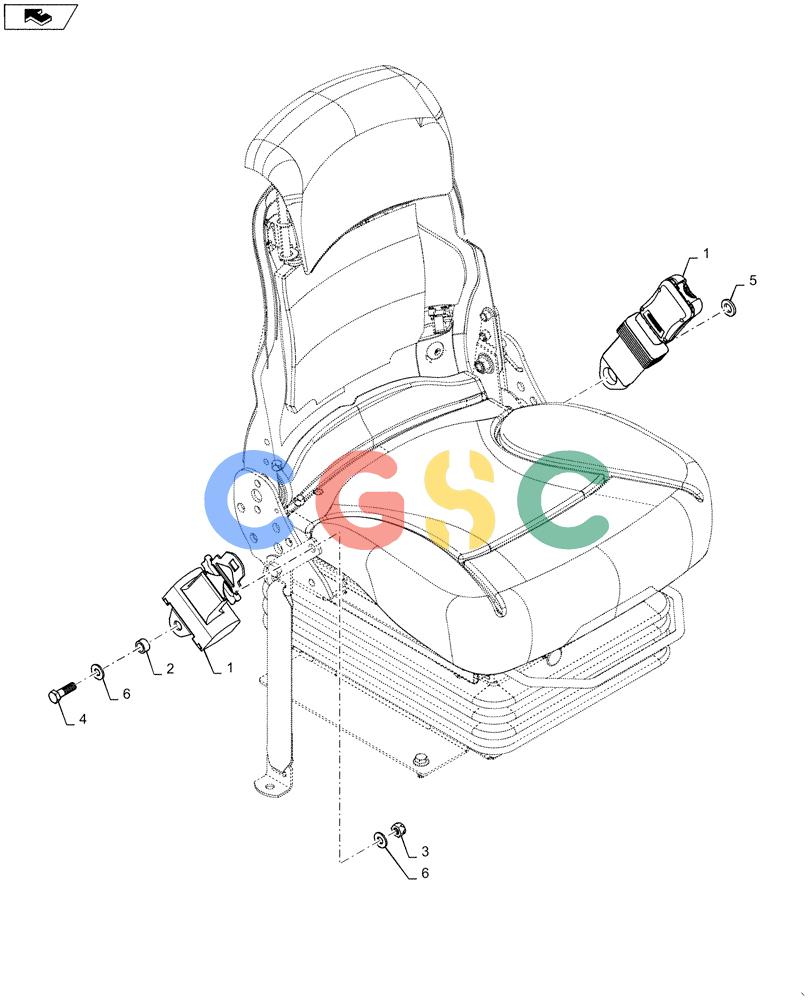

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.151.AD[01]) - SAFTY BELT ASSEMBLY 2 INCH New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
494 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84425027 | [1] | SEAT BELT,50.8mm W x 1219.2mm L | FAR2 Inch Superseded by part number: 47600159 |
| 2. | 84473328 | [1] | SPACER | FARSeat Belt Hvt |
| 3. | 86512554 | [1] | NUT,M10 x 1.5, Cl 10 | WIN |
| 4. | 86624978 | [1] | BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd | ZED |
| 5. | 87655043 | [1] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BURM12 X 13.65 X 24.9 X 3.2 Hts Boron |
| 6. | 87655046 | [2] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 X 10.65 X 23.0 X 2.2 Hts Boron |
