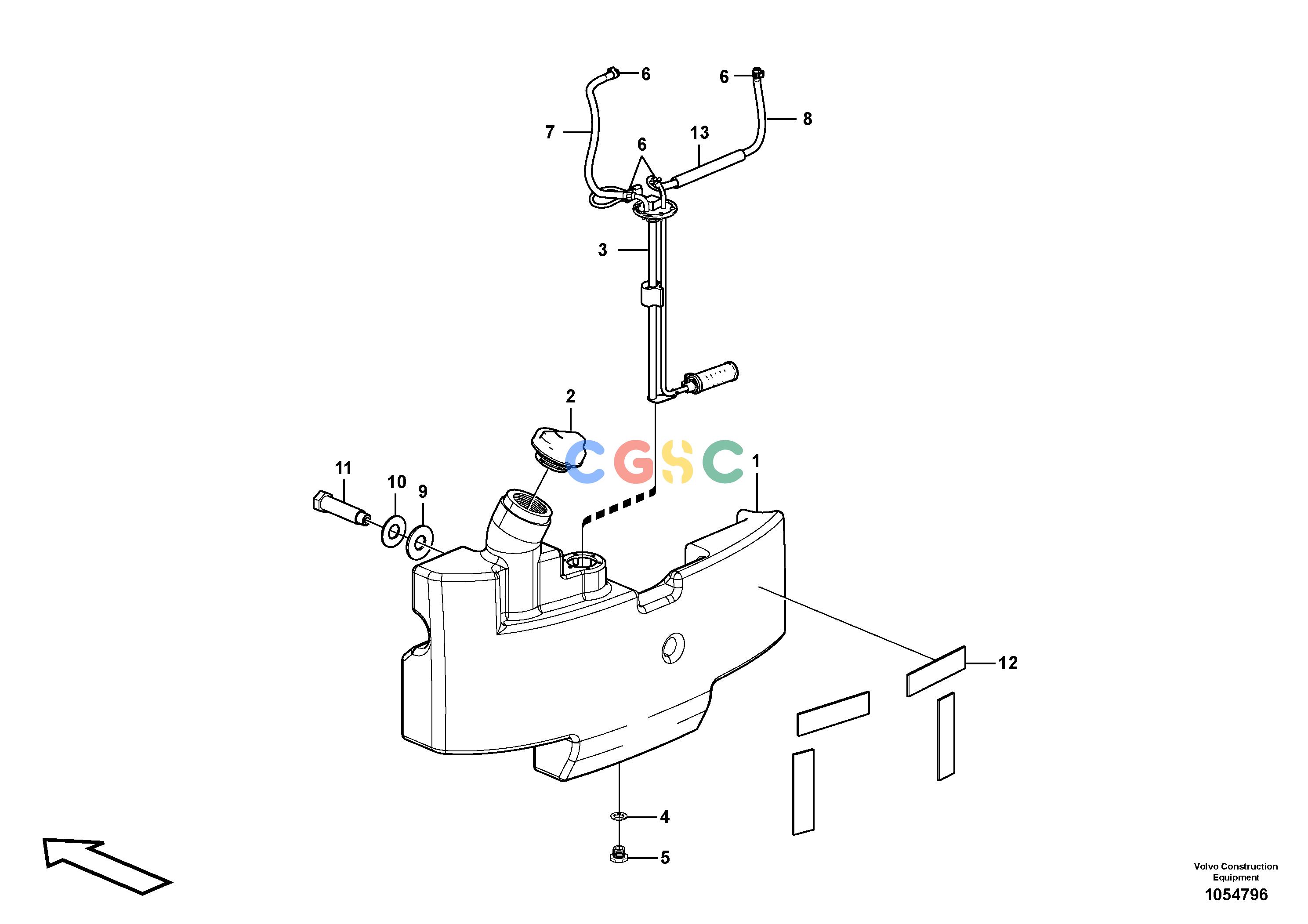

沃尔沃零件查询EC18C Fuel tank with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
443 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11808308
|
[1] |
Fuel tank
|
|
| 2. |
VOE15628911
|
[1] |
Cap
|
|
| 3. |
VOE15628887
|
[1] |
Gauge
|
SE2303
|
| |
VOE15197496
|
[1] |
Gasket
|
|
| 4. |
VOE15610132
|
[1] |
Seal
|
|
| 5. |
VOE15610134
|
[1] |
Plug
|
|
| 6. |
VOE15681496
|
[4] |
Clamp
|
|
| 7. |
VOE15681443
|
[REQ] |
Tube
|
L = 270 MM
|
| 8. |
VOE15681443
|
[REQ] |
Tube
|
L = 450 MM
|
| 9. |
VOE11808444
|
[1] |
Washer
|
|
| 10. |
VOE11809202
|
[1] |
Rubber washer
|
|
| 11. |
VOE11809201
|
[1] |
Attachment
|
|
| 12. |
VOE11807776
|
[4] |
Rubber plate
|
|
| 13. |
VOE15609542
|
[REQ] |
Corrugated hose
|
|
