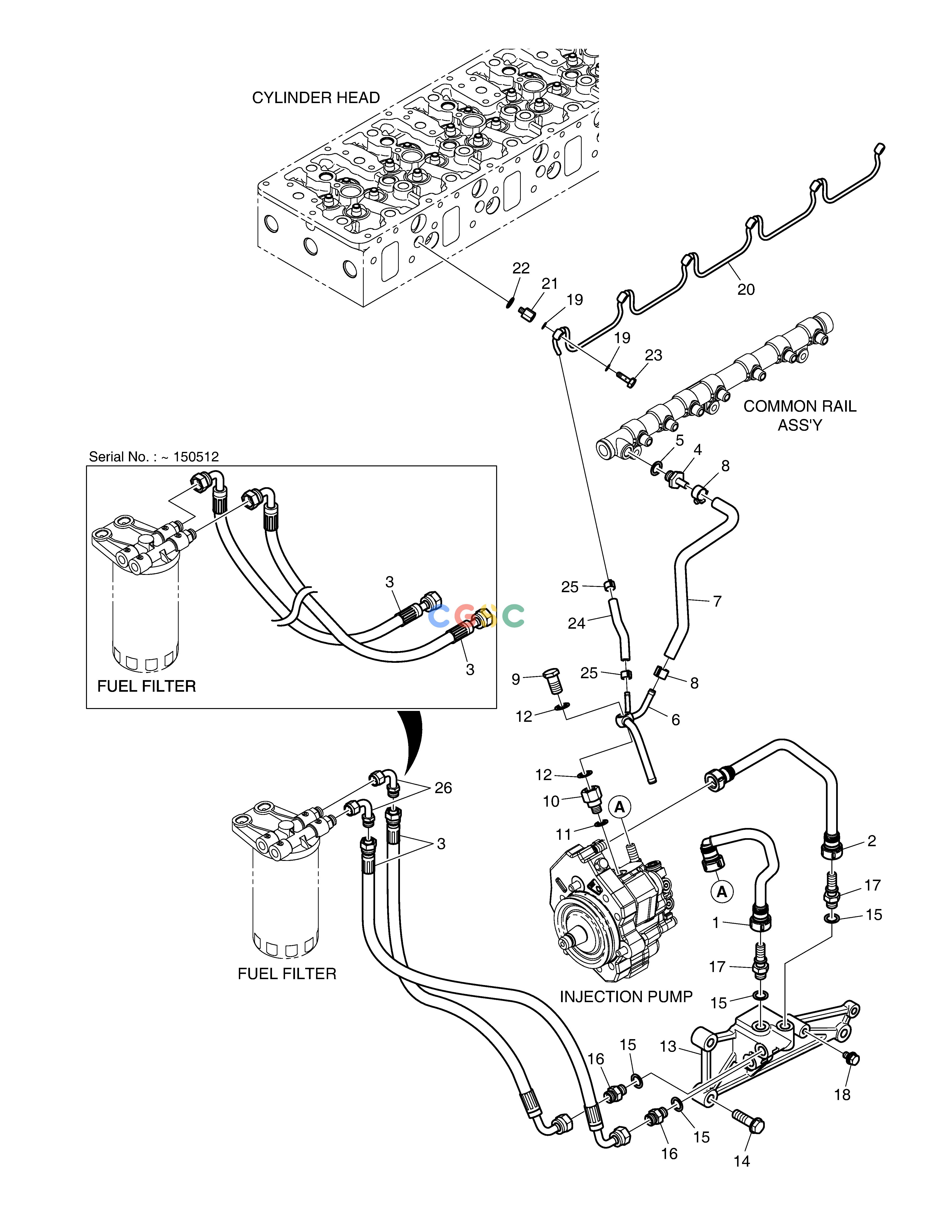

斗山零件查询FUEL LINE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420406-00606A
|
[1] |
|
|
| 10. |
430201-01083A
|
[1] |
ADAPTER
|
|
| 11. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 12. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 13. |
110411-00175
|
[1] |
|
|
| 14. |
65.90020-0095
|
[3] |
BOLT;COLLARED HEX
|
|
| 15. |
65.96507-0043
|
[4] |
. RING;SEAL
|
|
| 16. |
430201-01086
|
[2] |
. ADAPTER
|
|
| 17. |
101552-00153B
|
[2] |
|
|
| 18. |
06.01923-3111
|
[1] |
BOLT, M8X16
|
|
| 19. |
65.96507-0001
|
[12] |
RING;SEAL
|
|
| 2. |
420406-00607
|
[1] |
|
|
| 20. |
420204-00182
|
[1] |
. PIPE;FUEL
|
|
| 21. |
430201-01082A
|
[6] |
ADAPTER
|
|
| 22. |
06.56180-0712
|
[6] |
RING;SEAL
|
|
| 23. |
120703-00040A
|
[6] |
SCREW,HOLLOW
|
|
| 24. |
420108-00417
|
[1] |
|
|
| 25. |
65.97402-0006
|
[2] |
. CLAMP
|
|
| 26. |
65.12301-5251
|
[2] |
. PIPE ASS`Y;FUEL LINE
|
|
| 3. |
420108-00918
|
[2] |
|
|
| 3. |
420108-01493
|
[2] |
|
|
| 4. |
430201-00559B
|
[1] |
|
|
| 5. |
65.96507-0043
|
[1] |
. RING;SEAL
|
|
| 6. |
420204-00263
|
[1] |
|
|
| 7. |
420103-00141A
|
[1] |
|
|
| 8. |
65.97402-0010
|
[2] |
. CLIP
|
|
| 9. |
120703-00038A
|
[1] |
SCREW,HOLLOW
|
|
