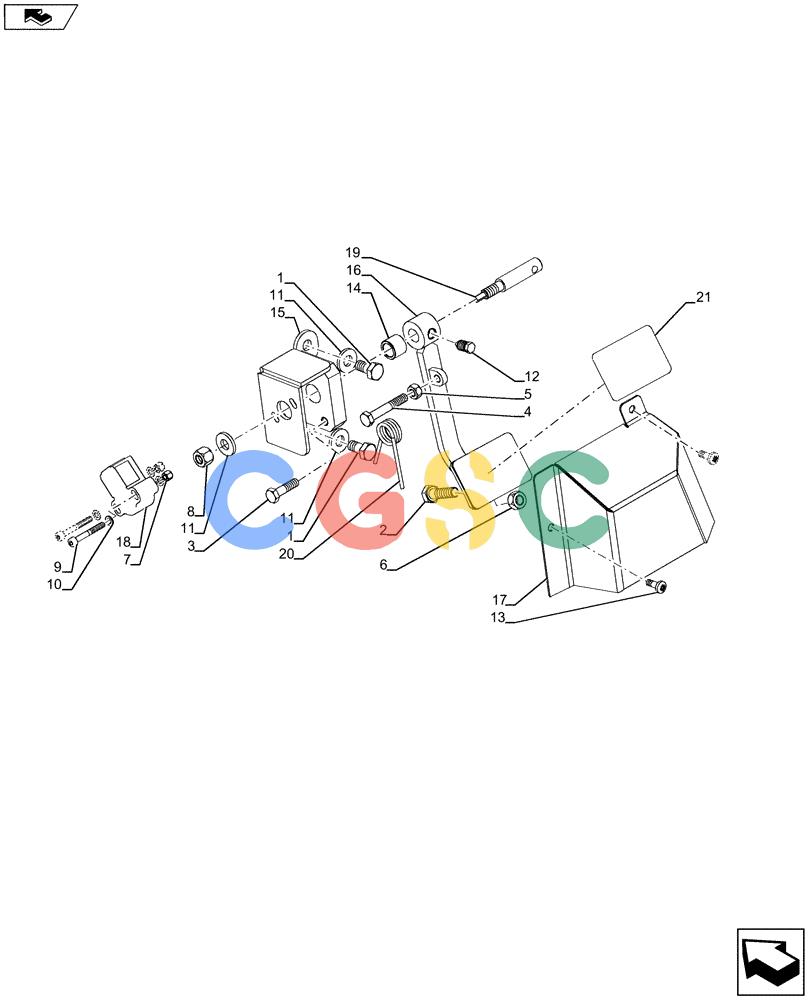

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.160.AS[01]) - PEDAL DECELERATE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 614-10020 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43138 |
| 2. | 614-10035 | [1] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd | CAS Superseded by part number: 9706704 |
| 3. | 614-8030 | [1] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43128 |
| 4. | 814-8050 | [1] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 | CAS Superseded by part number: 43130 |
| 5. | 825-1008 | [1] | NUT,M8, Cl 8 | CAS Superseded by part number: 43362 |
| 6. | 829-1410 | [1] | NUT,M10 x 1.5, Cl 10.9 | CAS Superseded by part number: 86500689 |
| 7. | 832-10405 | [2] | NUT,M5 x .8, Cl 8 | CAS Superseded by part number: 86639241 |
| 8. | 832-10410 | [1] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 9. | 864-5040 | [2] | HEX SOC SCREW,M5 x 40mm, Cl 8.8 | CAS |
| 10. | 895-11005 | [4] | WASHER,M5 x 10 x 1 | CAS Superseded by part number: 86625261 |
| 11. | 896-15010 | [3] | WASHER,11mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86639325 |
| 12. | 569475 | [1] | SCREW | LECM10 Superseded by part number: 4968815 |
| 13. | 13276217 | [2] | SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd | IMO |
| 14. | 79060774 | [1] | BUSHING | LEC |
| 15. | 84478656 | [1] | MOUNT | BURControl |
| 16. | 84478660 | [1] | PEDAL | BURDecelerator |
| 17. | 47496398 | [1] | PLATE | BURControl Cover |
| 18. | 87337478 | [1] | SENSOR | BURRotary Throttle |
| 19. | 87378252 | [1] | ROD | BURSensor |
| 20. | 380483A2 | [1] | SPRING | CASThrottle Return |
| 21. | 84196923 | [1] | ANTI-SKID STRIP | BURBulk Cut To Length 425mm |
