沃尔沃零件查询D11B1-A MP; D11B2-A MPElectrical SystemControl Unit and Cables EVC-E2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
294 次

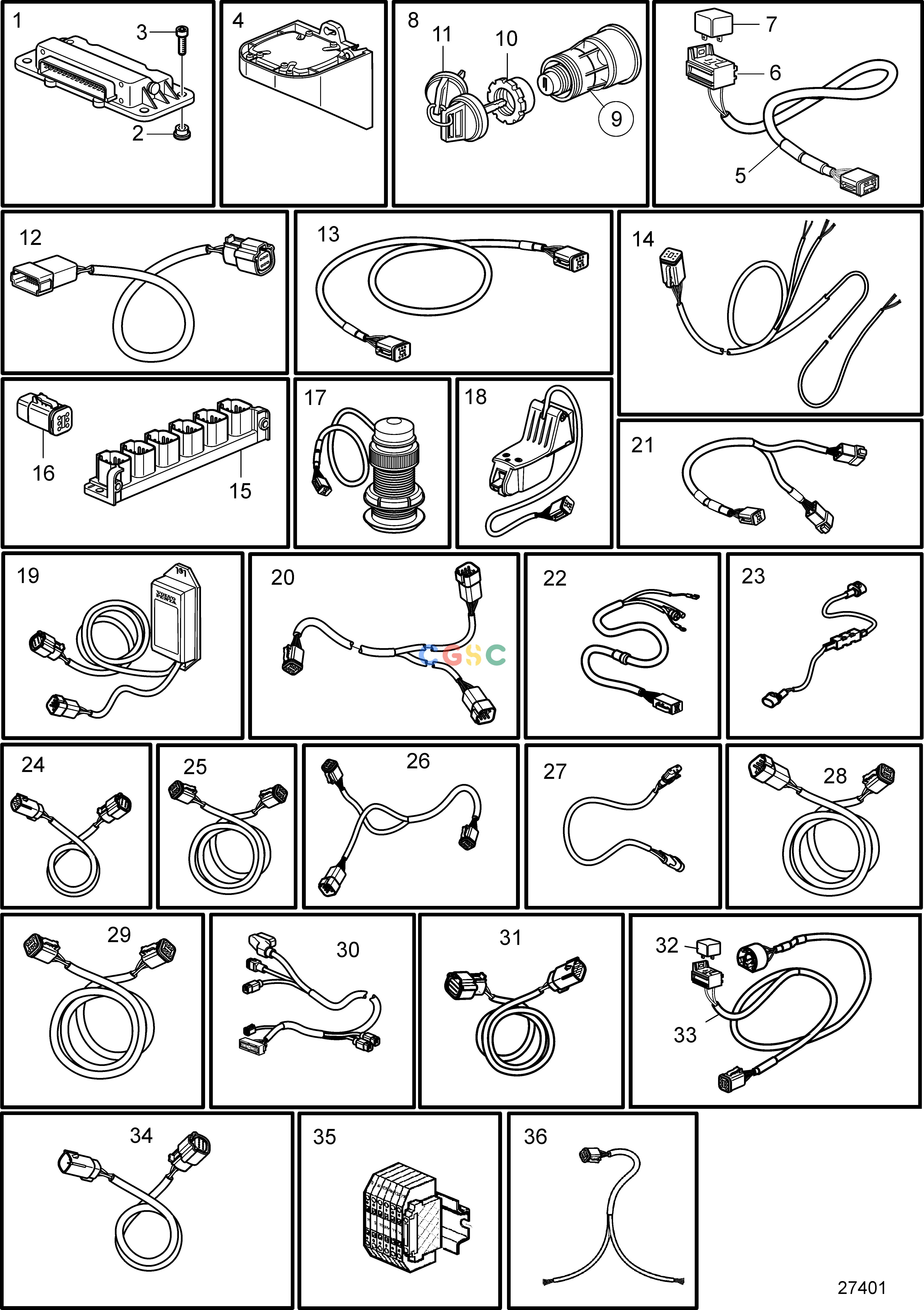

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21722888
|
[1] |
Power train control
|
|
| 1. |
3586266
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586267
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
21230875
|
[4] |
Sleeve
|
|
| 3. |
976104
|
[4] |
Flange screw
|
|
| 4. |
22296662
|
[1] |
Control unit
|
|
| 4. |
3586261
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 4. |
3586259
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 5. |
21427463
|
[1] |
Cable
|
Relay cable. 6-pin. L=1,5m
|
| 6. |
977184
|
[1] |
Housing
|
|
| 7. |
873765
|
[1] |
Relay
|
12V
|
| 7. |
3171420
|
[1] |
Relay
|
24V
|
| 8. |
3587070
|
[1] |
Starter switch, Set
|
Kit with 2 key switch with identical key.
|
| 9. |
3587071
|
[1] |
Starter switch
|
|
| 10. |
859955
|
[1] |
Plastic nut
|
|
| 11. |
859953
|
[1] |
Key
|
State key code when ordering
|
| 12. |
21421945
|
[1] |
Cable
|
Steering adapter
|
| 13. |
3886666
|
[1] |
Cable, synchronizing
|
Syncronicing cable for twin installation. 6 pole., L=1,5m
|
| 14. |
3807229
|
[1] |
Wiring harness, fuel
|
|
| 15. |
21469055
|
[1] |
Connection block
|
|
| 16. |
21825714
|
[1] |
Terminal
|
|
| 17. |
3587054
|
[1] |
Sensor
|
Through hull
|
| 18. |
3587055
|
[1] |
Sensor
|
Mounted on transom
|
| 19. |
21461496
|
[1] |
Mains adapter
|
A-can converter, Analogue key interface
|
| 20. |
21825662
|
[1] |
Cable
|
Y-split, multisensor
|
| 20. |
21825665
|
[1] |
Cable
|
CPM Y-split
|
| 21. |
3588206
|
[1] |
Cable kit, y-split
|
For connecting extra equipment to Multilink
|
| 22. |
21877591
|
[1] |
Cable
|
|
| 23. |
21865082
|
[1] |
Cable
|
|
| 24. |
21480272
|
[1] |
Cable
|
L=1,5m
|
| 25. |
21166002
|
[1] |
Wiring harness
|
L=7,0m
|
| 25. |
21166003
|
[1] |
Wiring harness
|
L=9.0m
|
| 25. |
21166004
|
[1] |
Wiring harness
|
L=13,0m
|
| 26. |
3588972
|
[1] |
Cable kit
|
|
| 27. |
874759
|
[1] |
Extension cable
|
L=1,0m
|
| 27. |
3807043
|
[1] |
Extension cable
|
L=3.0m
|
| 28. |
21865234
|
[1] |
Cable
|
L=1,5m, DPH-B
|
| 28. |
874789
|
[1] |
Cable kit
|
L=5.0m
|
| 28. |
889550
|
[1] |
Cable
|
L=7,0m
|
| 28. |
889551
|
[1] |
Cable
|
L=9.0m
|
| 28. |
889552
|
[1] |
Cable
|
L=11,0m
|
| 28. |
888013
|
[1] |
Cable
|
L=13m
|
| 29. |
3889410
|
[1] |
Extension cable
|
L=1,5m, (874752)
|
| 29. |
3842733
|
[1] |
Extension cable
|
L=3.0m
|
| 29. |
3842734
|
[1] |
Extension cable
|
L=5.0m
|
| 29. |
3842735
|
[1] |
Extension cable
|
L=7,0m
|
| 29. |
3842736
|
[1] |
Extension cable
|
L=9.0m
|
| 29. |
3842737
|
[1] |
Extension cable
|
L=11,0m
|
| 29. |
21172469
|
[1] |
Extension cable
|
|
| 29. |
21172470
|
[1] |
Extension cable
|
L=40m, Replaced by 22815614
|
| 29. |
22815614
|
[1] |
Cable kit, 100 m
|
Data link cable kit, Type Approved 100m
|
| 29. |
22815615
|
[1] |
Cable kit, 1000 m
|
Data link cable kit, Type Approved 1000m
|
| 29. |
22815617
|
[1] |
Cable kit, 25 m
|
Data link cable kit, Type Approved 25m
|
| 30. |
21879108
|
[1] |
Wiring harness
|
|
| 31. |
22067251
|
[1] |
Cable
|
L=1,5m
|
| 32. |
873765
|
[2] |
Relay
|
12V
|
| 33. |
888004
|
[2] |
Cable
|
|
| 34. |
22739429
|
[1] |
Wiring harness
|
Cable, Single data link, 3m, Type Approved
|
| 34. |
22810677
|
[1] |
Wiring harness
|
Cable, Single data link, 11m, Type Approved
|
| 35. |
22797159
|
[1] |
Terminal block
|
Terminal block, Type Approved
|
| 36. |
22739427
|
[1] |
Wiring harness
|
Y-split data link cable, Type Approved
|
