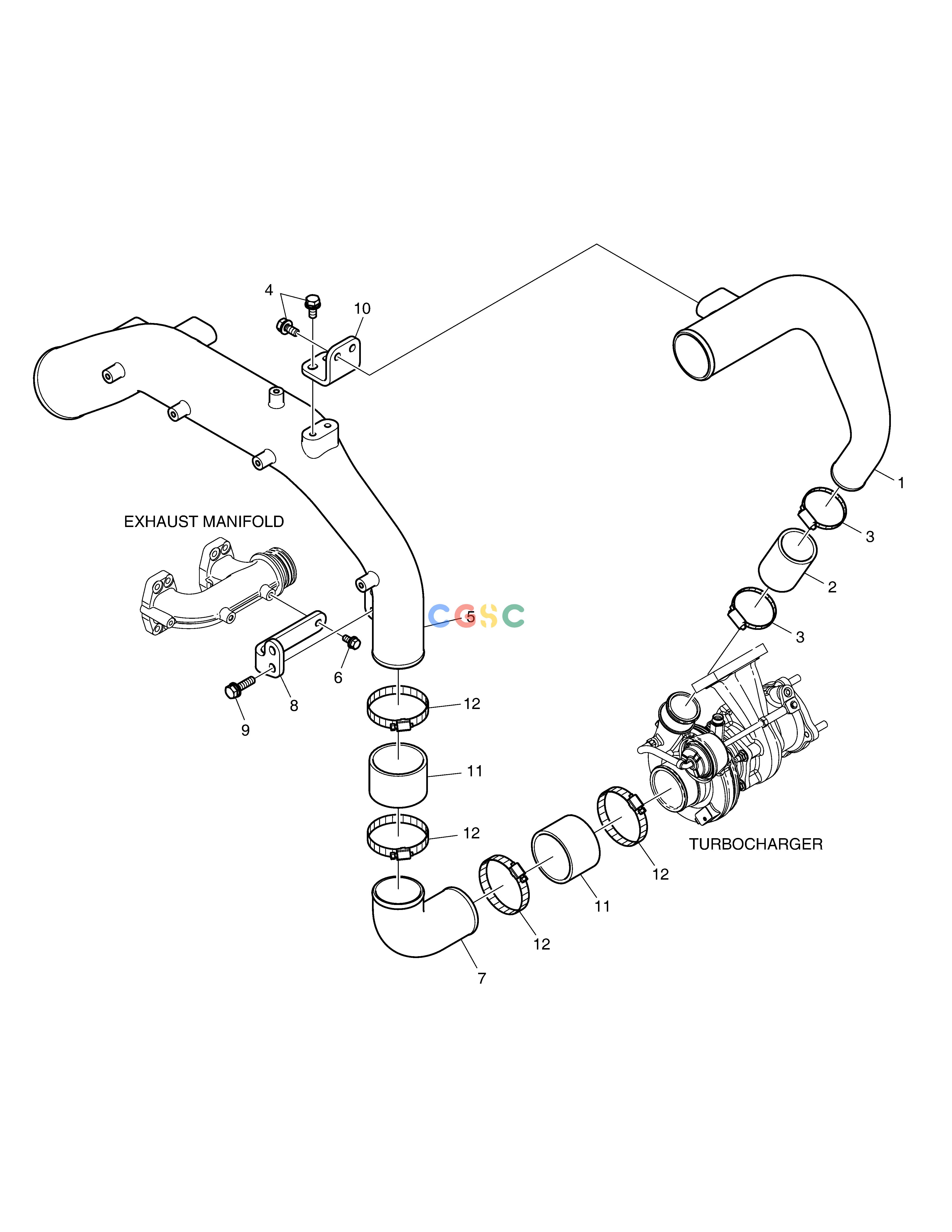

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 420209-00183A | [1] | ||
| 10. | 110449-00015 | [1] | ||
| 11. | 420108-00095 | [2] | ||
| 12. | 65.97440-0097 | [4] | ||
| 2. | 65.96301-0263 | [1] | HOSE | |
| 3. | 65.97440-0099 | [2] | ||
| 4. | 06.01923-3215 | [4] | BOLT ASS`Y M10X25 | |
| 5. | 420209-00216 | [1] | ||
| 6. | 06.01923-3113 | [2] | BOLT ASS`Y M8X20 | |
| 7. | 420209-00184 | [1] | ||
| 8. | 110449-00042 | [1] | ||
| 9. | 06.01923-3219 | [2] | BOLT ASS'Y M10X40 |
