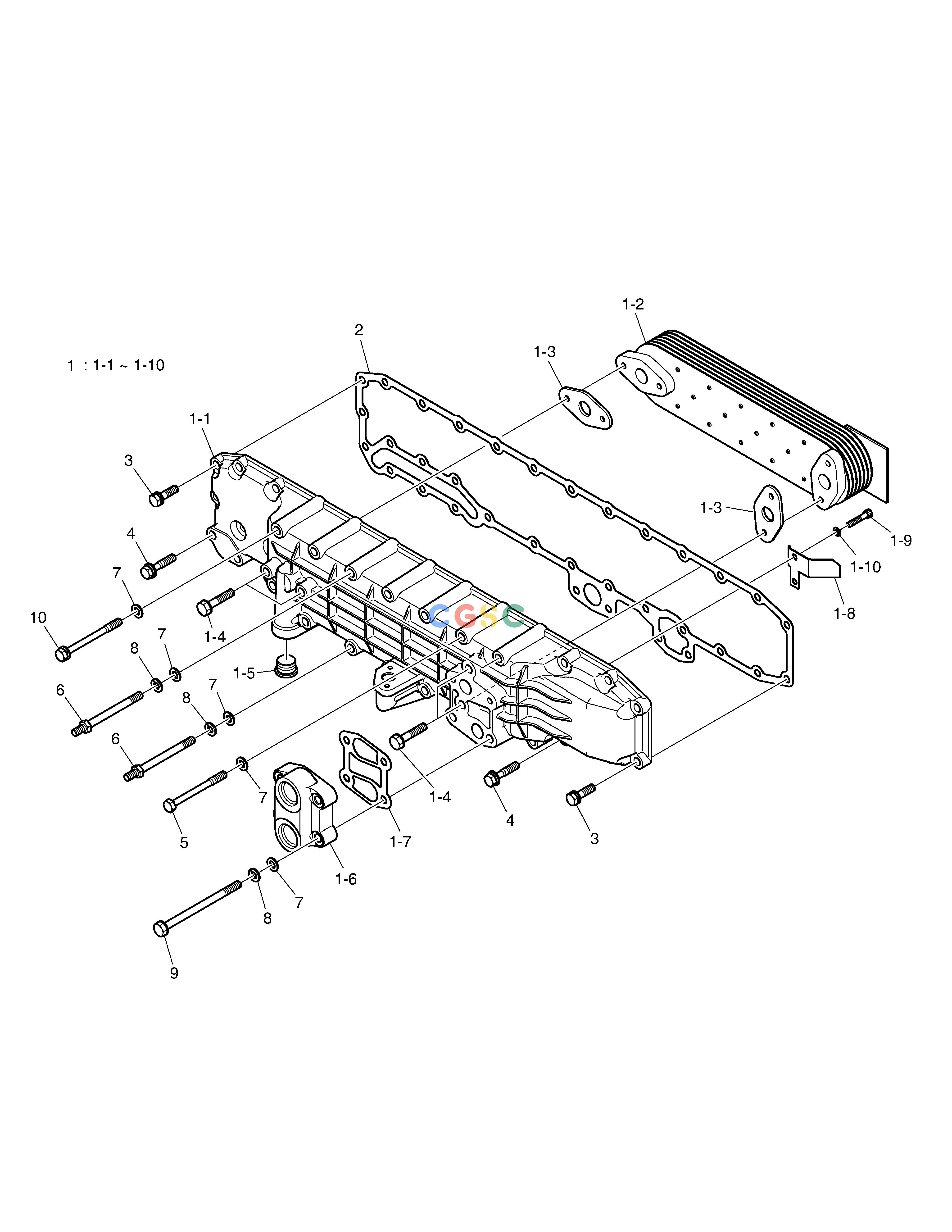

斗山零件查询OIL COOLER DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400206-00158A
|
[1] |
|
|
| 1-1. |
65.05604-0030A
|
[1] |
. HOUSING;OIL COOLER
|
|
| 1-10. |
06.16731-2105
|
[2] |
. WASHER
|
|
| 1-2. |
65.05606-5032A
|
[1] |
. ELEMENT;OIL COOLER
|
|
| 1-3. |
65.05902-0022
|
[2] |
. GASKET;OIL COOLER
|
|
| 1-4. |
06.01923-3119
|
[6] |
BOLT ASS`Y M8X40
|
|
| 1-5. |
65.54109-0005A
|
[1] |
. SCREW;PLUG M22X1.5
|
|
| 1-6. |
430215-00190
|
[1] |
|
|
| 1-7. |
400622-00011
|
[1] |
. GASKET,OIL FILTER
|
|
| 1-8. |
65.05610-0007A
|
[1] |
. GUIDER;WATER FLOW
|
|
| 1-9. |
06.02097-8306
|
[2] |
. BOLT;SOCKET
|
|
| 10. |
06.01913-3129
|
[1] |
BOLT ASS`Y M8X90
|
|
| 2. |
65.05902-0023
|
[1] |
GASKET;OIL COOLER
|
|
| 3. |
06.01923-3117
|
[10] |
. BOLT ASS`Y M8X30
|
|
| 4. |
06.01923-3119
|
[10] |
BOLT ASS`Y M8X40
|
|
| 5. |
06.01913-3128
|
[8] |
BOLT M8X85
|
|
| 6. |
65.90201-0135
|
[3] |
BOLT;STUD
|
|
| 7. |
06.15010-2311
|
[14] |
WASHER
|
|
| 8. |
06.16731-2107
|
[5] |
WASHER
|
|
| 9. |
06.01013-9127
|
[2] |
BOLT M8X120
|
|
