神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (08-005) - CRANKSHAFT REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
662 次

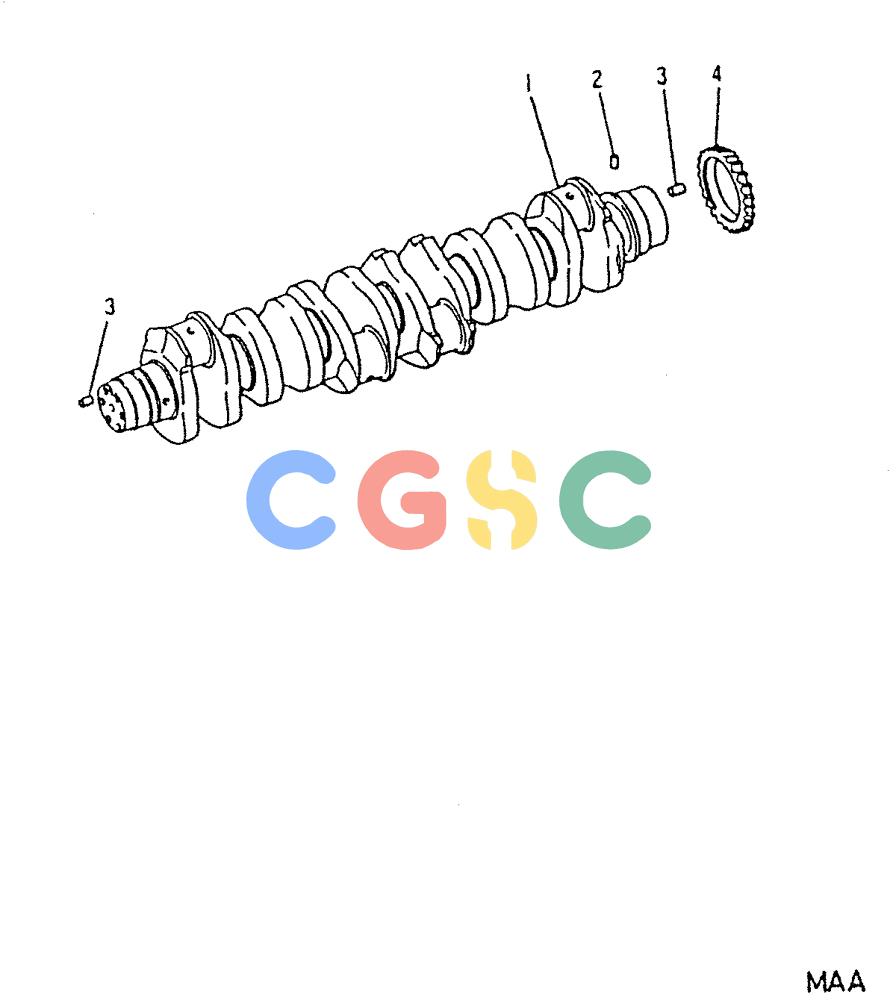

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME999367 | [1] | CRANKSHAFT ASSY 6D22,22T, M0 ONLY | CRANKSHAFT ASSY 6D22,22T, M0 ONLY |
| . . | VAME999368 | [1] | SHAFT,CRANK 6D22T1, M1 ONLY | SHAFT,CRANK 6D22T1, M1 ONLY |
| 1. | VAME052414 | [1] | CRANKSHAFT, M0 ONLY | |
| . . | VAME052406 | [1] | M1 ONLY | |
| 2. | VAMH012026 | [1] | PIN | KOBPIN, DOWEL |
| 3. | VAMF472407 | [2] | PIN | KOBPIN, DOWEL 14 |
| 4. | VAME062311 | [1] | GEAR CRANKSHAFT Z=63 | GEAR CRANKSHAFT Z=63 |
