斗山零件查询ROCKER ARM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
513 次

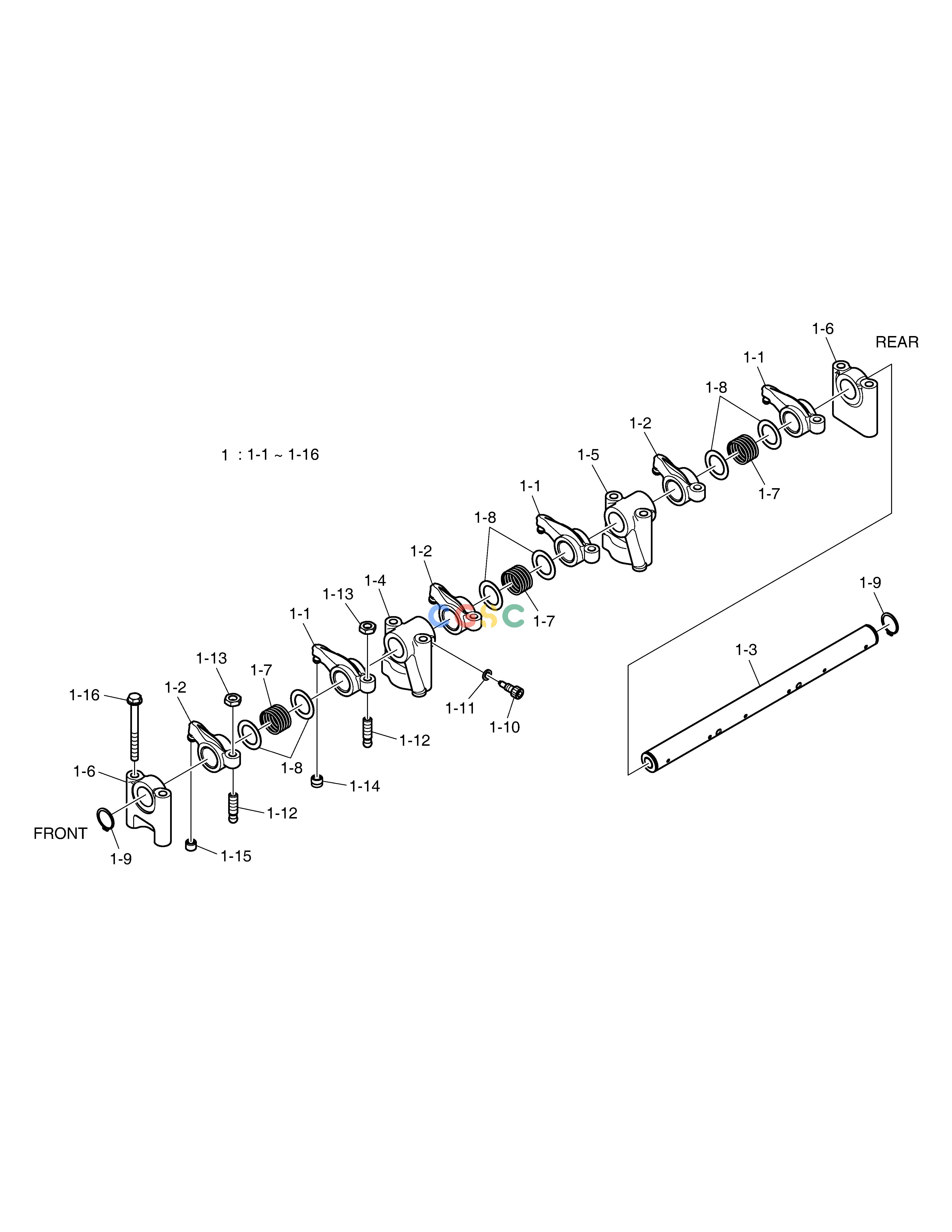

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04200-6038D
|
[2] |
ROCKER ARM SHAFT ASS`Y
|
|
| 1-1. |
65.04201-5042C
|
[3] |
. ROCKER ARM;INTAKE
|
|
| 1-10. |
65.90030-0018
|
[1] |
. BOLT;SOCKET
|
|
| 1-11. |
06.16110-0106
|
[1] |
. WASHER
|
|
| 1-12. |
65.04205-0014
|
[6] |
. SCREW;ADJUST
|
|
| 1-13. |
65.90501-0003
|
[6] |
. NUT
|
|
| 1-14. |
65.04209-5002
|
[3] |
. CAP;INTAKE
|
|
| 1-15. |
65.04209-0006
|
[3] |
. CAP;EXHAUST
|
|
| 1-16. |
65.90020-0120
|
[8] |
. BOLT;COLLARED HEX
|
|
| 1-2. |
65.04201-5043C
|
[3] |
. ROCKER ARM;EXHAUST
|
|
| 1-3. |
65.04203-5020A
|
[1] |
. SHAFT;ROCKER ARM
|
|
| 1-4. |
65.04202-0033
|
[1] |
. BRACKET;ROCKER ARM
|
|
| 1-5. |
65.04202-0034
|
[1] |
. BRACKET;ROCKER ARM
|
|
| 1-6. |
65.04202-0035
|
[2] |
. BRACKET;ROCKER ARM
|
|
| 1-7. |
65.97601-0124
|
[3] |
. SPRING;COMPRESSION
|
|
| 1-8. |
65.90701-0136B
|
[6] |
. WASHER
|
|
| 1-9. |
06.29010-0120
|
[2] |
. RING;SNAP
|
|
