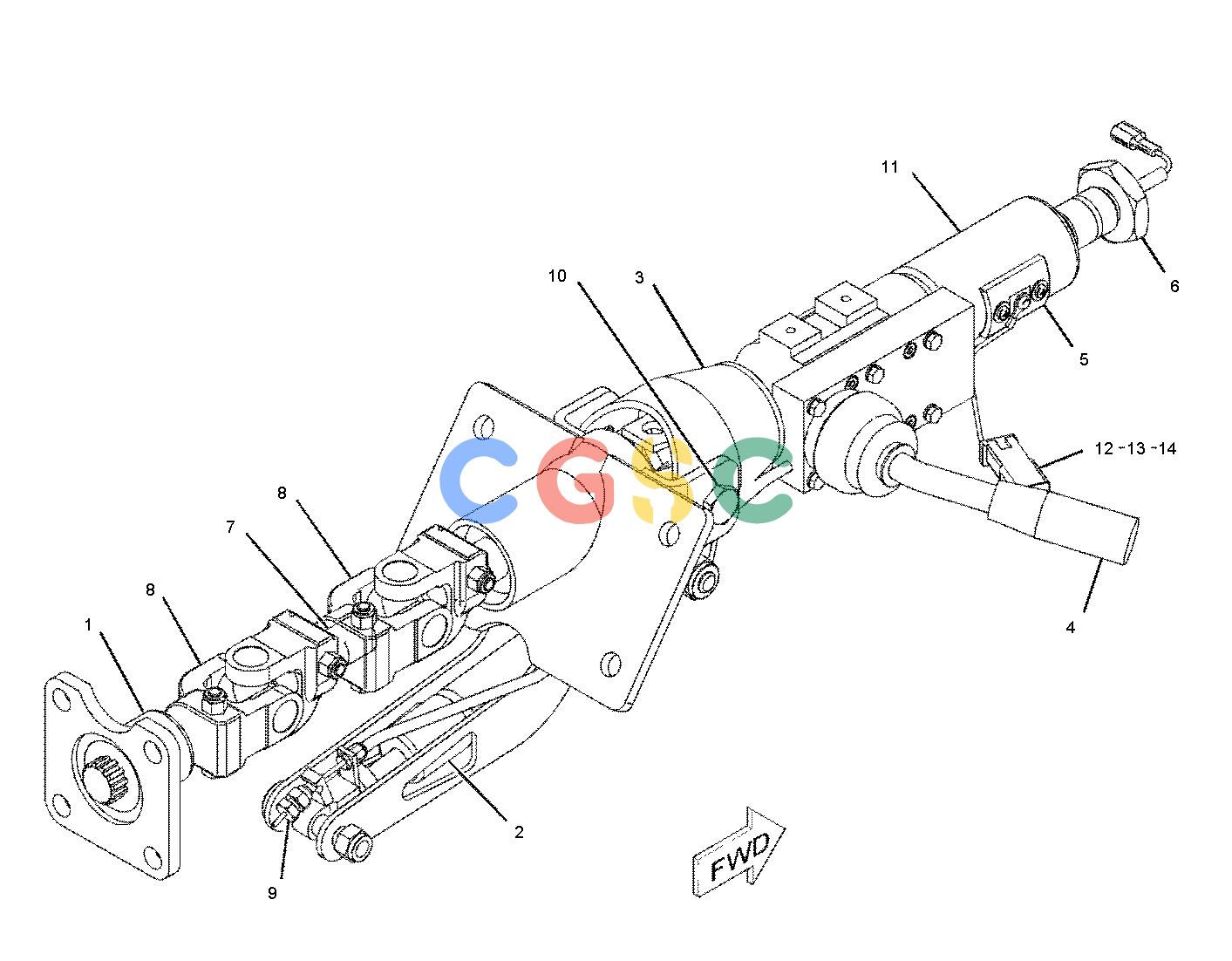

卡特零件查询（725） 189-9367: STEERING COLUMN GP-ADJUSTABLE
广数供应链运营团队, 14 02月, 2025，浏览：
272 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 252-8051 | [1] | ADAPTER AS | |
| 2. | 162-8550 | [1] | KIT-GAS STRUT(STEERING COLUMN TILT) | |
| | | | (INCLUDES STRUT, BOLTS, NUTS, & SPACER) |
| 3. | 189-9368 | [1] | KIT-COLUMN(STEERING COLUMN) | |
| 4. | 191-3700 | [1] | KIT-TILT LEVER(STEERING COLUMN) | |
| | | | (INCLUDES CLAMP AS) |
| 5. | 252-8054 | [1] | KIT-CONTACT(STEERING COLUMN) | |
| | | | (INCLUDES HORN CONTACT AS & SCREW) |
| 6. | 6V-8227M | [1] | NUT(M18X1.5-THD) | |
| 7. | 189-9370 | [1] | SHAFT | |
| 8. | 162-8551 | [2] | JOINT AS-UNIVERSAL | |
| | | | (EACH INCLUDES) |
| | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 9. | 185-3886 | [1] | CLAMP AS-CABLE | |
| 10. | 224-9929 | [1] | KIT-PIVOT | |
| | | | (INCLUDES BUHING & PIN PIVOTS) |
| 11. | 201-5121 | [1] | KIT-SHAFT(STEERING COLUMN) | |
| | | | (INCLUDES UPPER SHAFT, WASHERS, SPRING, PIN & HORN CONTACT) |
| 12. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 13. | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 9G-3695 | [1] | PLUG-SEAL | |
| | M | | METRIC PART |
