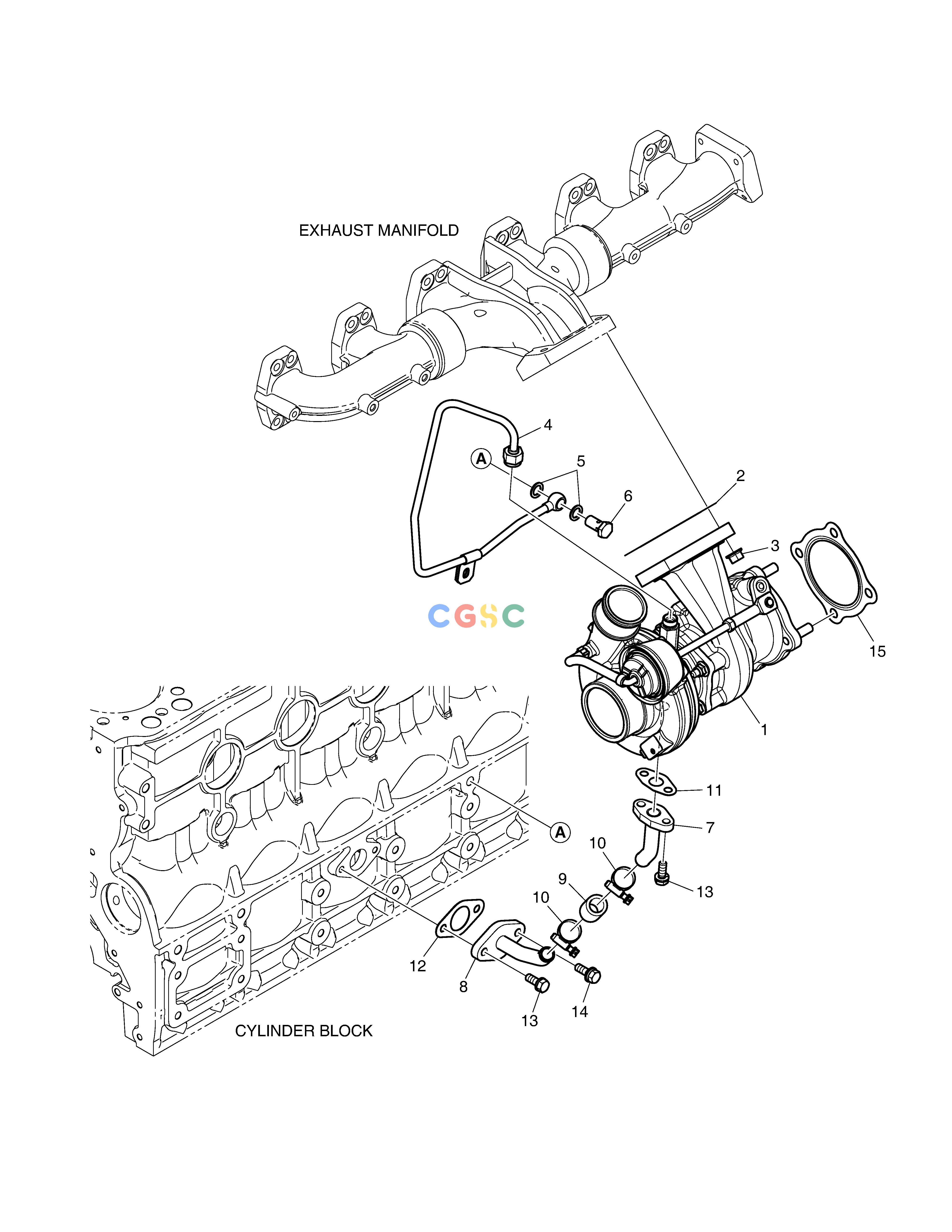

斗山零件查询TURBO CHARGER DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150105-00415A
|
[1] |
|
|
| 1. |
150105-00415B
|
[1] |
|
|
| 10. |
06.67020-0102
|
[2] |
CLAMP
|
|
| 10. |
120202-00230
|
[2] |
|
|
| 11. |
400612-00027
|
[1] |
|
|
| 12. |
65.96601-0052
|
[1] |
GASKET
|
|
| 13. |
06.01913-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 13. |
120106-00191
|
[3] |
BOLT,HEX FLANGE
|
|
| 14. |
06.01923-3115
|
[1] |
BOLT ASS`Y M8X25
|
|
| 15. |
400611-00018
|
[1] |
|
|
| 2. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 3. |
65.90535-0001
|
[4] |
NUT
|
|
| 4. |
420214-00246
|
[1] |
|
|
| 4. |
420214-00246A
|
[1] |
|
|
| 5. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 6. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 7. |
420217-00151
|
[1] |
|
|
| 7. |
420217-00151A
|
[1] |
|
|
| 8. |
420217-00192
|
[1] |
|
|
| 8. |
420217-00192A
|
[1] |
|
|
| 9. |
420108-00047
|
[1] |
|
|
| 9. |
420108-00047A
|
[1] |
|
|
