卡特零件查询（725） 137-9623: CYLINDER & MTG GP-TAILGATE
广数供应链运营团队, 14 02月, 2025，浏览：
343 次

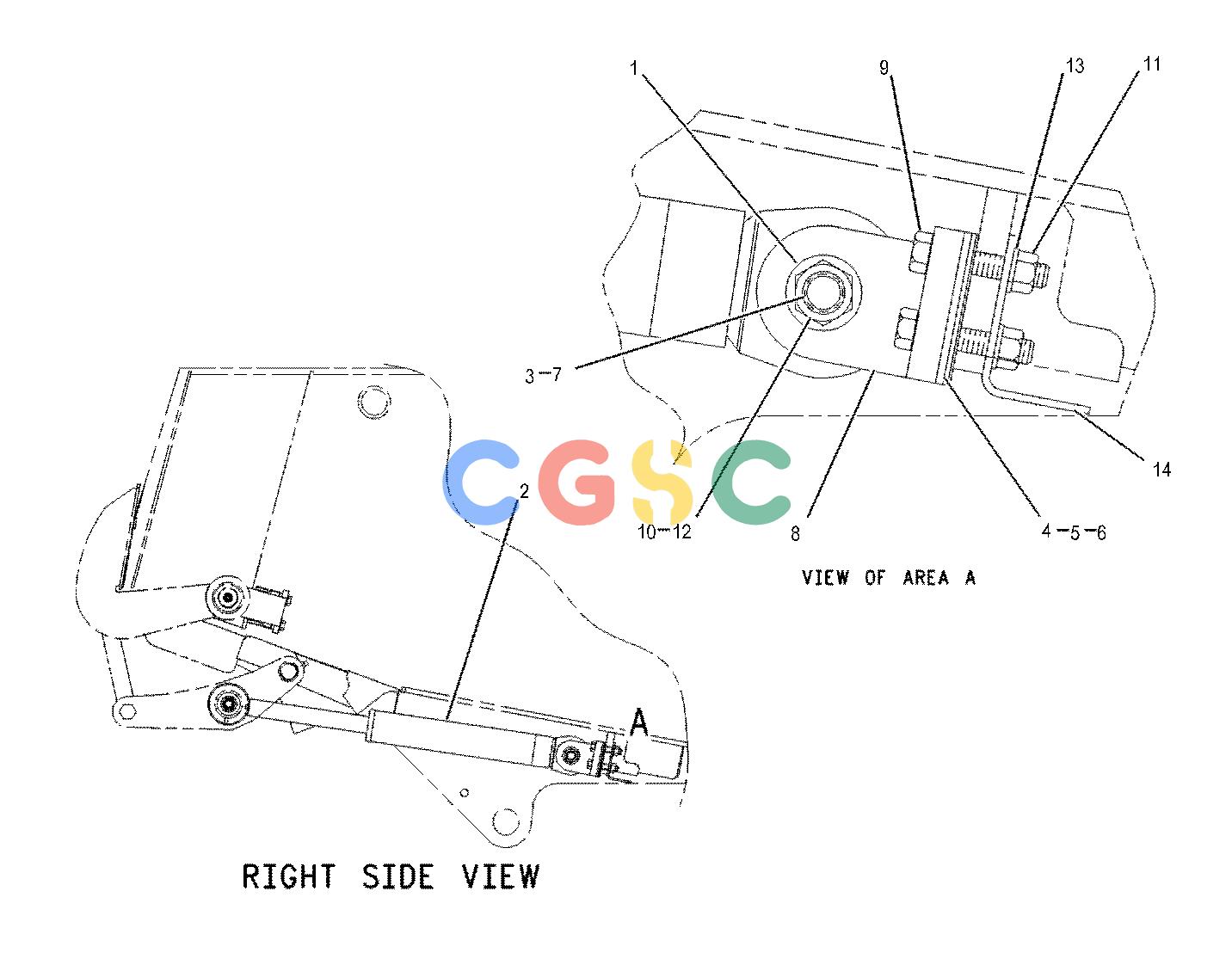

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5U-5605 | [2] | WASHER(26X70X10-MM THK) | |
| 2. | 151-2611Y | [1] | CYLINDER GP-TAILGATE | |
| 3. | 6U-2193 | [1] | PIN-CENTER | |
| 4. | 6U-2270B | [5] | SHIM(1.6-MM THK) | |
| 5. | 6U-2271B | [5] | SHIM(3-MM THK) | |
| 6. | 6U-2272B | [5] | SHIM(5-MM THK) | |
| 7. | 6V-7676M | [1] | NUT(M24X3-THD) | |
| 8. | 7U-6339 | [1] | MOUNTING AS-CYLINDER | |
| 9. | 7X-2555M | [4] | BOLT(M16X2X80-MM) | |
| 10. | 7X-2578M | [1] | BOLT(M24X3X200-MM) | |
| 11. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 12. | 8T-4167 | [1] | WASHER-HARD(26X44X4-MM THK) | |
| 13. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 14. | 155-7687 | [1] | BRACKET-SUPPORT | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
