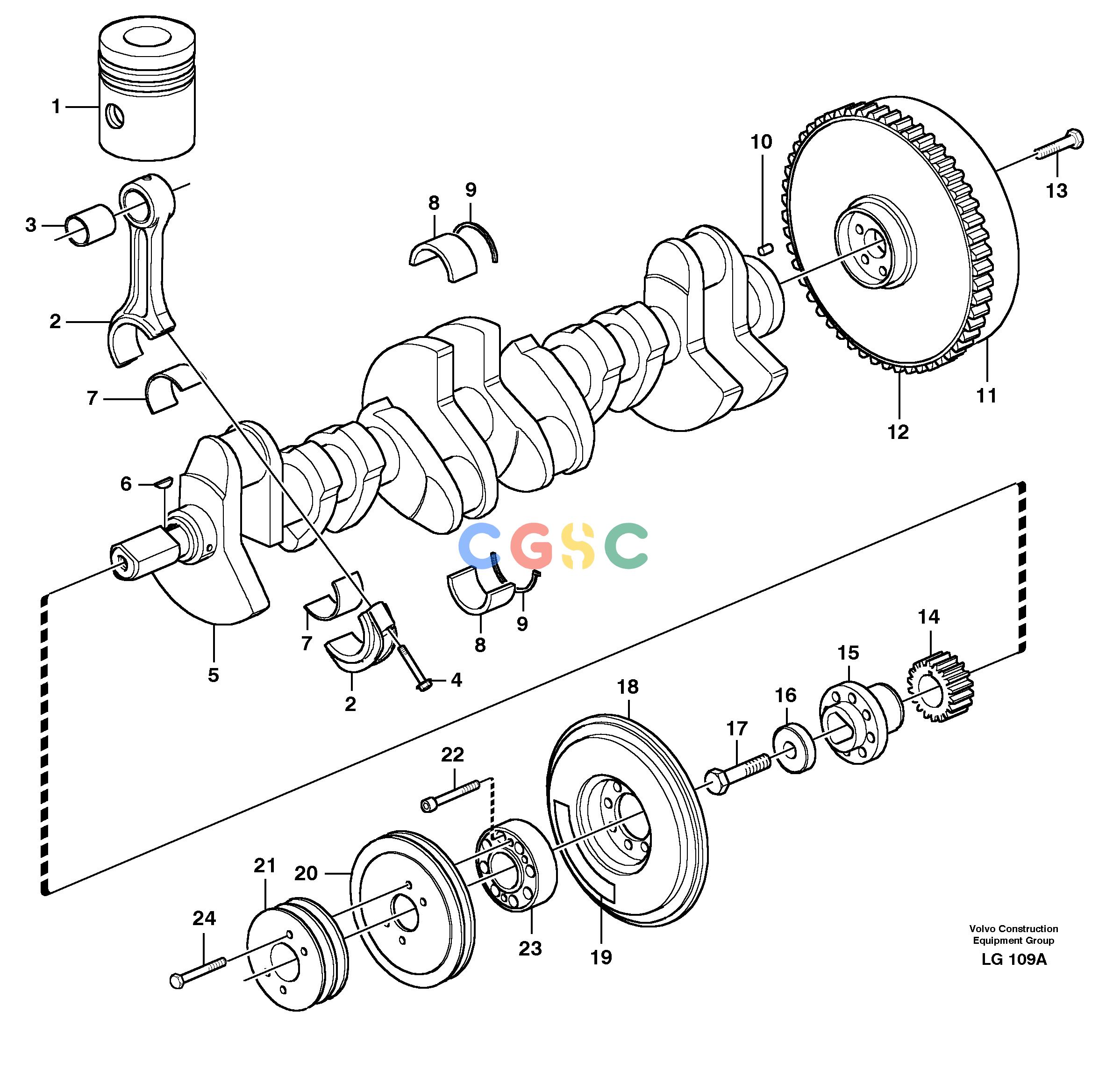

沃尔沃零件查询EC200 Crankshaft and related partsSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Cylinder liner kit
|
|
| 2. |
VOE8192120
|
[6] |
Connecting rod
|
|
| 3. |
VOE465816
|
[6] |
Bushing
|
|
| 4. |
VOE465815
|
[12] |
Screw
|
|
| 5. |
VOE420662
|
[1] |
Crankshaft
|
ENG - 106089, 6 hole
|
| |
VOE8192122
|
[1] |
Crankshaft
|
ENG 106090 -, 9 hole
|
| 6. |
VOE422253
|
[1] |
Key
|
|
| 7. |
|
[6] |
Big end brg kit
|
|
| 8. |
|
[7] |
Mn bearing kit
|
|
| 9. |
|
[1] |
Thrust washer kit
|
|
| 10. |
VOE950677
|
[1] |
Pin
|
|
| 11. |
VOE864260
|
[1] |
Flywheel
|
ENG - 106089, 6 hole
|
| |
VOE3825732
|
[1] |
Flywheel
|
ENG 106090 -, 9 hole
|
| 12. |
VOE420314
|
[1] |
Gear ring
|
|
| 13. |
VOE465825
|
[6-9] |
Screw
|
|
| 14. |
VOE471528
|
[1] |
Gear
|
|
| 15. |
VOE4772218
|
[1] |
Hub
|
|
| 16. |
VOE420124
|
[1] |
Washer
|
|
| 17. |
VOE470366
|
[1] |
Screw
|
|
| 18. |
VOE421515
|
[1] |
Vibration damper
|
|
| 19. |
VOE467834
|
[1] |
Sign
|
|
| 20. |
VOE4772217
|
[1] |
Pulley
|
|
| 21. |
VOE4772220
|
[1] |
Pulley
|
|
| 22. |
VOE4772247
|
[8] |
Screw
|
|
| 23. |
VOE465779
|
[1] |
Hub
|
|
| 24. |
VOE13965187
|
[4] |
Screw
|
|
