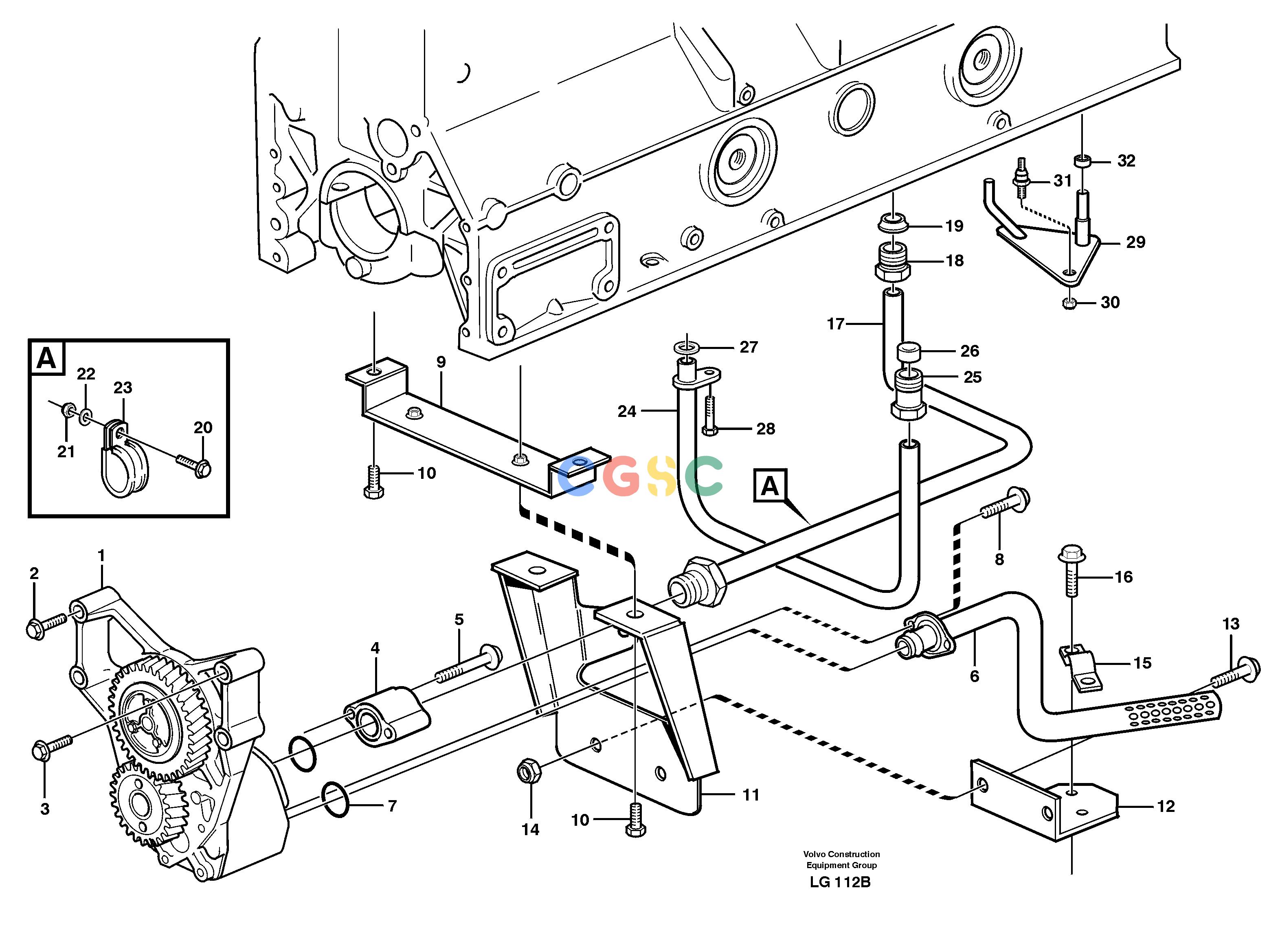

沃尔沃零件查询EC200 Lubricating oil systemSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE477547
|
[1] |
Oil pump
|
|
| 2. |
VOE471513
|
[4] |
Screw
|
|
| 3. |
VOE471734
|
[2] |
Screw
|
|
| 4. |
VOE465846
|
[1] |
Sleeve
|
|
| 5. |
VOE968553
|
[2] |
Flange screw
|
L = 115 mm
|
| |
VOE13965184
|
[2] |
Flange screw
|
L = 100 mm
|
| |
VOE969225
|
[2] |
Flange screw
|
L = 120 mm
|
| 6. |
VOE11030734
|
[1] |
Suction pipe
|
|
| 7. |
VOE470383
|
[2] |
Sealing ring
|
|
| 8. |
VOE13965183
|
[2] |
Flange screw
|
|
| 9. |
VOE11030718
|
[1] |
Bracket
|
|
| 10. |
VOE946440
|
[4] |
Flange screw
|
|
| 11. |
VOE11030725
|
[1] |
Baffle plate
|
|
| 12. |
VOE11030720
|
[1] |
Bracket
|
|
| 13. |
VOE946440
|
[2] |
Flange screw
|
|
| 14. |
VOE946036
|
[2] |
Lock nut
|
|
| 15. |
VOE11030722
|
[1] |
Clamp
|
|
| 16. |
VOE13946544
|
[2] |
Screw
|
|
| 17. |
VOE420994
|
[1] |
Oil feed pipe
|
|
| 18. |
VOE471588
|
[1] |
Connector
|
|
| 19. |
VOE980786
|
[1] |
Ferrule
|
|
| 20. |
VOE946440
|
[1] |
Flange screw
|
|
| 21. |
VOE13945408
|
[1] |
Nut
|
|
| 22. |
VOE13955894
|
[1] |
Washer
|
|
| 23. |
VOE1545433
|
[1] |
Clamp
|
|
| 24. |
VOE420996
|
[1] |
Oil feed pipe
|
|
| 25. |
VOE471595
|
[1] |
Connector
|
|
| 26. |
VOE980786
|
[1] |
Ferrule
|
|
| 27. |
VOE471956
|
[1] |
Sealing ring
|
|
| 28. |
VOE946440
|
[1] |
Flange screw
|
|
| 29. |
VOE477437
|
[6] |
Nozzle
|
|
| 30. |
VOE13948570
|
[6] |
Lock nut
|
|
| 31. |
VOE471596
|
[6] |
Stud
|
|
| 32. |
VOE466874
|
[6] |
Sealing ring
|
|
