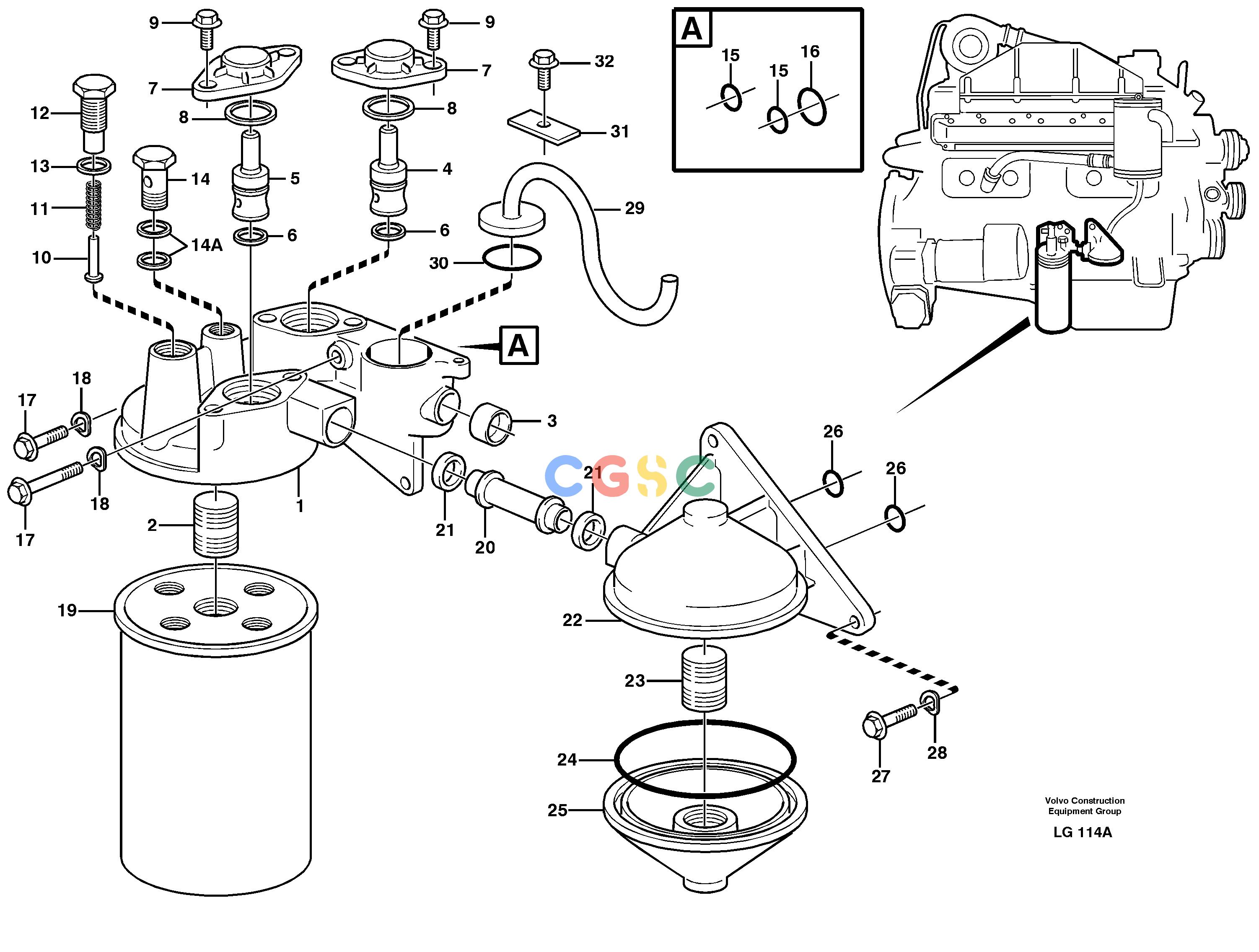

沃尔沃零件查询EC200 Oil filterSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE420928
|
[1] |
Oil filter housing
|
|
| 1. |
VOE421637
|
[1] |
Oil filter housing
|
|
| 2. |
VOE466623
|
[1] |
Nipple
|
|
| 3. |
VOE13948811
|
[1] |
Cap plug
|
|
| 4. |
VOE471812
|
[1] |
Valve
|
BL
|
| |
VOE466445
|
[1] |
Compression spring
|
|
| 5. |
VOE471640
|
[1] |
Reduction valve
|
RED
|
| 6. |
VOE469846
|
[2] |
Sealing ring
|
|
| 7. |
VOE471648
|
[2] |
Cover
|
|
| 8. |
VOE949659
|
[2] |
O-ring
|
|
| 9. |
VOE13946544
|
[4] |
Screw
|
|
| 10. |
VOE471085
|
[1] |
Valve cone
|
|
| 11. |
VOE466653
|
[1] |
Compression spring
|
|
| 12. |
VOE471598
|
[1] |
Plug
|
|
| 13. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 14. |
VOE941686
|
[1] |
Hollow screw
|
|
| 14A. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 15. |
VOE13949656
|
[2] |
O-ring
|
D = 19,2: (949656)
|
| 16. |
VOE13949722
|
[1] |
O-ring
|
D = 36,2
|
| 17. |
VOE946329
|
[2] |
Flange screw
|
L = 25
|
| |
VOE60113101
|
[1] |
Flange screw
|
L = 65
|
| 18. |
VOE941908
|
[3] |
Spring washer
|
|
| 19. |
VOE21707134
|
[1] |
Oil Filter
|
|
| 20. |
VOE465857
|
[1] |
Tube
|
|
| 21. |
VOE471956
|
[2] |
Sealing ring
|
|
| |
VOE421672
|
[1] |
Housing
|
|
| 22. |
VOE471601
|
[1] |
Bracket
|
|
| 23. |
VOE469904
|
[1] |
Nipple
|
|
| 24. |
VOE13948981
|
[1] |
O-ring
|
|
| 25. |
VOE3812509
|
[1] |
Casing
|
|
| 26. |
VOE13949656
|
[2] |
O-ring
|
|
| 27. |
VOE946329
|
[3] |
Flange screw
|
|
| 28. |
VOE941908
|
[3] |
Spring washer
|
|
| 29. |
VOE11032938
|
[1] |
Oil return pipe
|
|
| 30. |
VOE22194880
|
[1] |
Sealing ring
|
|
| 31. |
VOE848318
|
[1] |
Sstiker plate
|
|
| 32. |
VOE946440
|
[1] |
Flange screw
|
TD 63 KHE
|
