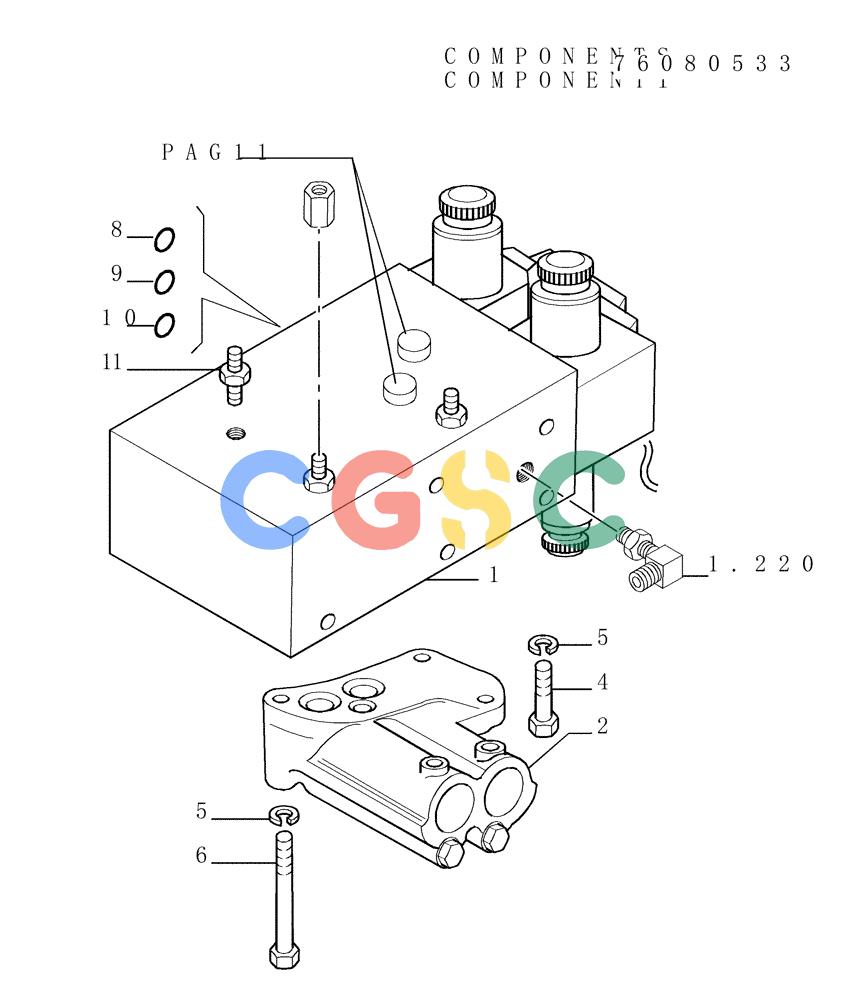

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (1.211[10]) - TRANSMISSION - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
463 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 76046370 | [1] | DAMPING VALVE | LEC- ASSY SEE PAG.12 |
| 4. | 15970931 | [2] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9 | LEC Superseded by part number: 15970934 |
| 5. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 11343731 | [1] | SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9 | LEC Superseded by part number: |
| 8. | 14453081 | [6] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro | LEC |
| 9. | 14455381 | [1] | O-RING,10.82mm ID x 1.78" Width | LEC Superseded by part number: 14455380 |
| 11. | 76054684 | [3] | HYD CONNECTOR | LEC |
| 10. | 14454781 | [1] | O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro | LEC |
