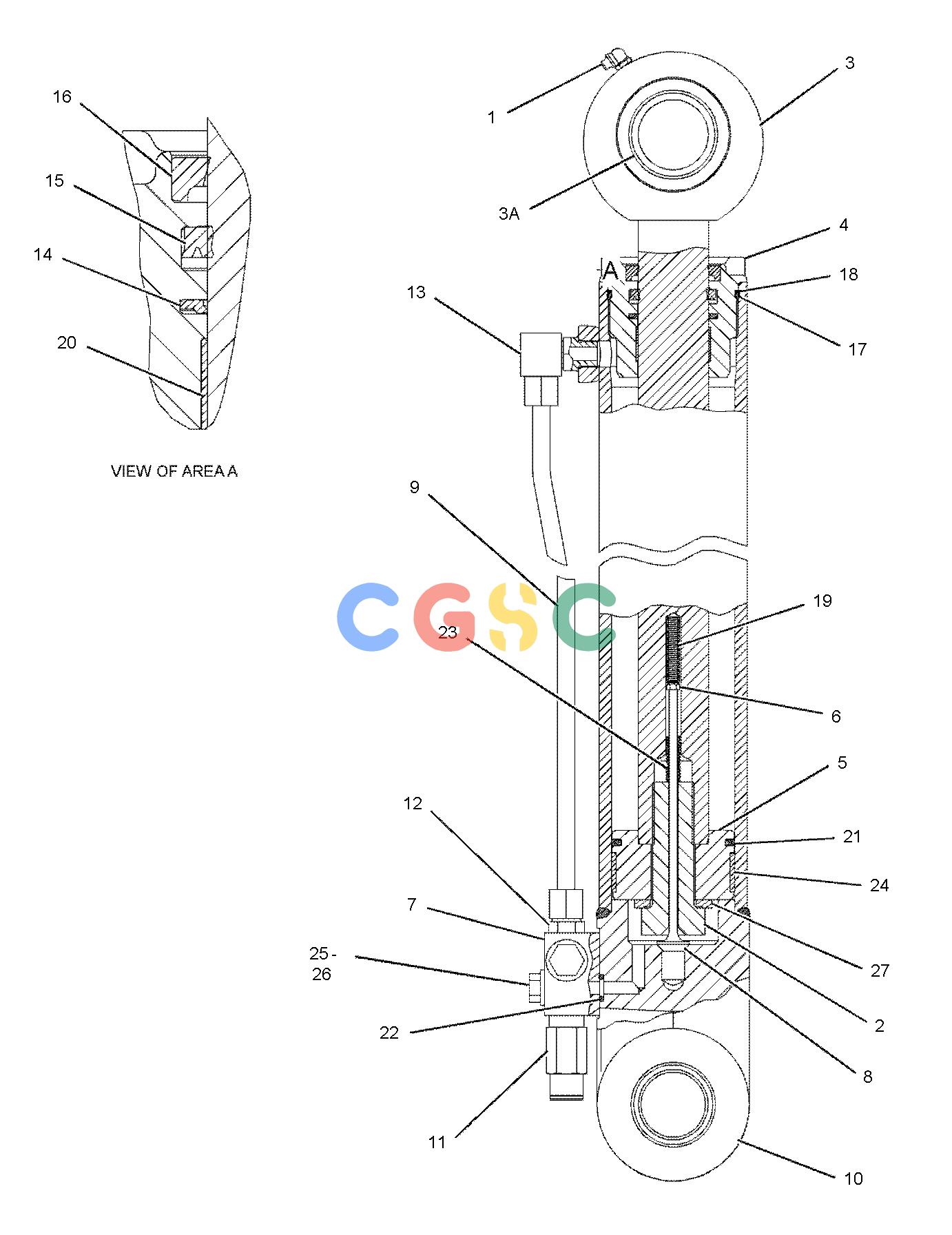

卡特零件查询（725） 212-6257: CYLINDER GP-HYDRAULIC
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 141-5864 | [1] | BOLT(M30X3.5X90-MM) | |
| 3. | 154-6413 | [1] | ROD AS | |
| 3A. | 6V-5002 | [1] | BEARING-ALIGNING | |
| 4. | 164-5475 | [1] | HEAD | |
| 5. | 169-6563 | [1] | PISTON | |
| 6. | 179-4324M | [1] | LOCKNUT(M5X0.8-THD) | |
| 7. | 191-4514 | [1] | MANIFOLD | |
| 8. | 204-0858 | [1] | VALVE | |
| 9. | 208-5662 | [1] | TUBE AS | |
| 10. | 209-5025 | [1] | CYLINDER AS | |
| 11. | 212-5953Y | [1] | VALVE GP-RELIEF(STEERING CYLINDER) | |
| 12. | 148-8340 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 13. | 148-8364 | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 14. | 289-2935J | [1] | SEAL AS-BUFFER | |
| 15. | 289-2946J | [1] | SEAL-U-CUP | |
| 16. | 308-1845J | [1] | SEAL-WIPER | |
| 17. | 2H-4145 | [1] | SEAL-O-RING | |
| 18. | 4J-9224J | [1] | RING-BACKUP | |
| 19. | 4M-5912 | [1] | SPRING | |
| 20. | 4T-5613J | [1] | RING-WEAR | |
| 21. | 4T-8054J | [1] | SEAL AS | |
| 22. | 5P-0840 | [1] | SEAL-O-RING | |
| 23. | 6E-3772 | [1] | SPRING | |
| 24. | 7J-9885J | [1] | RING-WEAR | |
| 25. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 27. | 9X-8399 | [1] | WASHER(33X56X6-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 228-1778J | [1] | KIT-SEAL(HYDRAULIC CYLINDER) | |
| | | | (INCLUDES RINGS & SEALS) |
| | | | (FOR USE WITH REHS1392) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
