神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-019) - FUEL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
533 次

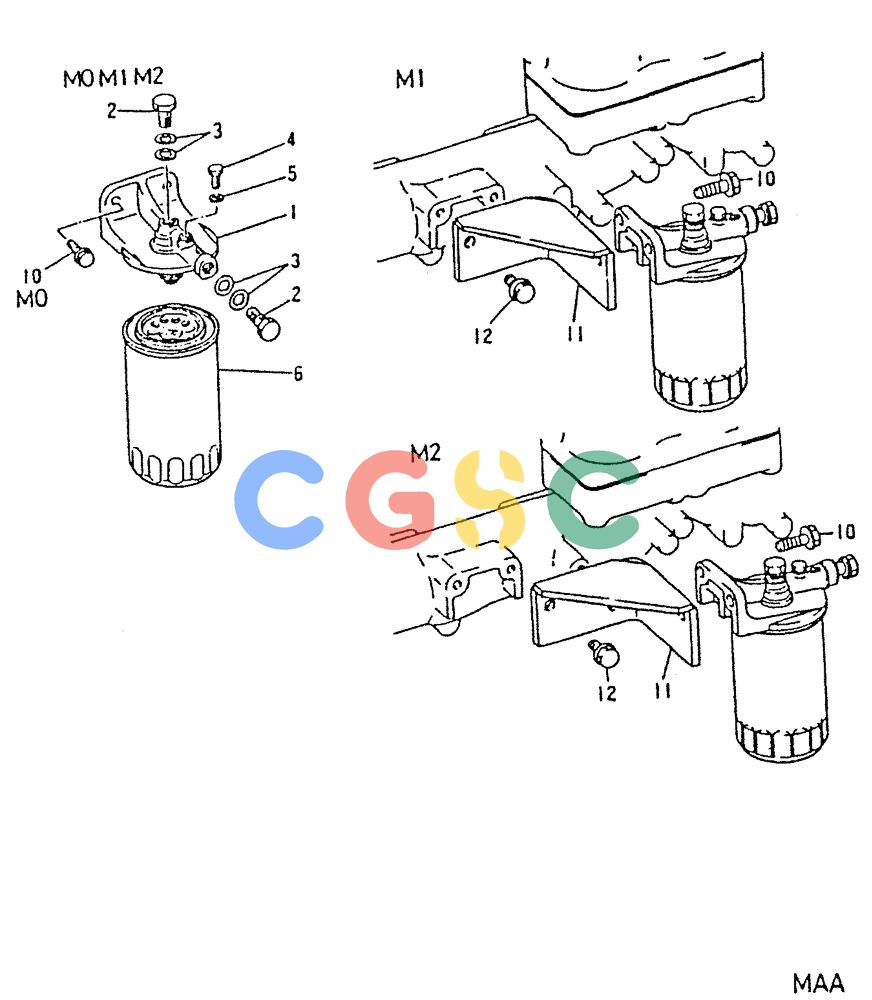

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME090010 | [1] | FUEL FILTER | KOB Superseded by part number: 302996A1 |
| 1. | VAME056279 | [1] | FILTER HEAD | KOB Superseded by part number: 133399A1 |
| 2. | VAMH037087 | [2] | BOLT | KOBBOLT, CONNECTOR |
| 3. | VAMH035166 | [4] | GASKET | KOBGASKET 14 Superseded by part number: 133378A1 |
| 4. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG, AIR VENT Superseded by part number: 77270641, VAME016894 |
| 5. | VAMH035164 | [1] | GASKET | KOBGASKET 8 Superseded by part number: 133379A1 |
| 6. | VAME056670 | [1] | ELEMENT | KOBASSY Superseded by part number: 84160262 |
| 10. | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10X25, M0 ONLY |
| . . | VAMF140258 | [2] | BOLT,FLANGE(10X20) BOLT, FLANGE 10X20, M1 & M2 ONLY | BOLT,FLANGE(10X20) BOLT, FLANGE 10X20, M1 & M2 ONLY |
| 11. | VAME059613 | [1] | BRACKET, FUEL FILTER, M1 ONLY | |
| . . | VAME050684 | [1] | M2 ONLY | |
| 12. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10X20, M1 & M2 ONLY |
