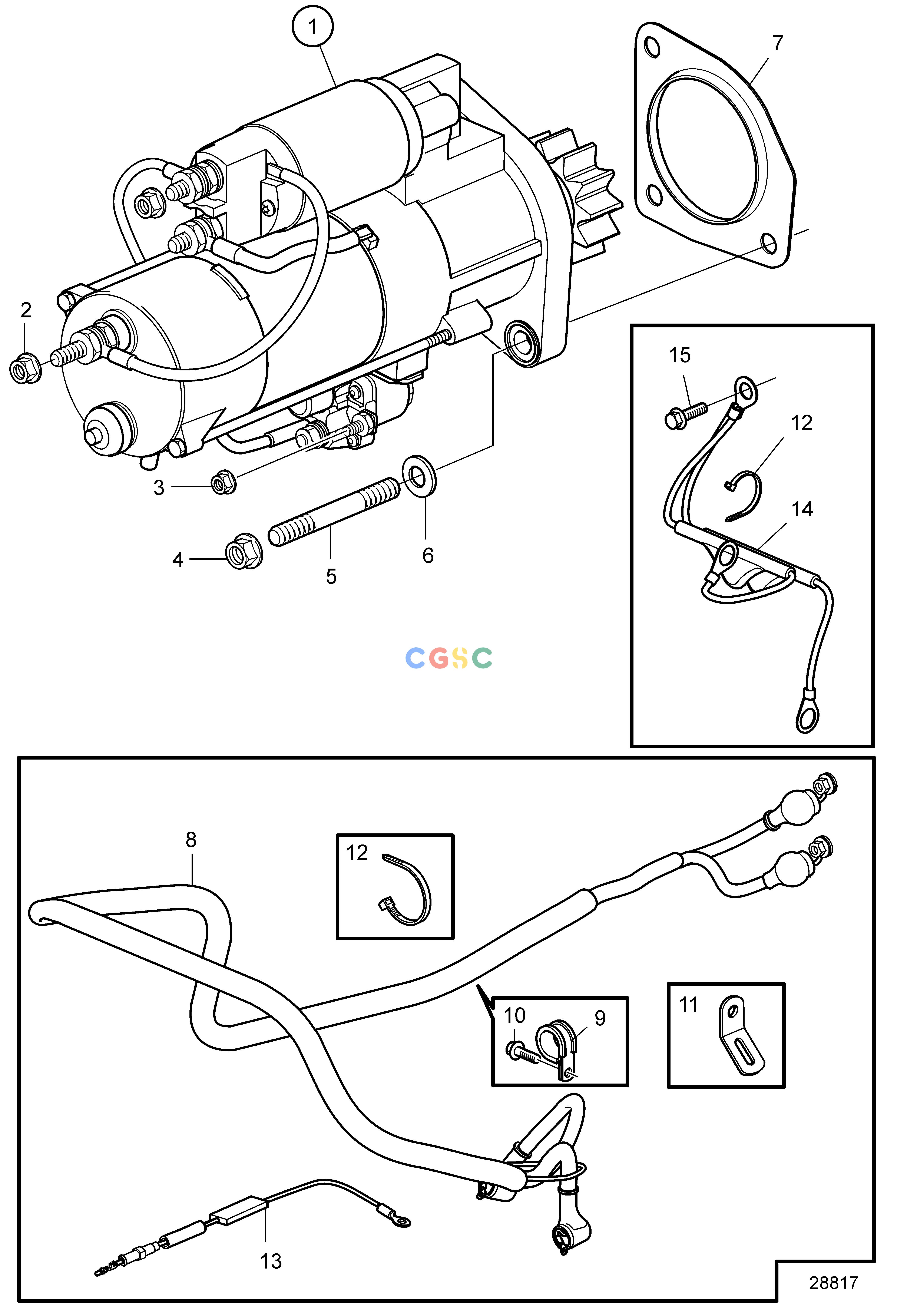

沃尔沃零件查询D11B1-A MP; D11B2-A MPElectrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
469 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21103701
|
[1] |
Starter motor
|
24V
|
| 1. |
3801287
|
[1] |
Starter motor, exch
|
24V
|
| 1. |
|
|
|
|
| 2. |
983716
|
[3] |
Hexagon nut
|
|
| 3. |
983714
|
[2] |
Hexagon nut
|
|
| 4. |
1543499
|
[3] |
Flange nut
|
|
| 5. |
953071
|
[3] |
Stud
|
|
| 6. |
955896
|
[3] |
Washer
|
|
| 7. |
21818936
|
[1] |
Gasket
|
|
| 8. |
21780397
|
[1] |
Wiring harness
|
For alternator
|
| 9. |
984948
|
[2] |
Clamp
|
|
| 10. |
984733
|
[2] |
Flange screw
|
|
| 11. |
965571
|
[1] |
Bracket
|
|
| 12. |
948211
|
[5] |
Cable tie
|
|
| 13. |
3889282
|
[1] |
Resistor
|
For alternator 24V
|
| 14. |
21546674
|
[1] |
Cable kit
|
|
| 15. |
984733
|
[1] |
Flange screw
|
|
