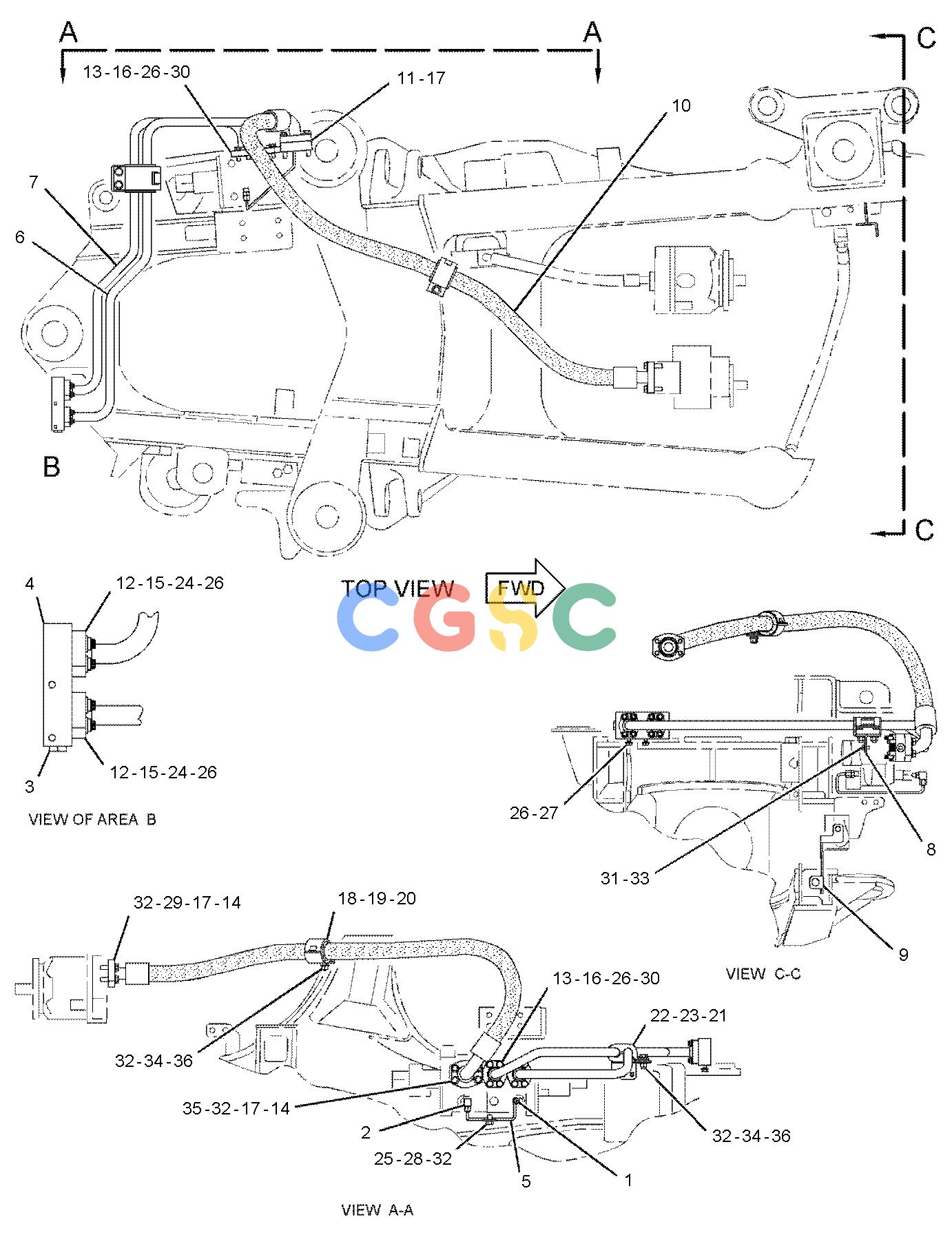

卡特零件查询（725） 149-0005: LINES GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-9764Y | [1] | VALVE GP-CHECK | |
| 2. | 145-8587 | [1] | VALVE GP-LOWERING CONTROL(TRUCK BODY) | |
| 3. | 6V-8641 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 4. | 6V-8639 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 5. | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 6. | 6V-8628 | [1] | ELBOW | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 7. | 172-0086 | [1] | MANIFOLD | |
| 8. | 173-8522 | [1] | TUBE AS | |
| 9. | 173-8523 | [1] | TUBE AS | |
| 10. | 173-9686 | [1] | TUBE AS | |
| 11. | 173-9687 | [1] | TUBE AS | |
| 12. | 173-9951I | [1] | HOSE AS | |
| 13. | 183-3798 | [1] | BRACKET | |
| 14. | 193-5317I | [1] | HOSE AS | |
| 15. | 193-5319I | [1] | HOSE AS | |
| 16. | 193-5320I | [1] | HOSE AS | |
| 17. | 193-5321 | [1] | TUBE AS | |
| 18. | 193-5326 | [1] | BRACKET | |
| 19. | 193-5327 | [1] | BRACKET | |
| 20. | 194-5006 | [1] | BRACKET | |
| 21. | 196-8863 | [1] | TUBE AS | |
| 22. | 118-9573M | [8] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 23. | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 24. | 8T-6876 | [2] | ELBOW | |
| | 3J-1907 | [2] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 25. | 8T-6895 | [1] | TEE-UNION | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| 26. | 6V-8995 | [1] | UNION(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 27. | 1P-3705 | [1] | SEAL-RECTANGULAR | |
| 28. | 1P-4578 | [4] | FLANGE-HALF | |
| 29. | 1P-4579 | [4] | FLANGE-HALF | |
| 30. | 3U-2428 | [5] | CLAMP-PIPE | |
| 31. | 4J-0520 | [2] | SEAL-O-RING | |
| 32. | 4J-0522 | [2] | SEAL-O-RING | |
| 33. | 4J-0524 | [2] | SEAL-O-RING | |
| 34. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 35. | 5P-7468 | [1] | CLIP(SLOT) | |
| 36. | 5P-7469 | [1] | CLIP(TAB) | |
| 37. | 5P-8444 | [1] | GROMMET(37-MM ID) | |
| 38. | 6V-8398 | [2] | SEAL-O-RING | |
| 39. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 40. | 7G-3833 | [1] | CLIP(TAB) | |
| 41. | 7G-3834 | [1] | CLIP(SLOT) | |
| 42. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 43. | 8C-3174 | [1] | GROMMET | |
| 44. | 8C-3206 | [4] | FLANGE-HALF | |
| 45. | 8T-1885 | [5] | CLIP(SLOT) | |
| 46. | 8T-1886 | [5] | CLIP(TAB) | |
| 47. | 8T-4121 | [27] | WASHER-HARD(11X21X2.5-MM THK) | |
| 48. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 49. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 50. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 51. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 52. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 53. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 54. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 55. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 56. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 57. | 8T-4223 | [17] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 58. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 59. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 60. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 61. | 8T-6868M | [4] | BOLT(M12X1.75X80-MM) | |
| 62. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
