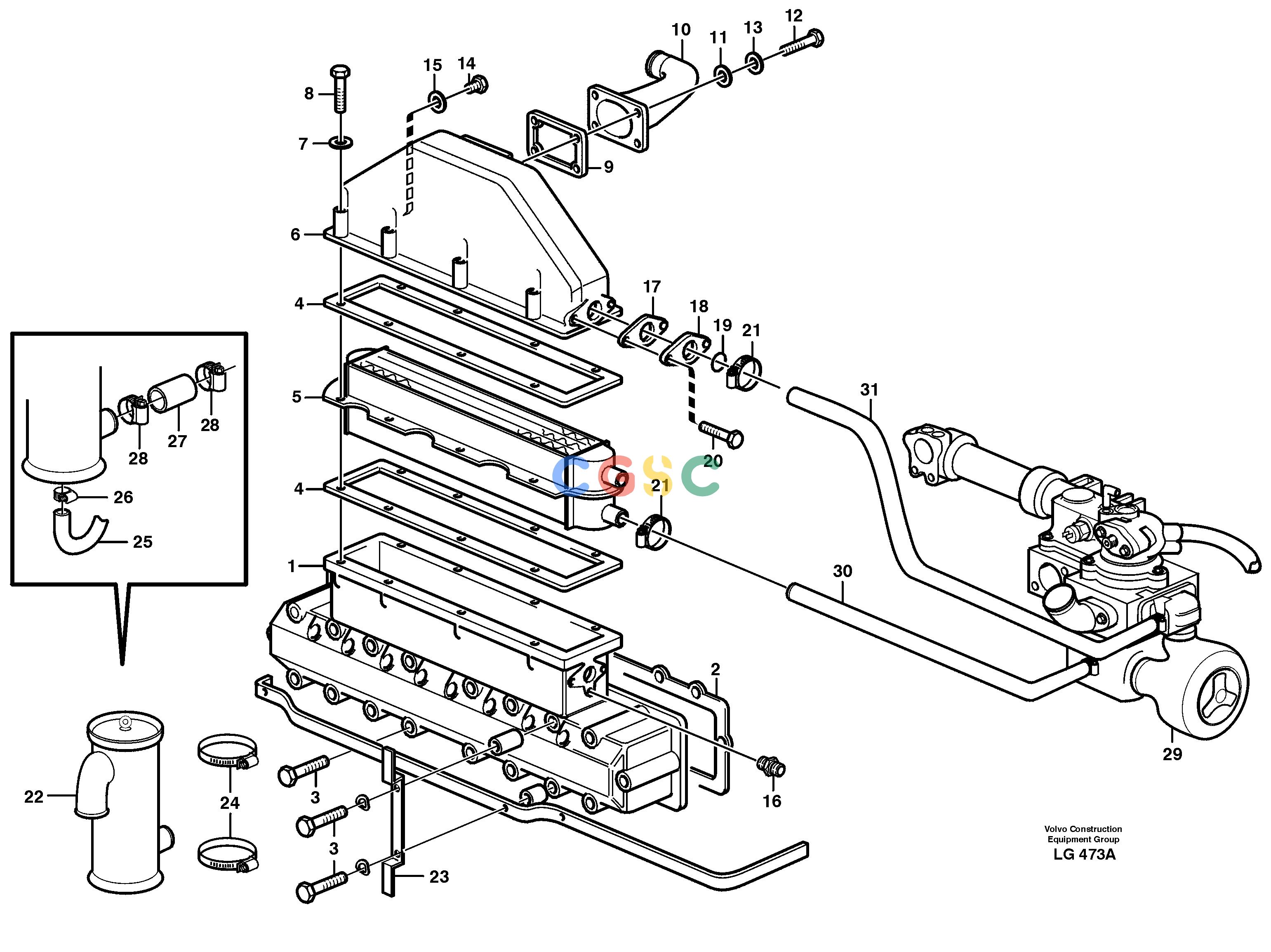

沃尔沃零件查询EC200 IntercoolerSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Inlet manifold
|
|
| 2. |
VOE3829434
|
[2] |
Gasket
|
|
| 3. |
VOE13965183
|
[18] |
Flange screw
|
M 8 X 90
|
| |
VOE984745
|
[4] |
Flange screw
|
M 8 X 120
|
| 4. |
VOE845515
|
[2] |
Gasket
|
|
| 5. |
VOE863489
|
[1] |
Charge air cooler
|
|
| 6. |
VOE849429
|
[1] |
Cover
|
|
| 7. |
VOE13941907
|
[8] |
Washer
|
|
| 8. |
VOE13965181
|
[8] |
Screw
|
|
| 9. |
VOE862620
|
[1] |
Gasket
|
|
| 10. |
VOE846793
|
[1] |
Connection pipe
|
|
| 11. |
VOE955892
|
[4] |
Plain washer
|
|
| 12. |
VOE955273
|
[4] |
Hexagon screw
|
|
| 13. |
VOE13941906
|
[4] |
Washer
|
|
| 14. |
VOE940199
|
[1] |
Hexagon screw
|
|
| 15. |
VOE957171
|
[1] |
Gasket
|
|
| 16. |
VOE13954378
|
[1] |
Nipple
|
|
| 17. |
VOE862619
|
[2] |
Gasket
|
|
| 18. |
VOE846896
|
[2] |
Flange
|
|
| 19. |
VOE925057
|
[2] |
O-ring
|
|
| 20. |
VOE955273
|
[4] |
Hexagon screw
|
|
| 21. |
VOE943475
|
[2] |
Hose clamp
|
|
| 22. |
VOE11033878
|
[1] |
Oil trap
|
|
| 23. |
VOE11032912
|
[1] |
Bracket
|
|
| 24. |
VOE943483
|
[2] |
Hose clamp
|
|
| 25. |
VOE983342
|
[1] |
Hose
|
|
| 26. |
VOE943470
|
[2] |
Hose clamp
|
|
| 27. |
VOE11032676
|
[1] |
Hose
|
|
| 28. |
VOE943476
|
[2] |
Hose clamp
|
|
| 29. |
|
[1] |
Water pump
|
|
| 30. |
VOE943368
|
[REQ] |
Hose
|
L = 400 mm
|
| 31. |
VOE943368
|
[REQ] |
Hose
|
L = 440 mm
|
