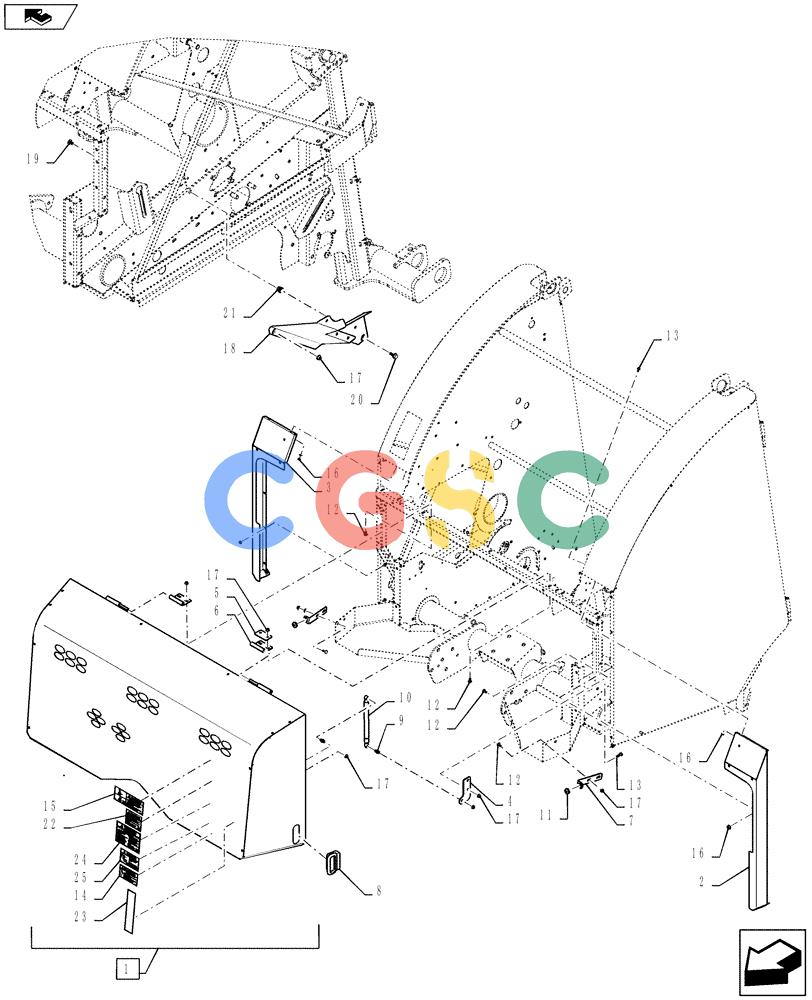

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (90.105.05) - NET SHIELDS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84359288
|
[1] |
DOOR COVER
|
NH
Net Storage
|
| 2. |
84133457
|
[1] |
FILLER
|
NH
LH
|
| 3. |
84133459
|
[1] |
FILLER
|
NH
RH
|
| 4. |
84133483
|
[1] |
PLATE
|
NH
|
| 5. |
84133485
|
[1] |
PLATE
|
NH
|
| 6. |
84133475
|
[2] |
HINGE
|
NH
|
| 7. |
84133484
|
[2] |
ANGLE
|
NH
|
| 8. |
3962571
|
[1] |
HANDLE
|
BEL
Superseded by part number: E7NN6N084AA
|
| 9. |
86634307
|
[2] |
STUD
|
NH
Superseded by part number: 87603835
|
| 10. |
86536003
|
[1] |
SPRING
|
PA
|
| 11. |
174265
|
[2] |
GROMMET
|
NH
|
| 12. |
86507486
|
[10] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
86050272
|
[16] |
BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd
|
NH
|
| 14. |
86632699
|
[1] |
WARNING DECAL
|
PA
|
| 15. |
84337031
|
[1] |
DANGER DECAL
|
NH
|
| 16. |
9804276
|
[16] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 17. |
9804277
|
[15] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 18. |
84362664
|
[1] |
PROTECTION PLATE
|
NH
|
| 19. |
86619060
|
[1] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 20. |
9804258
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 21. |
86610200
|
[1] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 22. |
86622073
|
[1] |
WARNING DECAL
|
NH
|
| 23. |
86547782
|
[1] |
REFLECTOR,YELLOW
|
NH
Yellow Retroreflective
|
| 24. |
87041060
|
[1] |
WARNING DECAL
|
BEL
|
| 25. |
87014378
|
[1] |
WARNING DECAL
|
PA
|
