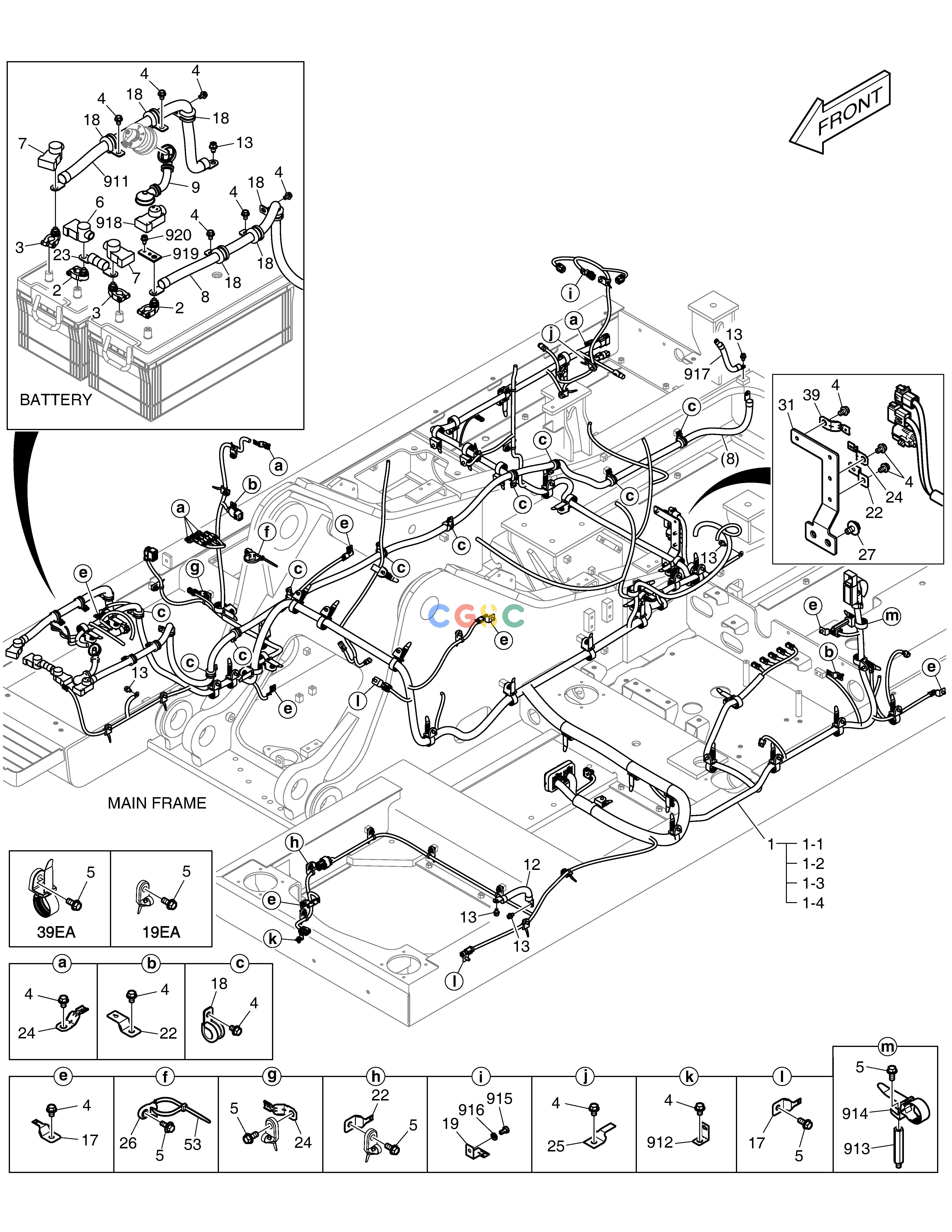

斗山零件查询ELECTRIC WIRING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02152
|
[-] |
|
|
| 1. |
310207-03410B
|
[1] |
|
|
| 1-1. |
120402-00439
|
[1] |
CLIP
|
|
| 1-2. |
120402-00440
|
[1] |
CLIP
|
|
| 1-3. |
K1000815
|
[2] |
DIODE
|
|
| 1-4. |
2548-1027
|
[2] |
DIODE
|
|
| 12. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 13. |
120106-00701
|
[6] |
BOLT
|
|
| 17. |
2197-1661
|
[9] |
BRACKET
|
|
| 18. |
124-00208D3
|
[16] |
CLIP
|
|
| 19. |
2195-3500
|
[1] |
BRACKET
|
|
| 2. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 22. |
110406-02674
|
[4] |
|
|
| 23. |
310203-03207
|
[1] |
|
|
| 24. |
110406-02760A
|
[7] |
BRACKET
|
|
| 25. |
195-02154
|
[1] |
BRACKET
|
|
| 26. |
110420-00330
|
[1] |
BRACKET
|
|
| 27. |
DS0025014
|
[2] |
BOLT
|
|
| 3. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 31. |
110406-03878
|
[1] |
|
|
| 39. |
110406-02761A
|
[1] |
|
|
| 4. |
K1001029
|
[36] |
BOLT
|
|
| 5. |
120106-00596
|
[66] |
BOLT
|
|
| 53. |
310101-00035
|
[1] |
TIE,CABLE
|
|
| 6. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 7. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 8. |
DS4531149
|
[1] |
|
|
| 9. |
310203-06954
|
[1] |
|
|
| 911. |
2553-1275D122
|
[1] |
|
|
| 912. |
110406-02676
|
[1] |
|
|
| 913. |
DS0026010
|
[1] |
|
|
| 914. |
120402-00439
|
[1] |
CLIP
|
|
| 915. |
S0504453
|
[1] |
BOLT
|
|
| 916. |
S5102303
|
[1] |
. WASHER
|
|
| 917. |
553-00001D4
|
[1] |
CABLE;E/G EARTH
|
|
| 918. |
180308-00628
|
[1] |
|
|
| 919. |
110406-03986
|
[1] |
|
|
| 920. |
120106-00702
|
[1] |
BOLT
|
|
