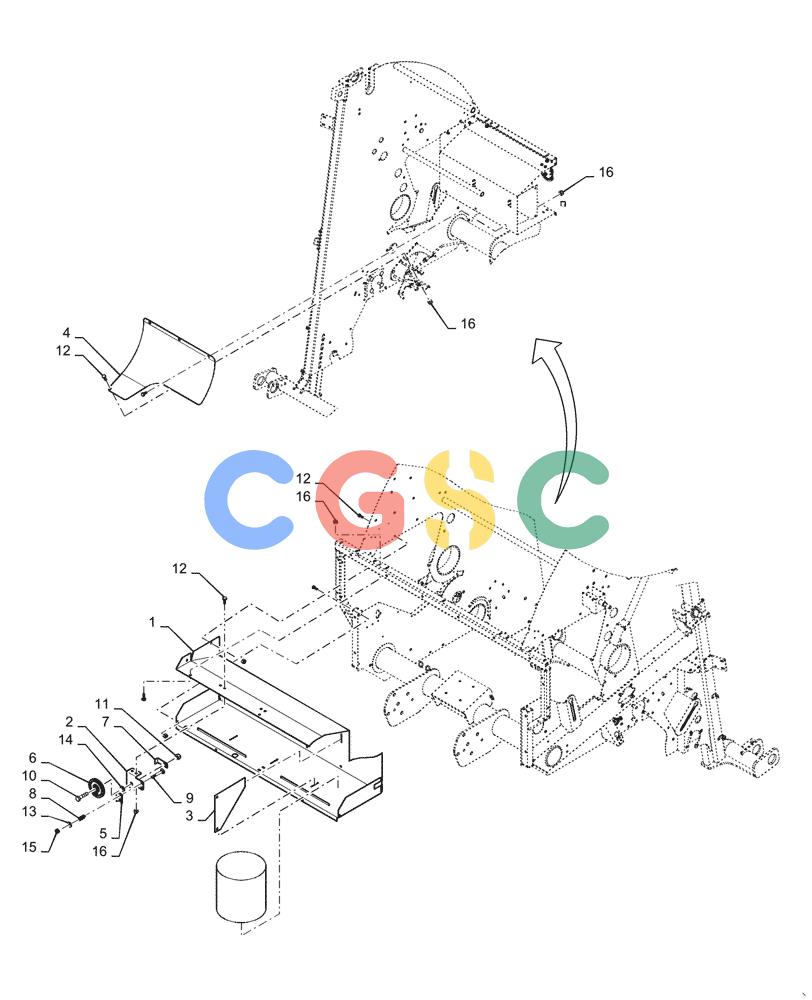

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (90.105.09) - TWINE BOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84235145
|
[1] |
TWINE BOX
|
NH
|
| 2. |
84237857
|
[2] |
MOUNT
|
NH
|
| 3. |
86551339
|
[2] |
DIVIDER
|
NH
|
| 4. |
84257132
|
[1] |
SHIELD
|
NH
|
| 5. |
9820171
|
[2] |
BRACKET
|
NH
|
| 6. |
87038785
|
[2] |
PULLEY ASSY.
|
NH
|
| 7. |
86629062
|
[2] |
GUIDE
|
NH
|
| 8. |
29840
|
[4] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 9. |
86511840
|
[4] |
BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8
|
NH
|
| 10. |
9804263
|
[2] |
BOLT,M10 x 49.2mm, Cl 8.8
|
NH
|
| 11. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
9804258
|
[17] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
80701
|
[4] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 14. |
140017
|
[4] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 15. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 16. |
9804277
|
[16] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
