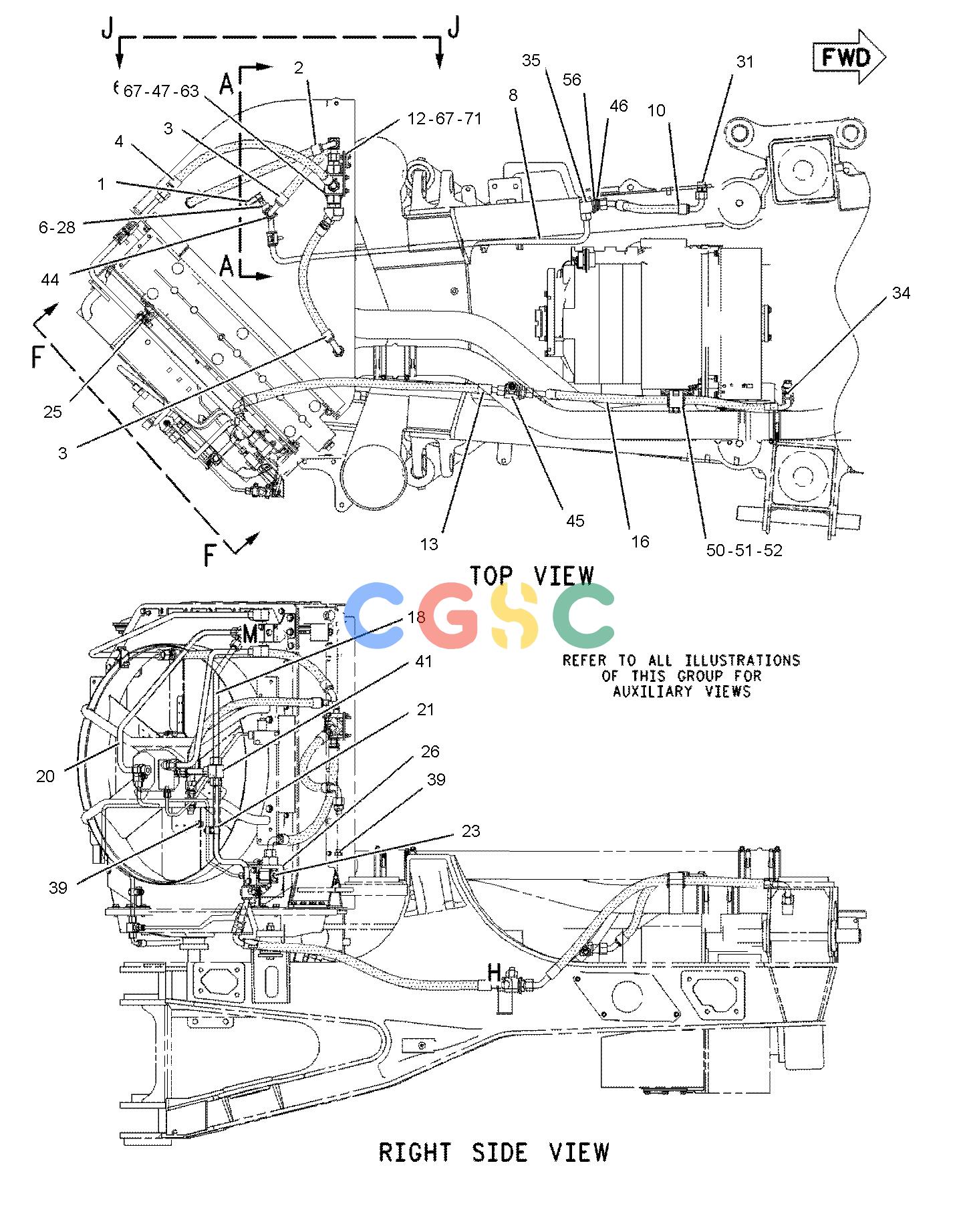

卡特零件查询（725） 210-5882: LINES GP-HYDRAULIC FAN
广数供应链运营团队, 14 02月, 2025，浏览：
982 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 2. | 113-6380I | [1] | HOSE AS | |
| 3. | 121-3286I | [2] | HOSE AS | |
| 4. | 135-7902I | [1] | HOSE AS | |
| 5. | 148-8430 | [1] | TEE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 6. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(HYDRAULIC FAN OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING | |
| 7. | 174-6781 | [1] | TUBE AS | |
| 8. | 174-6782 | [1] | TUBE AS | |
| 9. | 174-6886 | [1] | BLOCK-MANIFOLD | |
| 10. | 174-8665I | [1] | HOSE AS | |
| 11. | 178-8903 | [1] | TUBE AS | |
| 12. | 178-8977 | [1] | PLATE AS | |
| 13. | 185-9398I | [1] | HOSE AS | |
| 14. | 188-8726 | [1] | VALVE-BYPASS(HYDRAULIC FAN FLUID FLOW) | |
| 15. | 190-6289 | [1] | PLATE | |
| 16. | 219-6692I | [1] | HOSE AS | |
| 17. | 193-9230 | [1] | VALVE GP-CHECK(HYDRAULIC FAN FLUID FLOW) | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 18. | 194-0772 | [1] | TUBE AS | |
| 19. | 194-0773 | [1] | TUBE AS | |
| 20. | 194-0774 | [1] | TUBE AS | |
| 21. | 194-0775 | [1] | TUBE AS | |
| 22. | 194-1497 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8900 | [1] | TEE-O-RING PORT | |
| 23. | 194-2530Y | [1] | VALVE & MTG GP-HYDRAULIC FAN | |
| 24. | 211-3375 | [1] | TUBE AS | |
| 25. | 211-3376 | [1] | TUBE AS | |
| 26. | 211-3377 | [1] | PLATE | |
| 27. | 211-6062 | [1] | VALVE GP-CHECK(HYDRAULIC FAN FLUID FLOW) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 28. | 148-8305 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-9617 | [1] | ADAPTER | |
| 29. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 30. | 148-8324 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 31. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 32. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 33. | 148-8339 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8716 | [1] | CONNECTOR(STRAIGHT) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 34. | 148-8347 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 35. | 148-8376 | [1] | ELBOW AS | |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 36. | 148-8379 | [1] | ELBOW AS | |
| | 1J-9671 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 7X-0901 | [1] | ELBOW | |
| 37. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 38. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 39. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 40. | 148-8417 | [1] | REDUCER AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8941 | [1] | REDUCER | |
| 41. | 148-8451 | [1] | TEE AS | |
| | 6V-8791 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 42. | 150-4033 | [1] | TEE AS | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9846 | [1] | TEE | |
| 43. | 150-4049 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-4149 | [1] | ELBOW | |
| 44. | 164-6861 | [1] | UNION AS | |
| | 6V-8733 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 45. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 46. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 47. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 48. | 5P-7462 | [3] | CLIP(SLOT) | |
| 49. | 5P-7463 | [3] | CLIP(TAB) | |
| 50. | 5P-7466 | [1] | CLIP(SLOT) | |
| 51. | 5P-7467 | [1] | CLIP(TAB) | |
| 52. | 5P-8112 | [1] | GROMMET | |
| 53. | 5P-9297 | [2] | CLIP(LOOP) | |
| 54. | 6V-0683 | [3] | GROMMET | |
| 55. | 6V-9746 | [2] | SEAL-O-RING | |
| 56. | 7X-0531 | [1] | WASHER-HARD(31X52.5X6-MM THK) | |
| 58. | 8T-1887 | [2] | CLIP(SLOT) | |
| 59. | 8T-1888 | [2] | CLIP(TAB) | |
| 60. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 61. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 62. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 63. | 8T-4177M | [2] | BOLT(M8X1.25X90-MM) | |
| 64. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 65. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 66. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 67. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 68. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 70. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 71. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 72. | 9X-6580 | [1] | NUT(1-3/16-12-THD) | |
| 73. | 9X-8258 | [1] | WASHER(33X56X6-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
