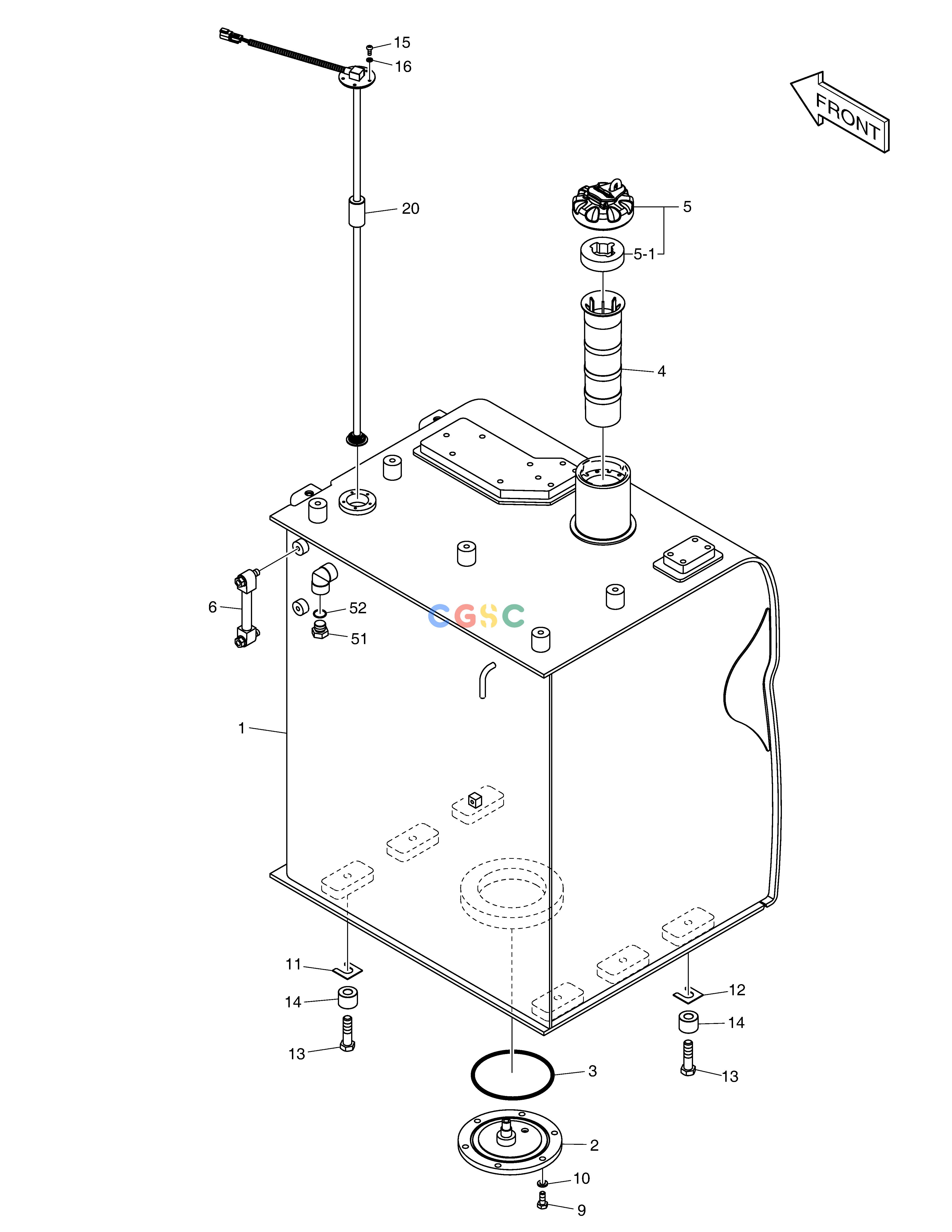

斗山零件查询FUEL TANK DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450103-00461
|
[-] |
|
|
| 1. |
450103-00550A
|
[1] |
|
|
| 10. |
S5102603
|
[6] |
. WASHER
|
|
| 11. |
2114-1813
|
[3] |
SHIM,0.8T
|
|
| 12. |
2114-1814
|
[3] |
SHIM,1.6T
|
|
| 13. |
S0565466
|
[6] |
BOLT
|
|
| 14. |
114-00425
|
[6] |
SPACER
|
|
| 15. |
S3450833
|
[5] |
BOLT
|
|
| 16. |
S5100203
|
[5] |
WASHER
|
|
| 2. |
110508-03069A
|
[1] |
COVER,TANK
|
|
| 20. |
301316-00080
|
[1] |
|
|
| 3. |
S8011450
|
[1] |
O-RING
|
|
| 4. |
471-00105A
|
[1] |
FILTER,FUEL STRAINER
|
|
| 5. |
110911-00126
|
[1] |
|
|
| 5-1. |
400504-00045
|
[1] |
. ELEMENT,FUEL CAP
|
|
| 51. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 51. |
DS2901008
|
[1] |
. PLUG
|
|
| 52. |
S8000181
|
[1] |
O-RING
|
|
| 6. |
K1057054
|
[1] |
GAUGE,LEVEL
|
|
| 9. |
S0512066
|
[6] |
. BOLT
|
|
