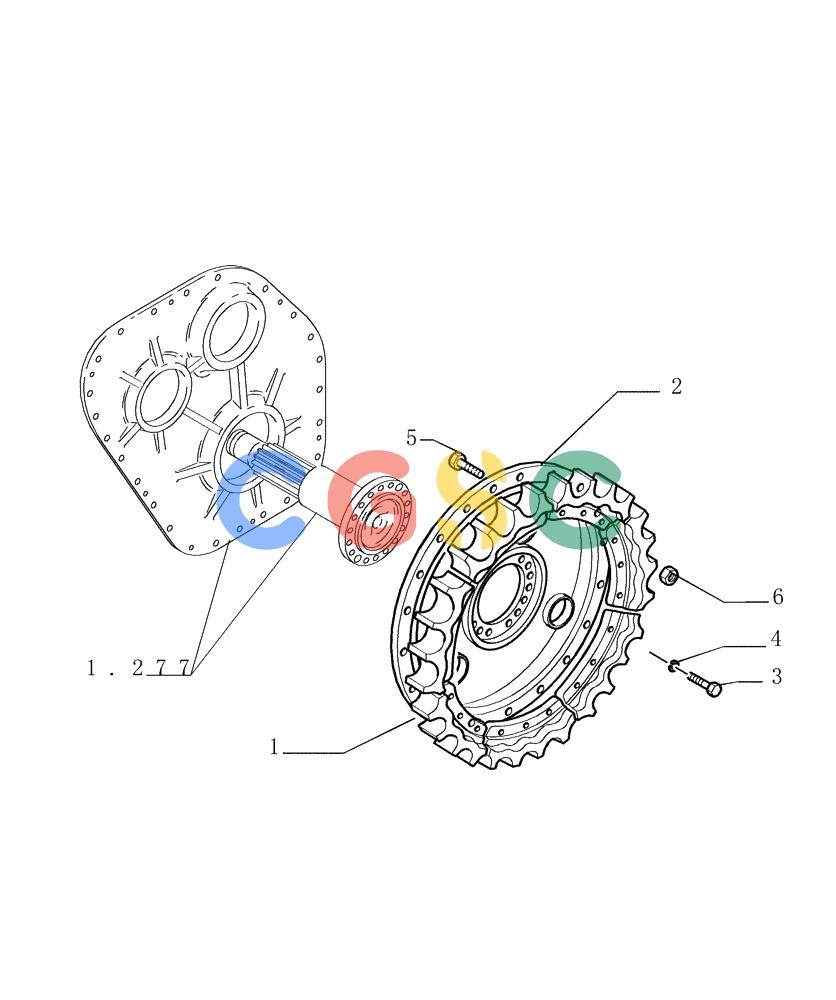

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (1.266[09]) - REAR TRANSMISSION - SPROCKET - VERSION (01-02-04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
194 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79106146 | [14] | TOOTHED SECTOR | LEC |
| 2. | 76049679 | [2] | FLANGE | LEC |
| 3. | 15997131 | [28] | BOLT,Hex, M24 x 2 x 60mm, Cl 10.9 | MKT Superseded by part number: 15997137 |
| 4. | 14497331 | [28] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24X44 Superseded by part number: 86511328 |
| 5. | 79074169 | [42] | BOLT,M18 x 1.5 x 60mm, Cl 10.9 | LEC |
| 6. | 79074170 | [42] | NUT | LEC |
