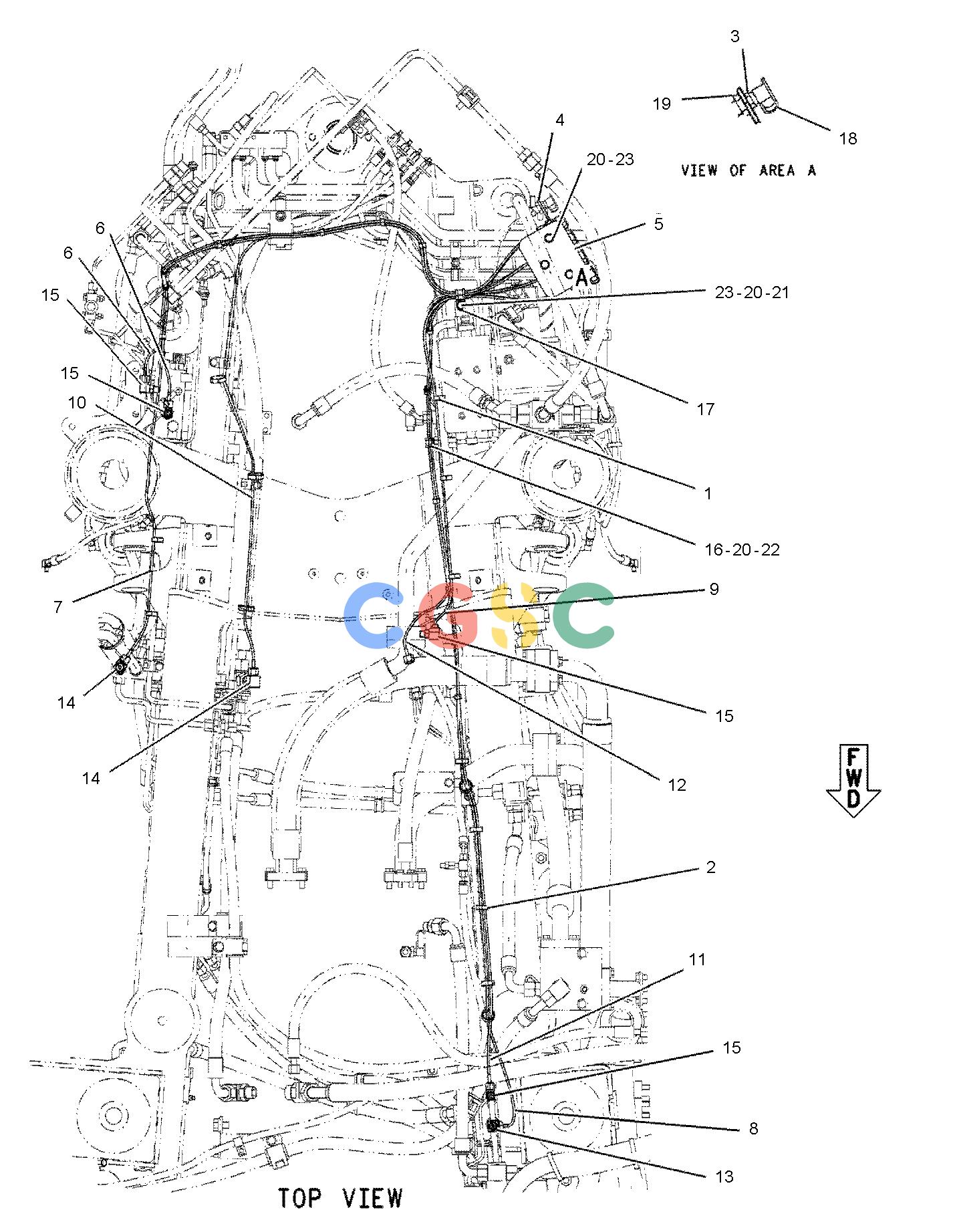

卡特零件查询（725） 184-6320: LINES GP-PRESSURE TEST
广数供应链运营团队, 14 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6L-7008 | [6] | STRAP-CABLE | |
| 2. | 7K-1181 | [21] | STRAP-CABLE | |
| 3. | 121-0530 | [8] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 4. | 185-2618 | [1] | BRACKET AS | |
| 5. | 185-2620 | [1] | PLATE | |
| 6. | 189-5343 | [2] | HOSE AS | |
| 7. | 189-5344 | [1] | HOSE AS | |
| 8. | 189-5345 | [1] | HOSE AS | |
| 9. | 189-5346 | [1] | HOSE AS | |
| 10. | 189-5347 | [1] | HOSE AS | |
| 11. | 189-5348 | [1] | HOSE AS | |
| 12. | 189-5349 | [1] | HOSE AS | |
| 13. | 148-8353 | [1] | ELBOW AS | |
| | 6V-9001 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9850 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 15. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 3U-2752 | [1] | CLIP(LOOP) | |
| 17. | 3U-2754 | [1] | CLIP(LOOP) | |
| 18. | 6V-0852 | [8] | CAP-DUST | |
| 19. | 6V-9168 | [8] | NUT(11/16-16-THD) | |
| 20. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 22. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
