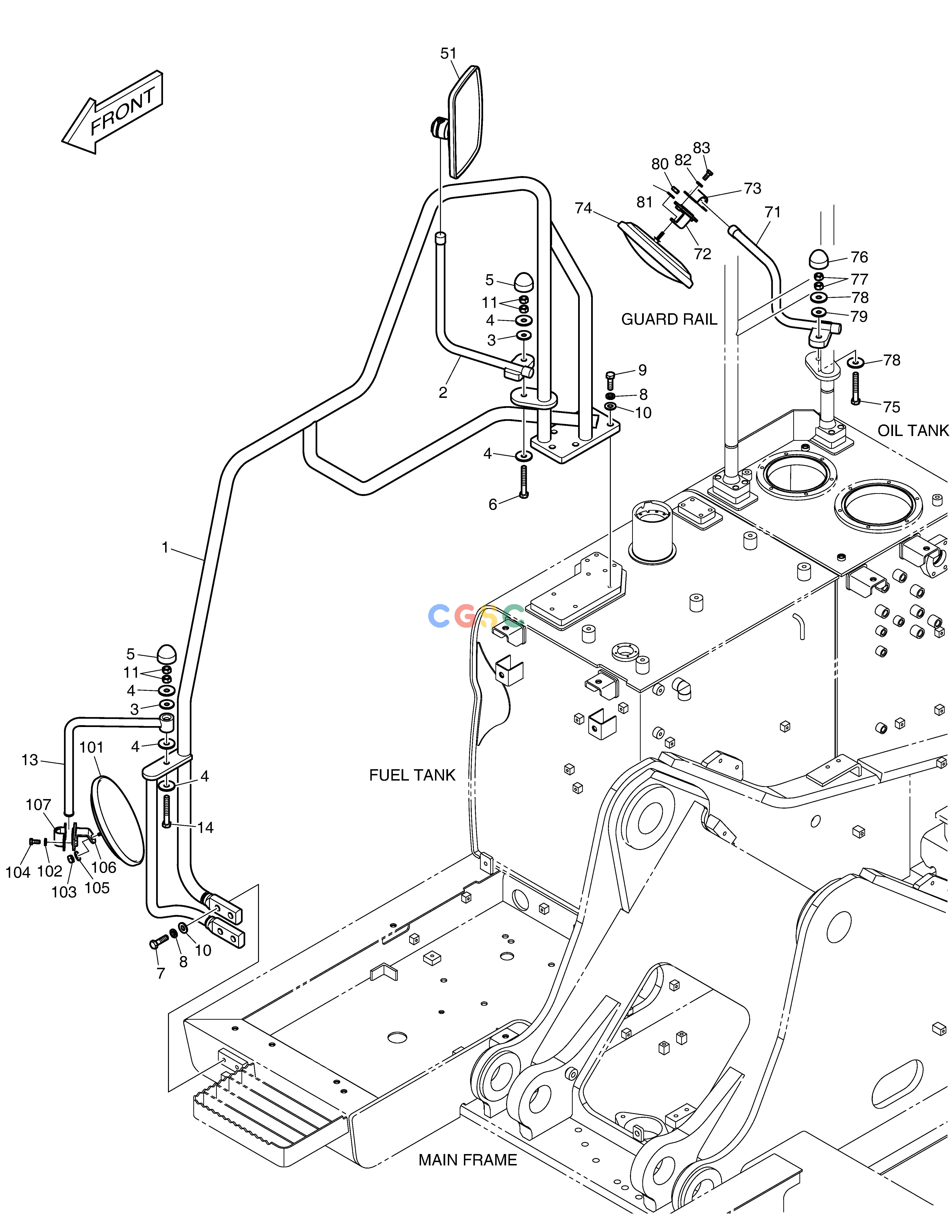

斗山零件查询HANDRAIL DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
716 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
101582-00468
|
[-] |
|
|
| 1. |
101582-00632
|
[1] |
|
|
| 10. |
DS0401239
|
[9] |
|
|
| 101. |
110969-00075
|
[1] |
|
|
| 102. |
2114-1898D2
|
[2] |
WASHER
|
|
| 103. |
2121-1311D4
|
[1] |
NUT
|
|
| 104. |
2120-2166D5
|
[2] |
BOLT
|
|
| 105. |
2114-1898D1
|
[1] |
WASHER
|
|
| 106. |
110406-03543
|
[1] |
|
|
| 107. |
250201-00240
|
[1] |
|
|
| 11. |
S4012733
|
[4] |
NUT
|
|
| 13. |
101582-00637
|
[1] |
|
|
| 14. |
S0561466
|
[1] |
BOLT
|
|
| 2. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 3. |
2114-1058D54
|
[2] |
WASHER
|
|
| 4. |
2114-1058D68
|
[5] |
WASHER
|
|
| 5. |
161-00580
|
[2] |
CAP,RUBBER
|
|
| 51. |
K1040606
|
[1] |
MIRROR,SIDE
|
|
| 6. |
S0561066
|
[1] |
BOLT
|
|
| 7. |
S0560666
|
[4] |
BOLT
|
|
| 71. |
101582-00633A
|
[1] |
|
|
| 72. |
110406-00354
|
[1] |
|
|
| 73. |
250201-00240
|
[1] |
|
|
| 74. |
K1041643
|
[1] |
MIRROR
|
|
| 75. |
S0561066
|
[1] |
BOLT
|
|
| 76. |
161-00580
|
[1] |
CAP,RUBBER
|
|
| 77. |
S4012733
|
[2] |
NUT
|
|
| 78. |
2114-1058D68
|
[2] |
WASHER
|
|
| 79. |
2114-1058D54
|
[1] |
WASHER
|
|
| 8. |
S5102705
|
[9] |
WASHER,SPRING
|
|
| 80. |
S4012633
|
[1] |
NUT
|
|
| 81. |
S5010613
|
[1] |
WASHER
|
|
| 82. |
2114-1898D2
|
[2] |
WASHER
|
|
| 83. |
2120-2166D5
|
[2] |
BOLT
|
|
| 9. |
S0560566
|
[5] |
BOLT
|
|
