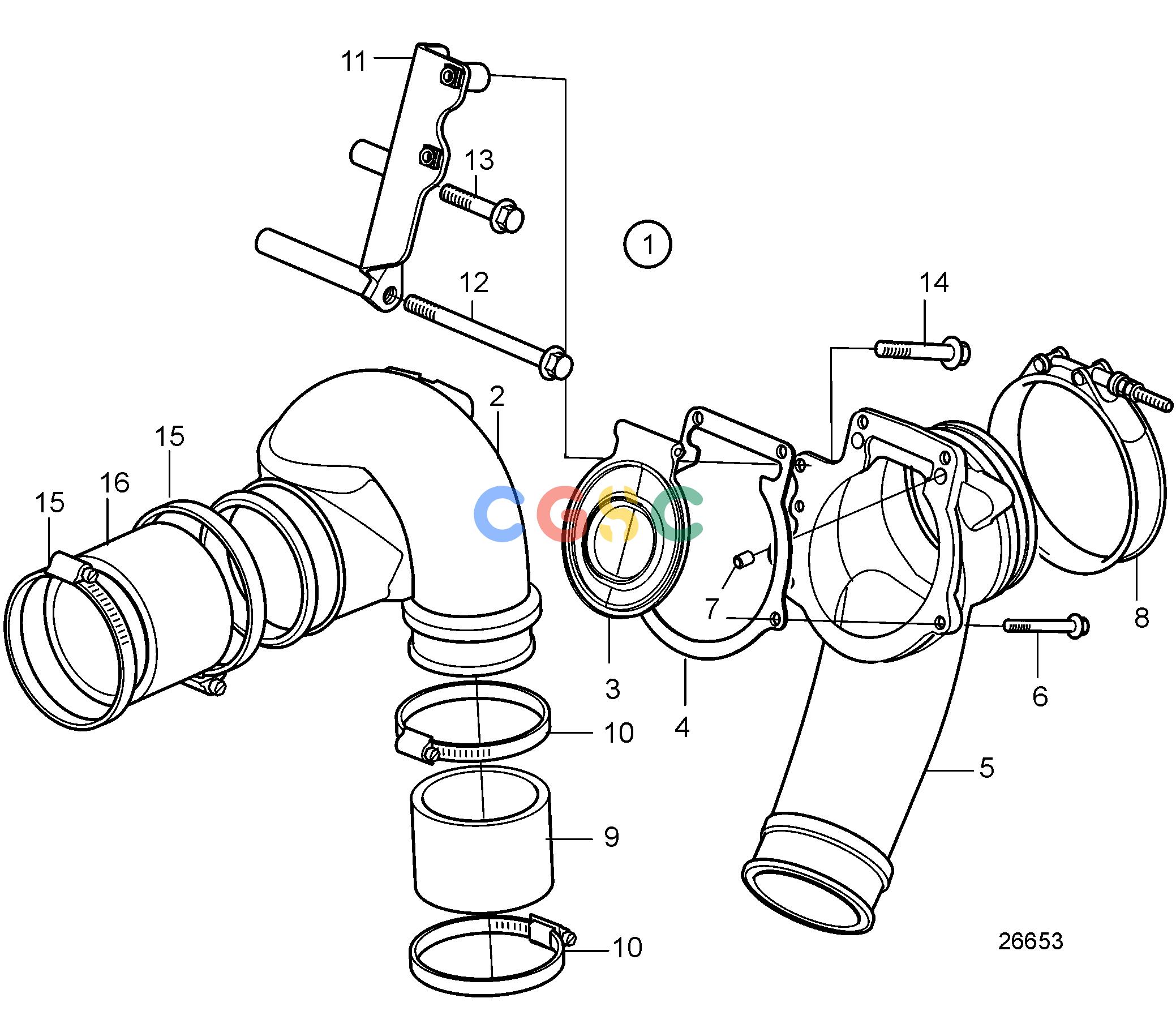

沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemAir Valve, Compressor. IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22067254
|
[1] |
Air valve
|
|
| 2. |
|
|
|
|
| 3. |
22067293
|
[1] |
Air shutter
|
|
| 4. |
22067303
|
[1] |
Gasket
|
|
| 5. |
|
|
|
|
| 6. |
984728
|
[4] |
Flange screw
|
|
| 7. |
22066542
|
[2] |
Bushing
|
|
| 8. |
1544735
|
[2] |
Hose clamp
|
|
| 9. |
21832376
|
[1] |
Hose
|
|
| 10. |
996675
|
[2] |
Hose clamp
|
|
| 11. |
21634277
|
[1] |
Bracket
|
SN-70110328093
|
| 11. |
22124095
|
[1] |
Bracket
|
SN70110328094-
|
| 12. |
984767
|
[1] |
Flange screw
|
|
| 13. |
994395
|
[1] |
Flange screw
|
|
| 14. |
965216
|
[2] |
Flange screw
|
|
| 15. |
996675
|
[2] |
Hose clamp
|
|
| 16. |
21645011
|
[1] |
Hose
|
|
