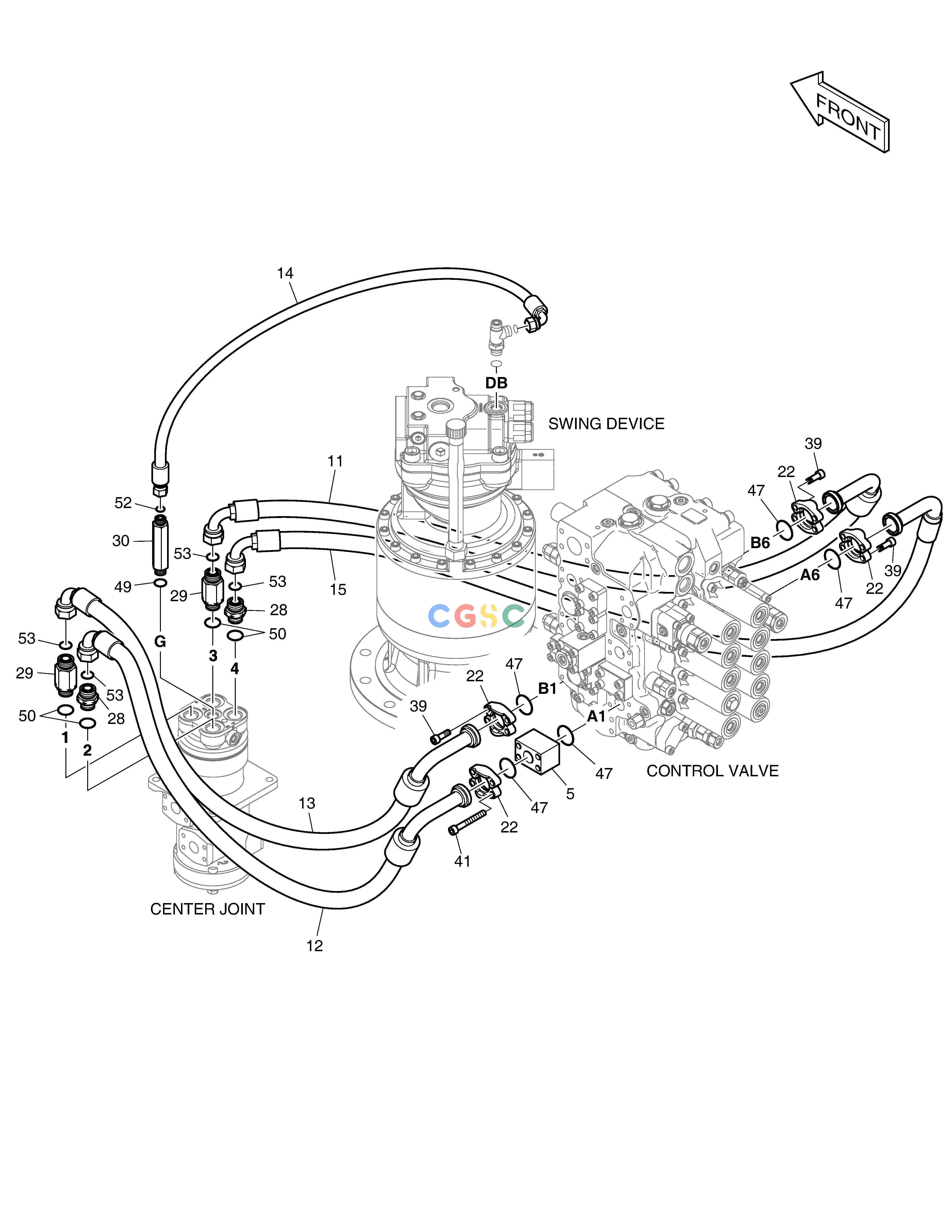

斗山零件查询MAIN PIPING(5) - CENTER JOINT DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
231 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09194
|
[-] |
|
|
| 11. |
DS2026178
|
[1] |
HOSE
|
|
| 11. |
DS2026522
|
[1] |
|
|
| 12. |
DS2026182
|
[1] |
HOSE
|
|
| 13. |
DS2026398
|
[1] |
|
|
| 14. |
DS20131520
|
[1] |
|
|
| 15. |
DS2026192
|
[1] |
HOSE
|
|
| 22. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 28. |
2181-2627D1
|
[2] |
ADAPTER
|
|
| 29. |
2181-2627D3
|
[2] |
ADAPTER
|
|
| 30. |
DS2232175
|
[1] |
ADAPTER
|
|
| 39. |
S2212266
|
[12] |
BOLT
|
|
| 41. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 47. |
DS2856003
|
[5] |
O-RING
|
|
| 49. |
S8000181
|
[1] |
O-RING
|
|
| 5. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 50. |
S8000231
|
[4] |
O-RING
|
|
| 52. |
S8030081
|
[1] |
O-RING
|
|
| 53. |
S8030121
|
[4] |
O-RING
|
|
