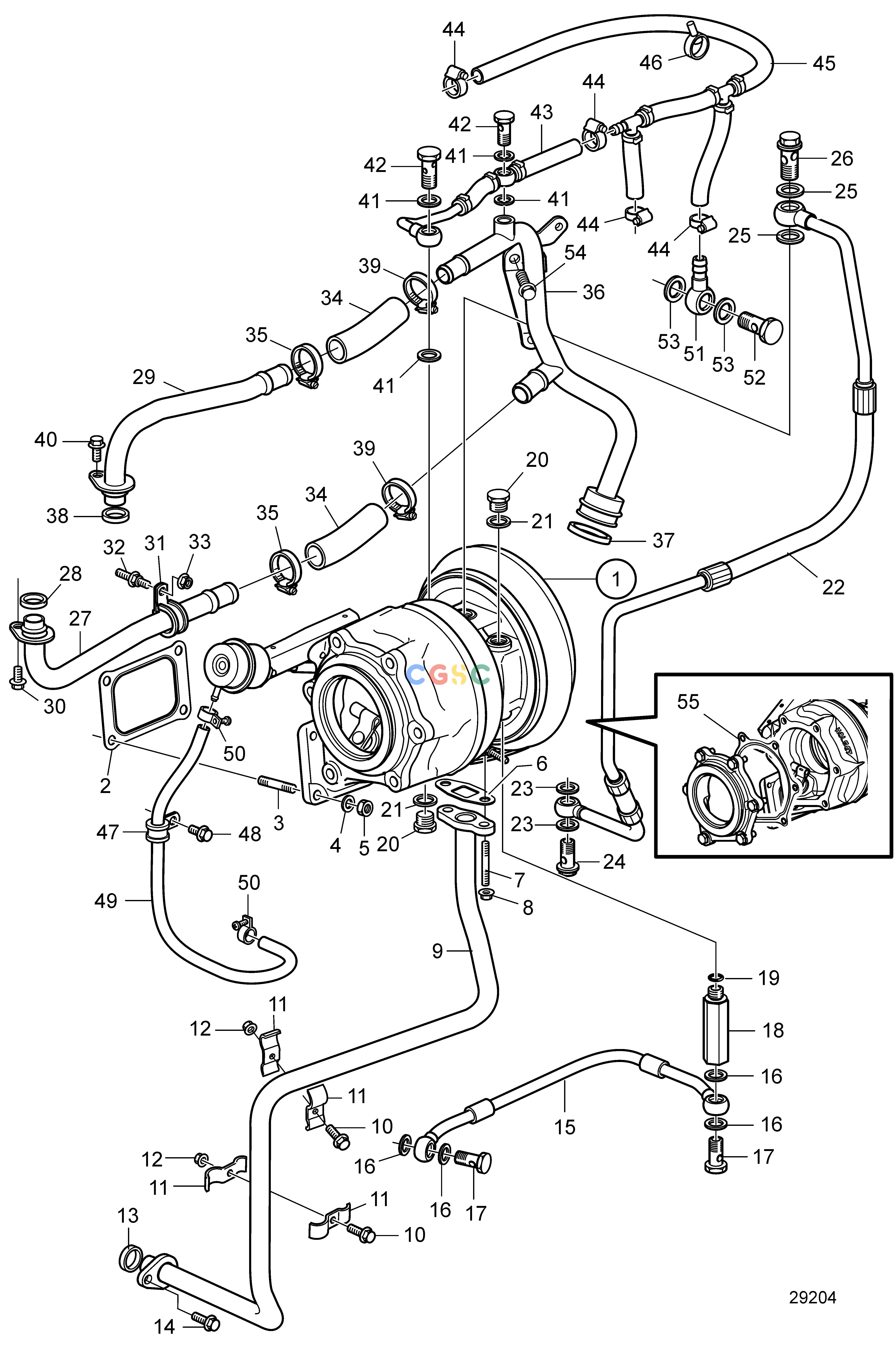

沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemTurbocharger SN-7011413671EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801526
|
[1] |
Turbocharger, exch
|
|
| 2. |
20784537
|
[1] |
Plane gasket
|
|
| 3. |
924081
|
[4] |
Stud
|
|
| 4. |
955895
|
[4] |
Washer
|
|
| 5. |
1543499
|
[4] |
Flange nut
|
|
| 6. |
20707685
|
[1] |
Plane gasket
|
|
| 7. |
924060
|
[2] |
Stud
|
|
| 8. |
990940
|
[1] |
Flange nut
|
|
| 9. |
21982091
|
[2] |
Oil line
|
|
| 10. |
984727
|
[2] |
Flange screw
|
|
| 11. |
820851
|
[4] |
Clamp
|
|
| 12. |
990939
|
[2] |
Flange nut
|
|
| 13. |
1547255
|
[1] |
Sealing ring
|
|
| 14. |
984734
|
[1] |
Flange screw
|
|
| 15. |
3887861
|
[1] |
Coolant pipe
|
|
| 16. |
11996
|
[4] |
Gasket
|
|
| 17. |
941686
|
[2] |
Hollow screw
|
|
| 18. |
21621181
|
[1] |
Nipple
|
|
| 19. |
968559
|
[1] |
O-ring
|
|
| 20. |
960631
|
[2] |
Plug
|
|
| 21. |
11996
|
[2] |
Gasket
|
|
| 22. |
21982088
|
[1] |
Oil line
|
Replaced by 23084957
|
| 22. |
23084957
|
[1] |
Oil line
|
|
| 23. |
11996
|
[2] |
Gasket
|
|
| 24. |
941686
|
[1] |
Hollow screw
|
|
| 25. |
11998
|
[2] |
Gasket
|
|
| 26. |
996505
|
[1] |
Hollow screw
|
|
| 27. |
21683478
|
[1] |
Coolant pipe
|
|
| 28. |
1547252
|
[1] |
Sealing ring
|
|
| 29. |
21817370
|
[1] |
Coolant pipe
|
|
| 30. |
984733
|
[1] |
Flange screw
|
|
| 31. |
947827
|
[1] |
Clamp
|
|
| 32. |
20714050
|
[1] |
Flange screw
|
|
| 33. |
990940
|
[2] |
Flange nut
|
|
| 34. |
969033
|
[2] |
Rubber hose
|
|
| 35. |
961664
|
[2] |
Hose clamp
|
|
| 36. |
21814083
|
[1] |
Coolant pipe
|
|
| 37. |
1547253
|
[1] |
Sealing ring
|
|
| 38. |
1547252
|
[1] |
Sealing ring
|
|
| 39. |
961664
|
[2] |
Hose clamp
|
|
| 40. |
984733
|
[1] |
Flange screw
|
|
| 41. |
11996
|
[4] |
Gasket
|
|
| 42. |
941686
|
[2] |
Hollow screw
|
|
| 43. |
21621721
|
[1] |
Pipe set
|
|
| 44. |
961663
|
[4] |
Hose clamp
|
|
| 45. |
3594055
|
[1] |
Hose assembly
|
|
| 46. |
980881
|
[2] |
Cable tie
|
|
| 47. |
990178
|
[1] |
Attaching clamp
|
|
| 48. |
984733
|
[1] |
Flange screw
|
|
| 49. |
22377198
|
[1] |
Hose
|
|
| 50. |
975269
|
[2] |
Hose clamp
|
|
| 51. |
20459906
|
[1] |
Banjo nipple
|
|
| 52. |
991048
|
[1] |
Hollow screw
|
|
| 53. |
982723
|
[2] |
Gasket
|
|
| 54. |
984751
|
[2] |
Flange screw
|
Included in Turbocharger
|
| 55. |
23029715
|
[1] |
Gasket
|
|
