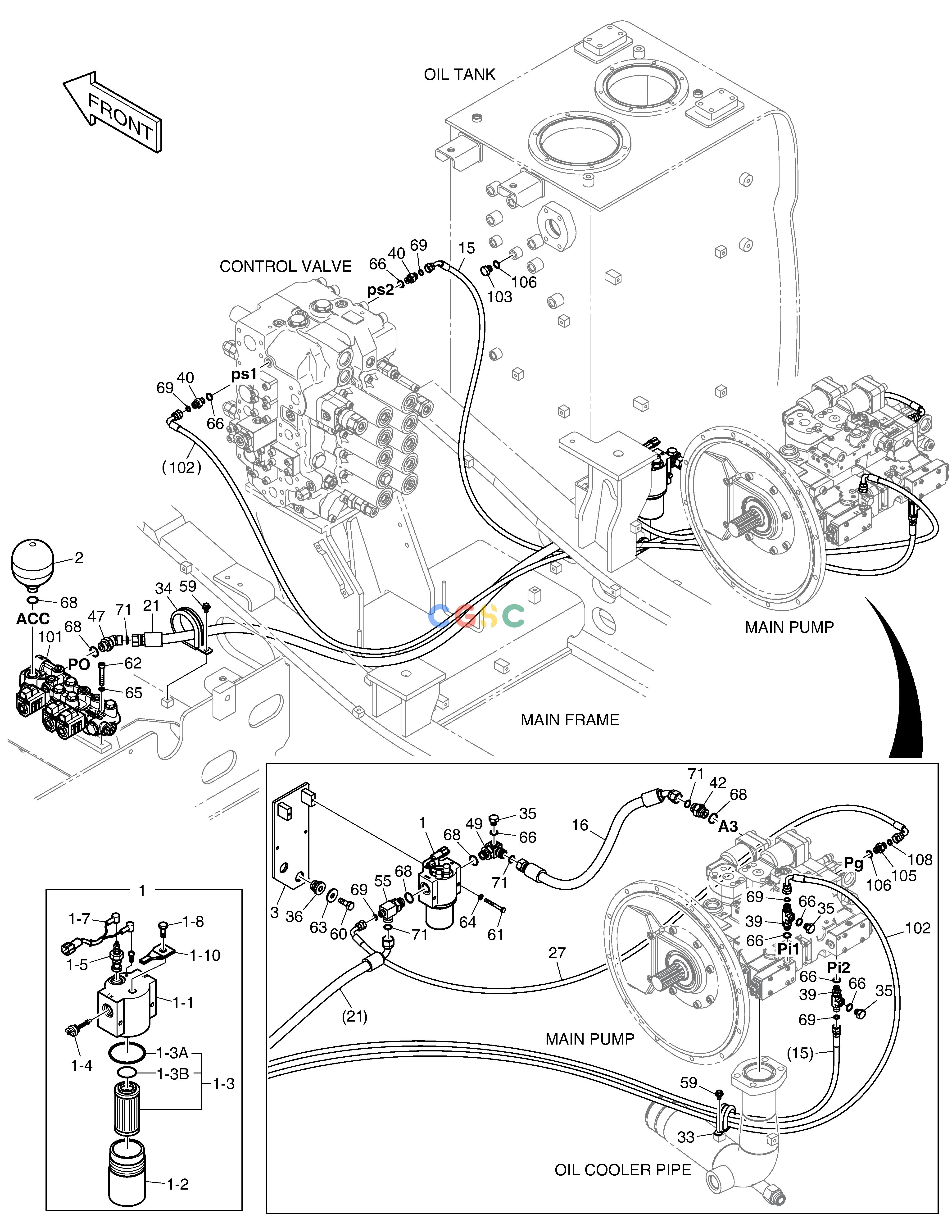

斗山零件查询PILOT PIPING(1) - PUMP DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
424 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09226
|
[-] |
|
|
| 1. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 1-1. |
NA00509
|
[1] |
. HEAD
|
|
| 1-10. |
2197-1661
|
[1] |
BRACKET
|
|
| 1-2. |
110913-00333
|
[1] |
|
|
| 1-3. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 1-3A. |
401002-01472
|
[1] |
. O-RING
|
|
| 1-3B. |
401002-01473
|
[1] |
. O-RING
|
|
| 1-4. |
410128-00073
|
[1] |
|
|
| 1-5. |
800217-00115
|
[1] |
|
|
| 1-7. |
310207-03984
|
[1] |
|
|
| 1-8. |
S0508653
|
[1] |
BOLT
|
|
| 101. |
410135-00237A
|
[1] |
|
|
| 102. |
DS2123183
|
[1] |
|
|
| 103. |
2181-1950D1
|
[1] |
PLUG
|
|
| 105. |
DS2304009
|
[1] |
ELBOW
|
|
| 106. |
S8000111
|
[2] |
O-RING
|
|
| 108. |
S8030041
|
[1] |
O-RING
|
|
| 15. |
DS2120152
|
[1] |
|
|
| 16. |
DS20121156
|
[1] |
|
|
| 2. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 21. |
DS2013349
|
[1] |
HOSE 13/16-16UN-1530L
|
|
| 27. |
DS2123209
|
[1] |
|
|
| 3. |
110413-00164A
|
[1] |
|
|
| 33. |
124-00208D6
|
[1] |
CLIP
|
|
| 34. |
124-00208D8
|
[1] |
CLIP
|
|
| 35. |
2181-1950D1
|
[3] |
PLUG
|
|
| 36. |
198-00016
|
[2] |
RUBBER
|
|
| 39. |
430201-00129
|
[2] |
ADAPTER
|
|
| 40. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 42. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 47. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 49. |
DS2517003
|
[1] |
|
|
| 55. |
DS2412015
|
[1] |
TEE
|
|
| 59. |
K1001029
|
[2] |
BOLT
|
|
| 60. |
S0512266
|
[2] |
BOLT
|
|
| 61. |
S0553766
|
[2] |
BOLT
|
|
| 62. |
S2209666
|
[2] |
BOLT
|
|
| 63. |
2114-1058D10
|
[2] |
WASHER
|
|
| 64. |
S5102303
|
[2] |
. WASHER
|
|
| 65. |
S5110503
|
[2] |
WASHER
|
|
| 66. |
S8000111
|
[7] |
O-RING
|
|
| 68. |
S8000181
|
[5] |
O-RING
|
|
| 69. |
S8030041
|
[5] |
O-RING
|
|
| 71. |
S8030081
|
[4] |
O-RING
|
|
