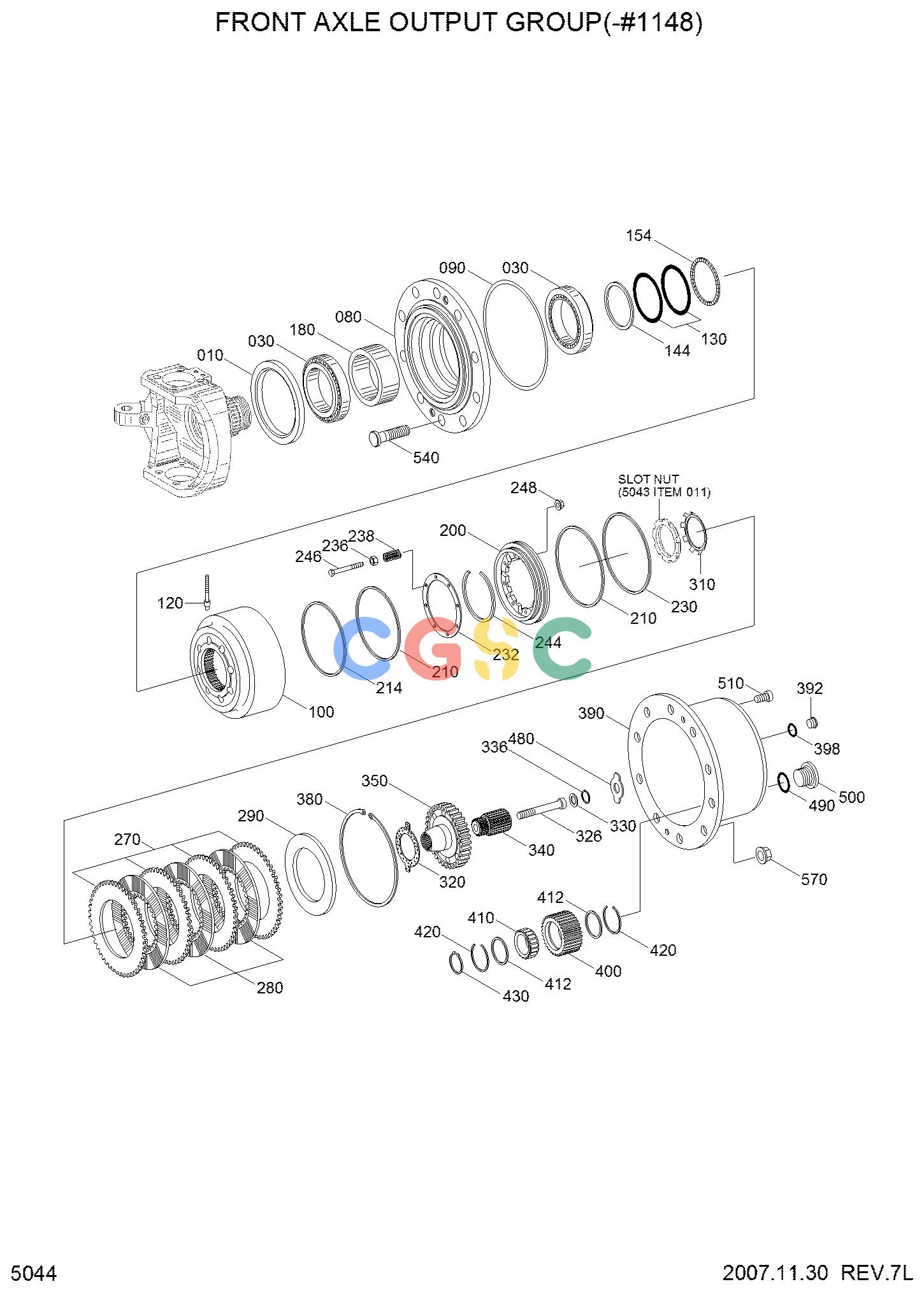

现代零件查询R200W-7 FRONT AXLE OUTPUT GROUP(-#1148)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[2] |
AXLE-FRONT
|
|
| 010. |
ZGAQ-01266
|
[2] |
SEAL-SHAFT
|
|
| 030. |
ZGAQ-01267
|
[4] |
BEARING-ROLLER
|
|
| 080. |
ZGAQ-01268
|
[2] |
HUB
|
|
| 090. |
ZGAQ-01269
|
[2] |
O-RING
|
|
| 100. |
ZGAQ-01270
|
[2] |
GEAR-RING
|
|
| 120. |
ZGAQ-01271
|
[4] |
PLUG
|
|
| 130. |
ZGAQ-01272
|
[4] |
O-RING
|
|
| 144. |
ZGAQ-01273
|
[2] |
RING-SUPPORT
|
|
| 154. |
ZGAQ-01274
|
[2] |
RING-SUPPORT
|
|
| 180. |
ZGAQ-01281
|
[2] |
BUSHING(26.38)
|
|
| 180. |
ZGAQ-01282
|
[2] |
BUSHING(26.41)
|
|
| 180. |
ZGAQ-01283
|
[2] |
BUSHING(26.44)
|
|
| 180. |
ZGAQ-01284
|
[2] |
BUSHING(26.47)
|
|
| 180. |
ZGAQ-01285
|
[2] |
BUSHING(26.50)
|
|
| 180. |
ZGAQ-01275
|
[2] |
BUSHING(26.8)
|
|
| 180. |
ZGAQ-01276
|
[2] |
BUSHING(26.23)
|
|
| 180. |
ZGAQ-01277
|
[2] |
BUSHING(26.26)
|
|
| 180. |
ZGAQ-01278
|
[2] |
BUSHING(26.29)
|
|
| 180. |
ZGAQ-01279
|
[2] |
BUSHING(26.32)
|
|
| 180. |
ZGAQ-01280
|
[2] |
BUSHING(26.35)
|
|
| 200. |
ZGAQ-01286
|
[2] |
PISTON
|
|
| 210. |
ZGAQ-01287
|
[4] |
U-RING
|
|
| 214. |
ZGAQ-01288
|
[2] |
RING-SUPPORT
|
|
| 230. |
ZGAQ-01289
|
[2] |
RING-SUPPORT
|
|
| 232. |
ZGAQ-01290
|
[2] |
SHIM-SUPPORT
|
|
| 236. |
ZGAQ-01291
|
[16] |
SLEEVE-SPRING
|
|
| 238. |
ZGAQ-01292
|
[16] |
SPRING-COMPRESSURE
|
|
| 244. |
ZGAQ-01293
|
[2] |
RING-SNAP
|
|
| 246. |
ZGAQ-01294
|
[16] |
SCREW-HEX
|
|
| 248. |
ZGAQ-01295
|
[16] |
NUT-LOCKING
|
|
| 270. |
ZGAQ-01298
|
[8] |
DISC-O/CLUTCH(2.0)
|
|
| 270. |
ZGAQ-01296
|
[8] |
DISC-O/CLUTCH(2.5)
|
|
| 270. |
ZGAQ-01297
|
[8] |
DISC-O/CLUTCH(3.0)
|
|
| 280. |
ZGAQ-01299
|
[6] |
DISC-I/CLUTCH
|
|
| 290. |
ZGAQ-01300
|
[2] |
SHIM-END(9.5)
|
|
| 310. |
ZGAQ-01301
|
[2] |
WASHER-TAB
|
|
| 320. |
ZGAQ-01302
|
[2] |
WASHER-THRUST
|
|
| 326. |
ZGAQ-01318
|
[2] |
SCREW-CAP
|
|
| 330. |
ZGAQ-01319
|
[2] |
RING-SHIM
|
|
| 336. |
ZGAQ-01320
|
[2] |
RING-RETAINING
|
|
| 340. |
ZGAQ-01321
|
[2] |
SHAFT-SUN GEAR
|
|
| 350. |
ZGAQ-01303
|
[2] |
CARRIER-DISC
|
|
| 380. |
ZGAQ-01304
|
[2] |
RING-RETAINING
|
|
| 390. |
ZGAQ-01305
|
[2] |
CARRIER-PLANET
|
|
| 392. |
ZGAQ-00098
|
[2] |
PLUG-SCREW
|
|
| 398. |
ZGAQ-00099
|
[2] |
O-RING
|
|
| 400. |
ZGAQ-01306
|
[6] |
GEAR-PLANET
|
|
| 410. |
ZGAQ-01307
|
[6] |
BEARING-ROLLER
|
|
| 412. |
ZGAQ-01308
|
[12] |
WASHER
|
|
| 420. |
ZGAQ-01309
|
[12] |
RING-SNAP
|
|
| 430. |
ZGAQ-01310
|
[6] |
RING-RETAINING
|
|
| 480. |
ZGAQ-01311
|
[2] |
WASHER-THRUST(1.5)
|
|
| 480. |
ZGAQ-01312
|
[2] |
WASHER-THRUST(1.7)
|
|
| 480. |
ZGAQ-01313
|
[2] |
WASHER-THRUST(2.0)
|
|
| 480. |
ZGAQ-01314
|
[2] |
WASHER-THRUST(2.2)
|
|
| 480. |
ZGAQ-01315
|
[2] |
WASHER-THRUST(2.5)
|
|
| 480. |
ZGAQ-01316
|
[2] |
WASHER-THRUST(2.7)
|
|
| 480. |
ZGAQ-01317
|
[2] |
WASHER-THRUST(3.0)
|
|
| 490. |
ZGAQ-01212
|
[2] |
O-RING
|
|
| 500. |
ZGAQ-00081
|
[2] |
PLUG-SCREW
|
|
| 510. |
ZGAQ-01322
|
[4] |
SCREW-CAP
|
|
| 540. |
ZGAQ-01323
|
[20] |
BOLT-WHEEL
|
|
| 570. |
ZGAQ-00161
|
[20] |
NUT-WHEEL
|
|
