沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemWet Exhaust Pipe Elbow with RiserEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1001 次

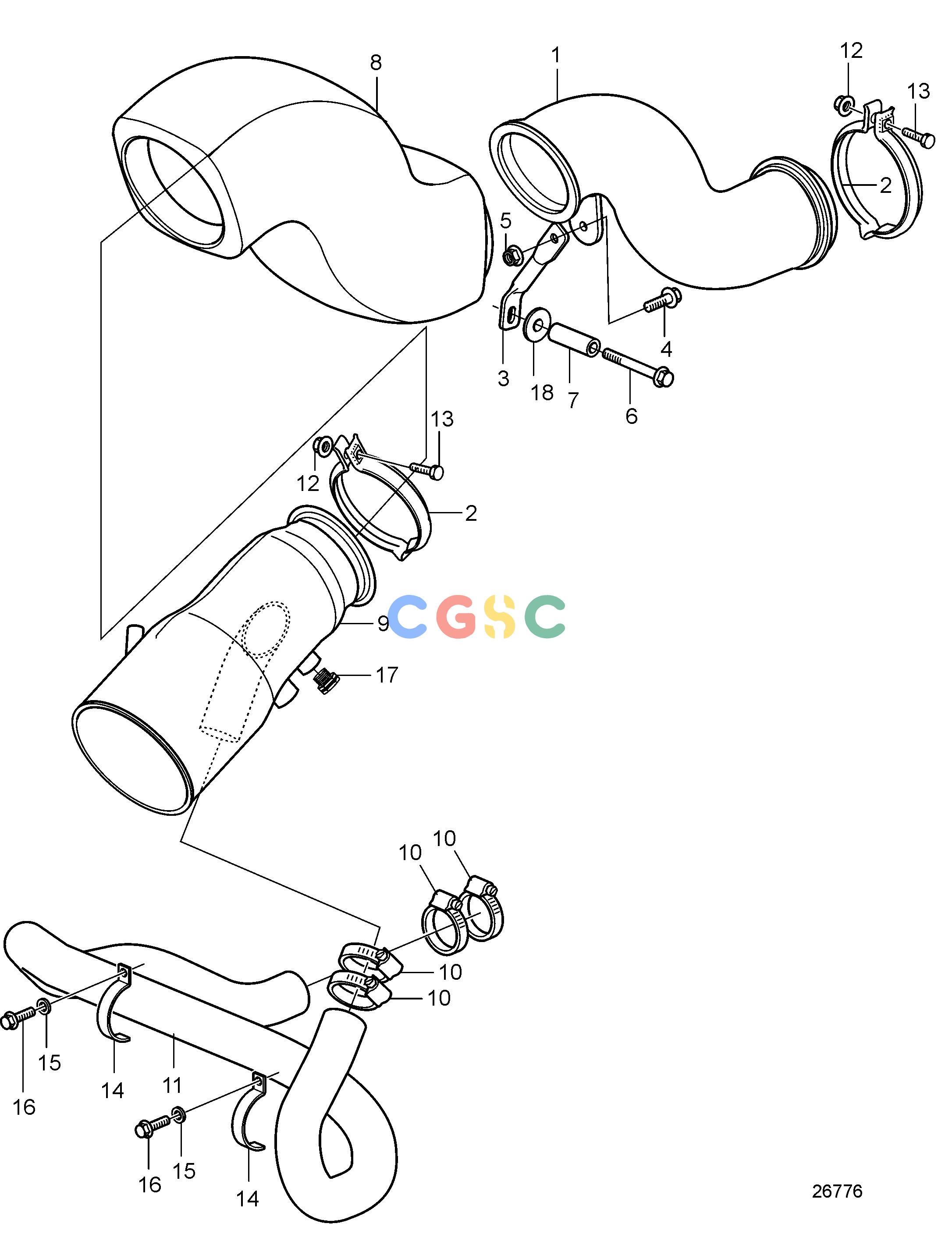

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21699972
|
[1] |
Exhaust riser
|
|
| 2. |
21211715
|
[1] |
V-clamp
|
|
| 3. |
22174112
|
[1] |
Stay
|
|
| 4. |
969445
|
[1] |
Flange screw
|
|
| 5. |
990951
|
[2] |
Flange lock nut
|
|
| 6. |
975103
|
[1] |
Flange screw
|
|
| 7. |
3830771
|
[1] |
Spacer sleeve
|
|
| 8. |
3818149
|
[1] |
Exhaust pipe protect
|
|
| 9. |
22066708
|
[1] |
Exhaust pipe
|
|
| 10. |
961672
|
[4] |
Hose clamp
|
|
| 11. |
40005350
|
[1] |
Hose
|
|
| 12. |
994441
|
[2] |
Flange screw
|
|
| 13. |
990950
|
[2] |
Flange lock nut
|
|
| 14. |
948560
|
[2] |
Clamp
|
|
| 15. |
960142
|
[2] |
Washer
|
|
| 16. |
984725
|
[2] |
Flange screw
|
|
| 17. |
981749
|
[1] |
Plug
|
|
| 18. |
960142
|
[1] |
Washer
|
|
