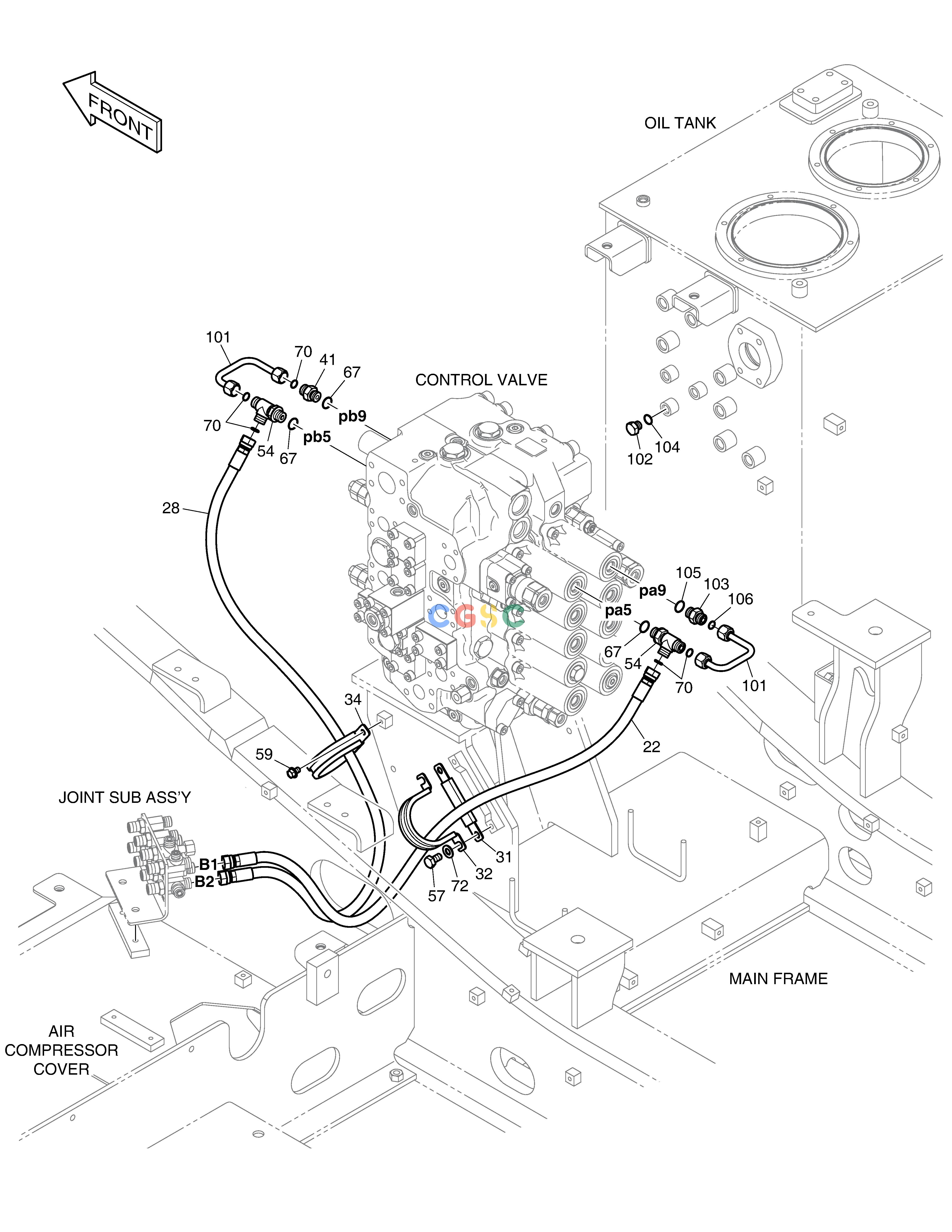

斗山零件查询PILOT PIPING(3) - ARM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
670 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09226
|
[-] |
|
|
| 101. |
920403-00071
|
[2] |
|
|
| 102. |
2181-1950D1
|
[1] |
PLUG
|
|
| 103. |
DS2232038
|
[1] |
ADAPTER
|
|
| 104. |
S8000111
|
[1] |
O-RING
|
|
| 105. |
S8000141
|
[1] |
O-RING
|
|
| 106. |
S8030061
|
[1] |
O-RING
|
|
| 22. |
DS2119151
|
[1] |
|
|
| 28. |
DS2119198
|
[1] |
|
|
| 31. |
120202-00055
|
[1] |
|
|
| 32. |
120202-00137
|
[1] |
|
|
| 34. |
124-00208D8
|
[1] |
CLIP
|
|
| 41. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 54. |
DS2412002
|
[2] |
TEE
|
|
| 57. |
S0511866
|
[2] |
BOLT
|
|
| 59. |
K1001029
|
[1] |
BOLT
|
|
| 67. |
S8000141
|
[3] |
O-RING
|
|
| 70. |
S8030061
|
[5] |
O-RING
|
|
| 72. |
120804-00076
|
[2] |
WASHER
|
|
