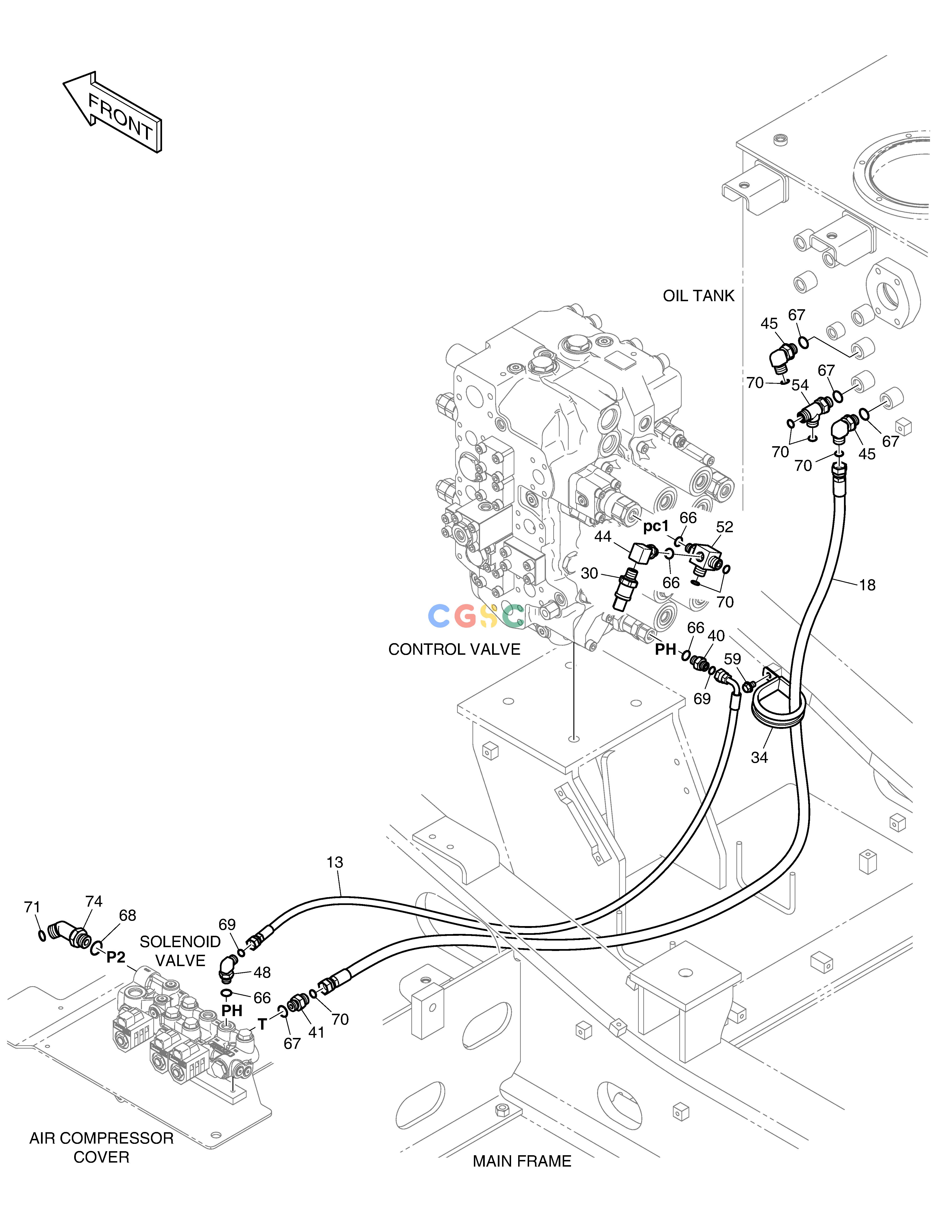

斗山零件查询PILOT PIPING(7) - OTHERS DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09226
|
[-] |
|
|
| 13. |
DS2121236
|
[1] |
|
|
| 18. |
DS2119050
|
[1] |
|
|
| 30. |
K1057340
|
[1] |
SENSOR,PRESSURE
|
|
| 34. |
124-00208D8
|
[1] |
CLIP
|
|
| 40. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 41. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 44. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 45. |
2181-2815D6
|
[2] |
ELBOW
|
|
| 48. |
DS2304009
|
[1] |
ELBOW
|
|
| 52. |
430225-00219
|
[1] |
|
|
| 54. |
DS2412002
|
[1] |
TEE
|
|
| 59. |
K1001029
|
[1] |
BOLT
|
|
| 66. |
S8000111
|
[4] |
O-RING
|
|
| 67. |
S8000141
|
[4] |
O-RING
|
|
| 68. |
S8000181
|
[1] |
O-RING
|
|
| 69. |
S8030041
|
[2] |
O-RING
|
|
| 70. |
S8030061
|
[7] |
O-RING
|
|
| 71. |
S8030081
|
[1] |
O-RING
|
|
| 74. |
DS2338046
|
[1] |
|
|
