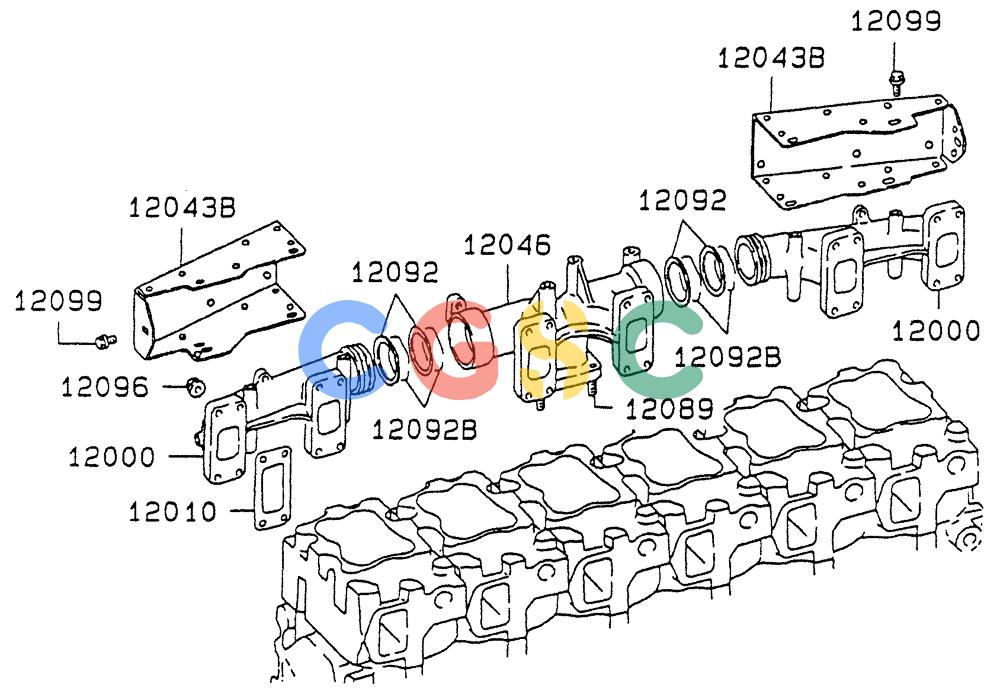

神钢零件查询(6D22-T) - MITSUBISHI DIESL ENGINE - SK EXCAVATORS (1/06-12/06) (05-003) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12000. | VAME053946 | [2] | MANIFOLD | KOBMANIFOLD, EXHAUSTCTR, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 Superseded by part number: VAME152481 |
| 12010. | VAME053112 | [6] | GASKET | KOBGASKET, EXHAUST MANIFOLD, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 Superseded by part number: 134861A1 |
| 12043B. | VAME157197 | [2] | INSULATOR | KOBINSULATOR, EXHAUST MANIFOLD HEAT, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 |
| 12046. | VAME053862 | [1] | EXHAUST MANIFOLD | KOBMANIFOLD, EXHAUST, CTR, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 |
| 12089. | VAMF407728 | [4] | STUD | KOBSTUD, EXHAUST MANIFOLD, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111, 10X30 Superseded by part number: 134865A1 |
| 12092. | VAME053950 | [4] | SEAL | KOBSEAL RIN& EXHAUST MANIFOLD, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 Superseded by part number: 134866A1 |
| 12092B. | VAME053952 | [4] | SEAL | KOBSEAL RING, EXHAUST MANIFOLD, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111 Superseded by part number: 134867A1 |
| 12096. | VAMH004054 | [24] | NUT | KOBEXHAUST MANIFOLD, (9107.1-), 60221, CTYJ1Y000 CTYJ1Y111, SELF LOCKING, FLANGE , 10 Superseded by part number: 134868A1 |
| 12099. | VAMH000392 | [10] | BOLT | KOBBOLT, EXHAUST MANIFOLD, (9107.1-), 6D221 , WASHER ASSEMBLE 0,8X12 |
