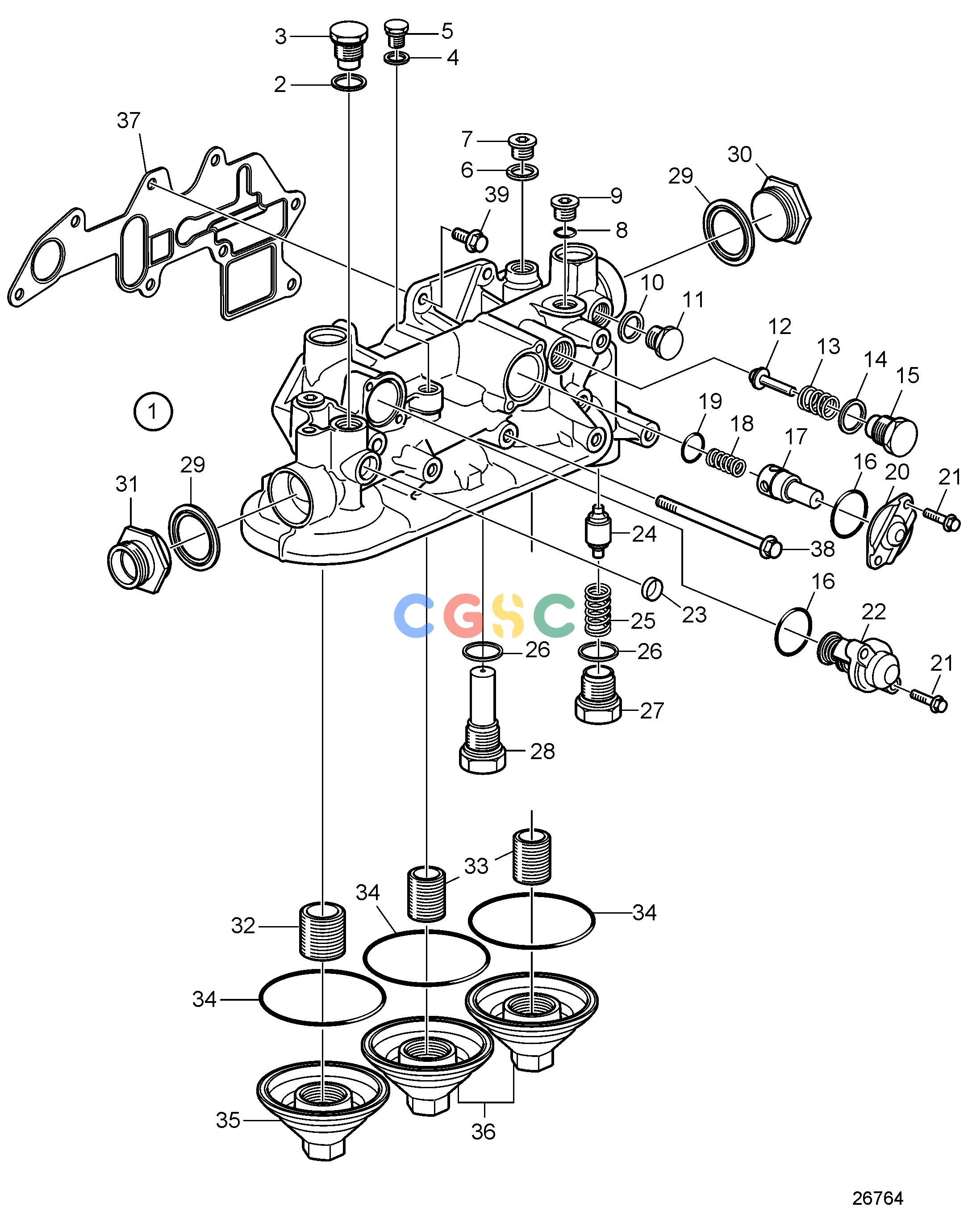

沃尔沃零件查询D11B1-A MP; D11B2-A MPLubricating SystemOil Filter HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886539
|
[1] |
Oil filter housing
|
|
| 2. |
11998
|
[1] |
Gasket
|
|
| 3. |
471598
|
[1] |
Plug
|
|
| 4. |
11994
|
[1] |
Gasket
|
|
| 5. |
960629
|
[1] |
Plug
|
|
| 6. |
947622
|
[1] |
Gasket
|
|
| 7. |
968063
|
[1] |
Plug
|
|
| 8. |
968559
|
[1] |
O-ring
|
|
| 9. |
968609
|
[1] |
Plug
|
|
| 10. |
11998
|
[1] |
Gasket
|
|
| 11. |
960632
|
[1] |
Plug
|
|
| 12. |
471085
|
[1] |
Valve cone, overflow valve
|
|
| 13. |
20581560
|
[1] |
Compression spring
|
|
| 14. |
947627
|
[1] |
Gasket
|
|
| 15. |
471598
|
[1] |
Plug
|
|
| 16. |
949659
|
[2] |
O-ring
|
|
| 17. |
471812
|
[1] |
Reduction valve
|
|
| 18. |
|
|
|
|
| 19. |
469846
|
[1] |
Sealing ring
|
|
| 20. |
471648
|
[1] |
Cover
|
|
| 21. |
984727
|
[4] |
Flange screw
|
|
| 22. |
20903074
|
[1] |
Thermostat
|
|
| 23. |
946778
|
[1] |
Cap plug
|
|
| 24. |
20440779
|
[1] |
Valve cone, piston cooling
|
|
| 25. |
20464676
|
[1] |
Spring
|
|
| 26. |
947629
|
[2] |
Gasket
|
|
| 27. |
3587204
|
[1] |
Plug
|
|
| 28. |
|
|
|
|
| 29. |
982510
|
[2] |
Gasket
|
|
| 30. |
3588439
|
[1] |
Plug
|
|
| 31. |
|
|
|
|
| 32. |
469904
|
[1] |
Nipple
|
|
| 33. |
466623
|
[2] |
Nipple
|
|
| 34. |
993235
|
[3] |
X-ring
|
|
| 35. |
21145974
|
[1] |
Cover
|
|
| 36. |
21145970
|
[2] |
Cover
|
|
| 37. |
20882218
|
[1] |
Gasket
|
|
| 38. |
984746
|
[4] |
Flange screw
|
|
| 39. |
984734
|
[4] |
Flange screw
|
|
