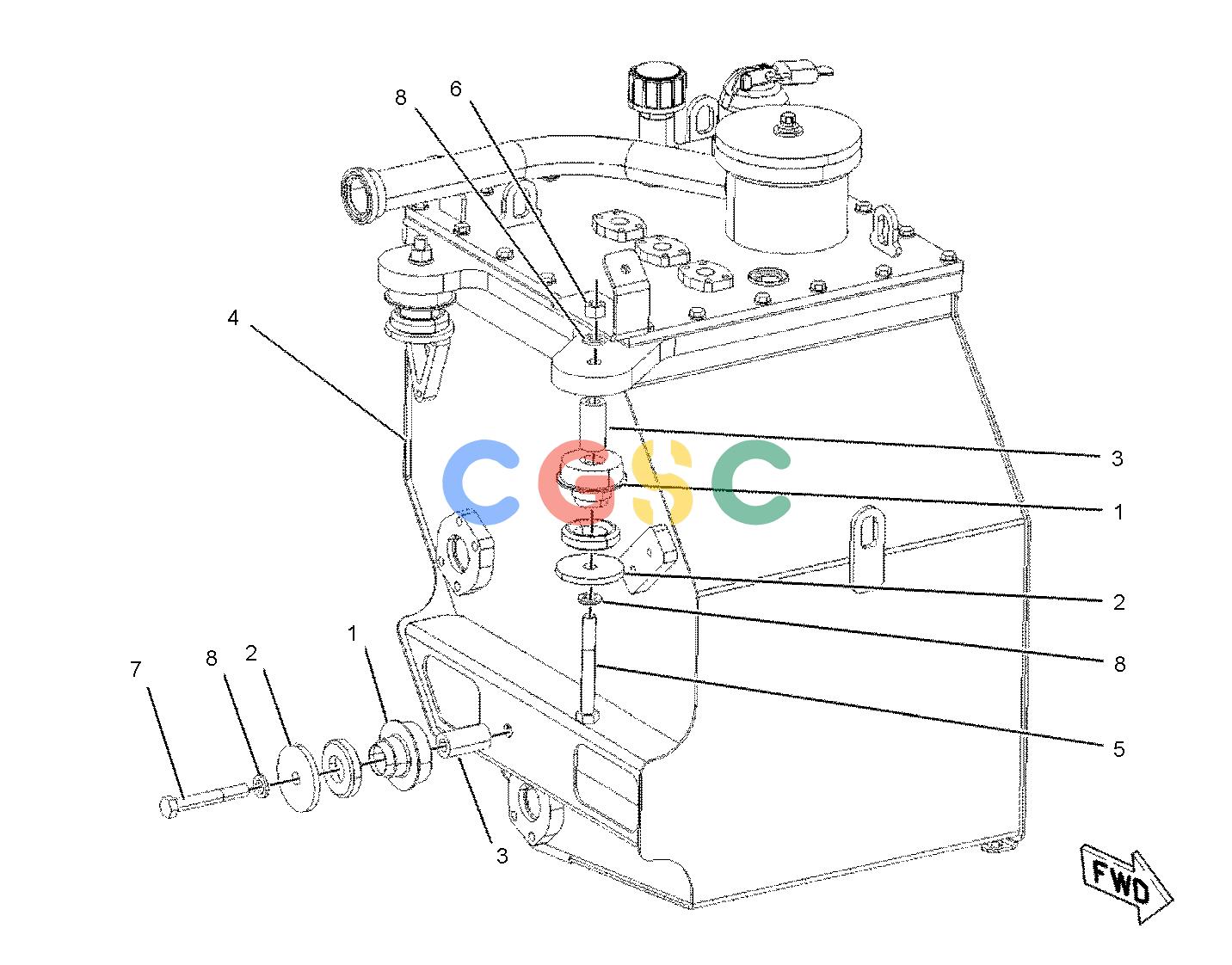

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9W-9915 | [3] | MOUNT AS | |
| 2. | 9W-9952 | [3] | WASHER(16.75X86X8-MM THK) | |
| 3. | 9W-9953 | [3] | SLEEVE | |
| 4. | 170-2396Y | [1] | TANK GP-HYDRAULIC | |
| 5. | 7X-2475M | [2] | BOLT(M16X2X130-MM) | |
| 6. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 7. | 7X-2556M | [1] | BOLT(M16X2X100-MM) | |
| 8. | 9X-8257 | [5] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
