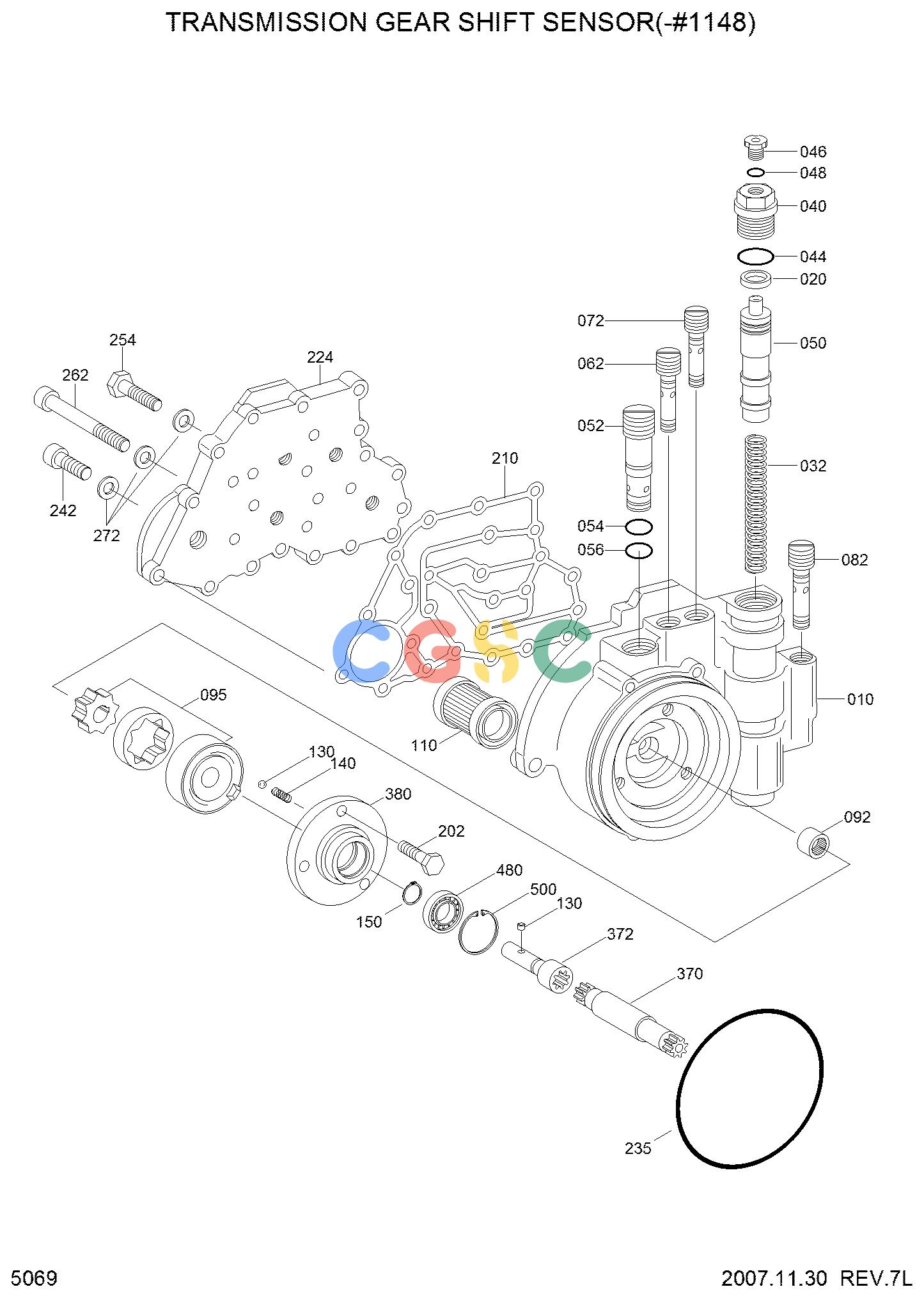

现代零件查询R200W-7 TRANSMISSION GEAR SHIFT SENSOR(-#1148)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRANSMISSION
|
|
| N -1. |
ZGAQ-01047
|
[1] |
GOVERNOR ASSY
|
|
| N010. |
ZGAQ-01048
|
[1] |
HOUSING
|
|
| 020. |
ZGAQ-01049
|
[1] |
GASKET
|
|
| 032. |
ZGAQ-01050
|
[1] |
SPRING-COMPRESSURE
|
|
| 040. |
ZGAQ-01051
|
[1] |
PLUG-SCREW
|
|
| 044. |
ZGAQ-01052
|
[1] |
O-RING
|
|
| 046. |
ZGAQ-00955
|
[1] |
PLUG-SCREW
|
|
| 048. |
ZGAQ-01053
|
[1] |
RING-SEALING
|
|
| 050. |
ZGAQ-01054
|
[1] |
PISTON
|
|
| 052. |
ZGAQ-01055
|
[1] |
VALVE-RELIEF
|
|
| 054. |
ZGAQ-01056
|
[1] |
O-RING
|
|
| 056. |
ZGAQ-01057
|
[1] |
O-RING
|
|
| 062. |
ZGAQ-01058
|
[1] |
VALVE-CHECK
|
|
| 072. |
ZGAQ-01059
|
[1] |
VALVE-CHECK
|
|
| 082. |
ZGAQ-01060
|
[1] |
VALVE-CHECK
|
|
| 092. |
ZGAQ-01061
|
[1] |
SLEEVE-NEEDLE
|
|
| 095. |
ZGAQ-01062
|
[1] |
SET-ROTOR
|
|
| 110. |
ZGAQ-01063
|
[1] |
FILTER-SCREEN
|
|
| 130. |
ZGAQ-01064
|
[4] |
BALL
|
|
| 140. |
ZGAQ-01065
|
[3] |
SPRING-COMPRESSURE
|
|
| 150. |
ZGAQ-01066
|
[1] |
RING-RETAINER
|
|
| 202. |
ZGAQ-01067
|
[3] |
SCREW-HEX
|
|
| 210. |
ZGAQ-01068
|
[1] |
GASKET
|
|
| 224. |
ZGAQ-01069
|
[1] |
COVER
|
|
| 235. |
ZGAQ-01070
|
[1] |
O-RING
|
|
| 242. |
ZGAQ-01071
|
[2] |
SCREW-CAP
|
|
| 254. |
ZGAQ-01072
|
[23] |
SCREW-HEX
|
|
| 262. |
ZGAQ-01073
|
[2] |
SCREW-CAP
|
|
| 272. |
ZGAQ-01074
|
[27] |
WASHER
|
|
| 370. |
ZGAQ-01075
|
[1] |
SHAFT-PUMP
|
|
| 372. |
ZGAQ-01076
|
[1] |
SHAFT-PUMP
|
|
| 380. |
ZGAQ-01077
|
[1] |
COVER-PUMP
|
|
| 480. |
ZGAQ-01078
|
[1] |
BEARING-BALL
|
|
| 500. |
ZGAQ-01079
|
[1] |
RING-RETAINER
|
|
