纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (0.345[01]) - FAN DRIVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
981 次

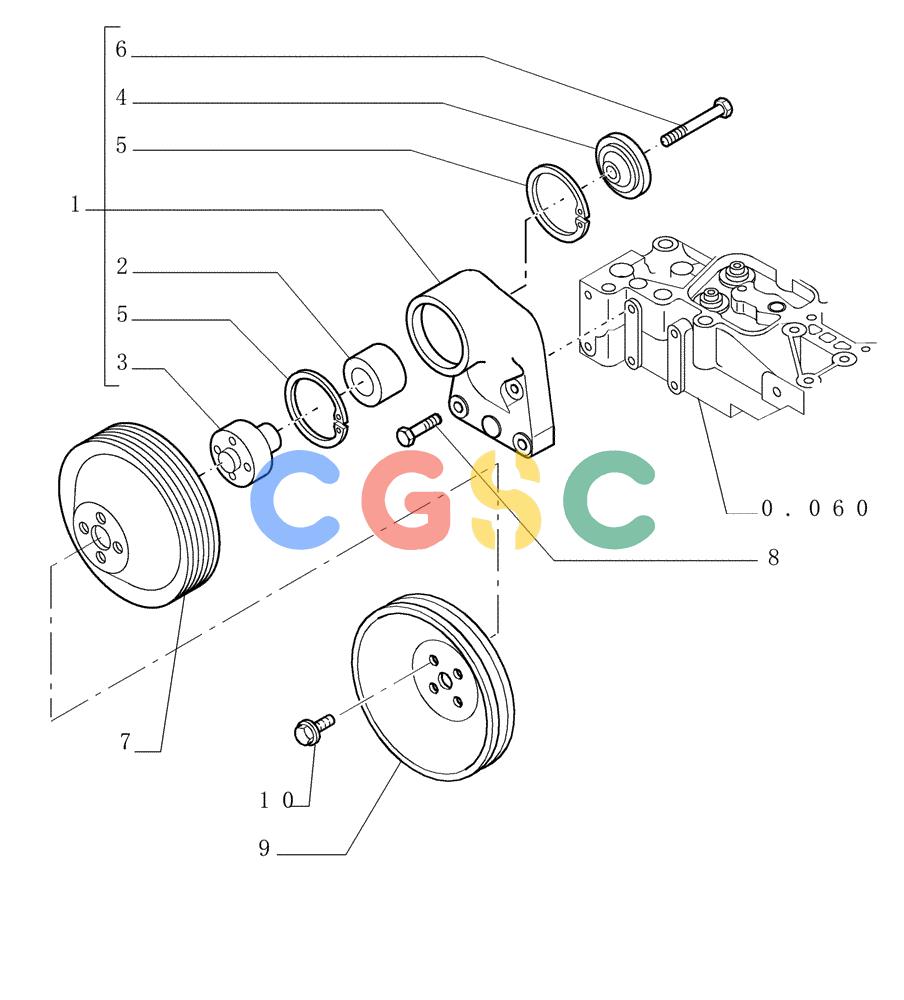

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76193443 | [1] | SUPPORT | LEC- ASSY Superseded by part number: 84585623 |
| 2. | 75208250 | [1] | BEARING ASSY | CMI Superseded by part number: J910739 |
| 3. | 76191389 | [1] | SPACER | LEC Superseded by part number: J911924 |
| 4. | 76192333 | [1] | STOP | LEC Superseded by part number: J923044 |
| 5. | 3035960 | [2] | LOCKING RING | L Superseded by part number: 76191838 |
| 6. | 75208253 | [1] | SCREW | LEC10X1,75X70 Superseded by part number: J907769 |
| 7. | 75286672 | [1] | DRIVEN PULLEY | CMI Superseded by part number: 87739401 |
| 8. | 3928873 | [4] | SCREW,M8 x 1.25 x 40mm | LEC8X1,25X40 Superseded by part number: 75312613 |
| 9. | 75286359 | [1] | PULLEY | LEC Superseded by part number: 84167711 |
| 10. | 75204973 | [4] | SCREW | LEC10X1,5X20 Superseded by part number: 3903990 |
