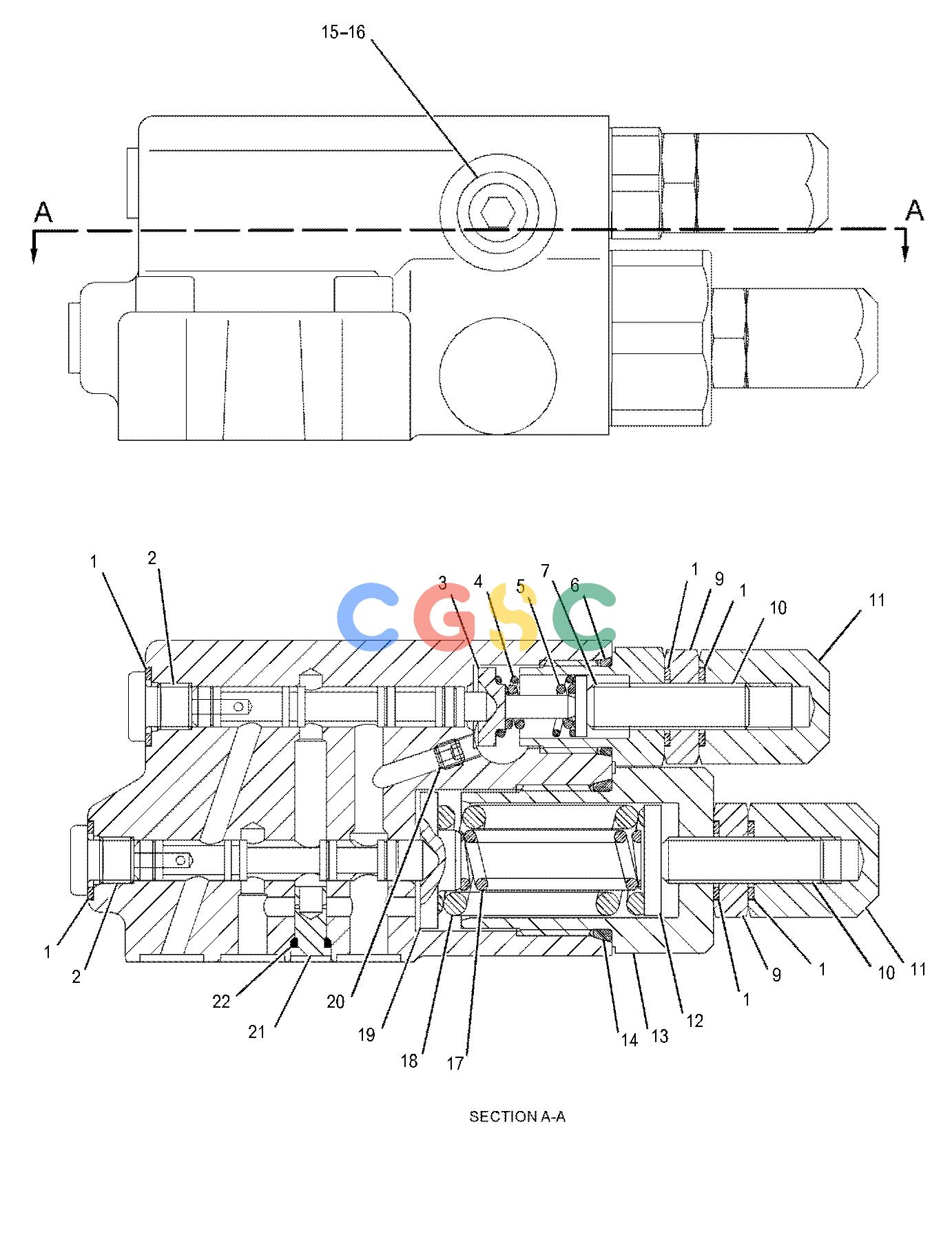

卡特零件查询（725） 193-3182: VALVE GP-PUMP CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6E-6528 | [6] | SEAL | |
| 2. | 6E-6527 | [2] | PLUG | |
| 3. | 6E-3268 | [1] | RETAINER-SPRING | |
| 4. | 6E-3275 | [1] | SPRING | |
| 5. | 6E-3274 | [1] | SPRING | |
| 6. | 033-6043 | [1] | SEAL-O-RING | |
| 7. | 6E-3272 | [1] | SEAT | |
| 9. | 6E-6538M | [2] | NUT-ADJUSTMENT(M8X1-THD) | |
| 10. | 6E-6537M | [2] | SCREW-ADJUSTMENT(M8X1X28-MM) | |
| 11. | 6E-6539M | [2] | NUT-CAP(M8X1-THD) | |
| 12. | 6E-3273 | [1] | SEAT | |
| 13. | 6E-6536 | [1] | PLUG | |
| 14. | 6V-8352 | [1] | SEAL-O-RING | |
| 15. | 9S-8002 | [2] | PLUG(7/16-20-THD) | |
| 16. | 3J-7354 | [2] | SEAL-O-RING | |
| 17. | 193-1036 | [1] | SPRING | |
| 18. | 6E-3276 | [1] | SPRING | |
| 19. | 462-7927 | [1] | COLLAR-SPRING | |
| 20. | 6E-6545 | [1] | PLUG | |
| 21. | 105-2145 | [1] | VALVE-ORIFICE(HYDRAULIC OIL CHECK) | |
| 22. | 5P-9262 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
